Certified pre‑owned HDD rigs with full inspection reports, maintenance history, and warranty options. Cost‑effective entry into premium equipment.
XCMG 20-metric-tonne fully automatic rig, 70 pieces of 60 mm drill pipe, reamer 200-400, pilot bit and swivel. Parameter Item Parameter Type Cummins6BTAA5.9-C150 Rated Power(kW/rpm) 112/2200 Maximum Push-Pull Force(kW/rpm) 225 Push-Pull Speed(kW/rpm) 26 Torque(kW/rpm) 6350 Maximum Spindle Speed(kW/rpm) 160 Maximum Flow Rate(kW/rpm) 250 Maximum Pressure(kW/rpm) 8 Pipe(mm×m) φ60×3 Maximum Inclination Angle(°) 22 Maximum Reamer Diameter(mm) […]
Equipped with 100 drill pipes, reamers 400-900, pilot bits and a swivel. Parameter Item Specification Rated Power (kW/rpm) 221 Maximum Rotary Push/Pull Force (kN) 500–1,000 Rated Pullback Force (kN) 730 Rated Thrust Force (kN) 730 Maximum Thrust Force (kN) 730
Equipped with 90 pieces of 4.5-metre, 89 mm drill pipes, a reamer and a guide drill bit, a swivel. Parameter Item Specification Model XCMG XZ450Plus90 Max Thrust‑Pull Force 450 kN (45 ton) Max Rotary Torque 9000 N·m Spindle Speed 0‑160 rpm, stepless adjustable Push‑Pull Speed 0‑38 m/min Drive Type Rack & Pinion Engine Cummins, 162 […]

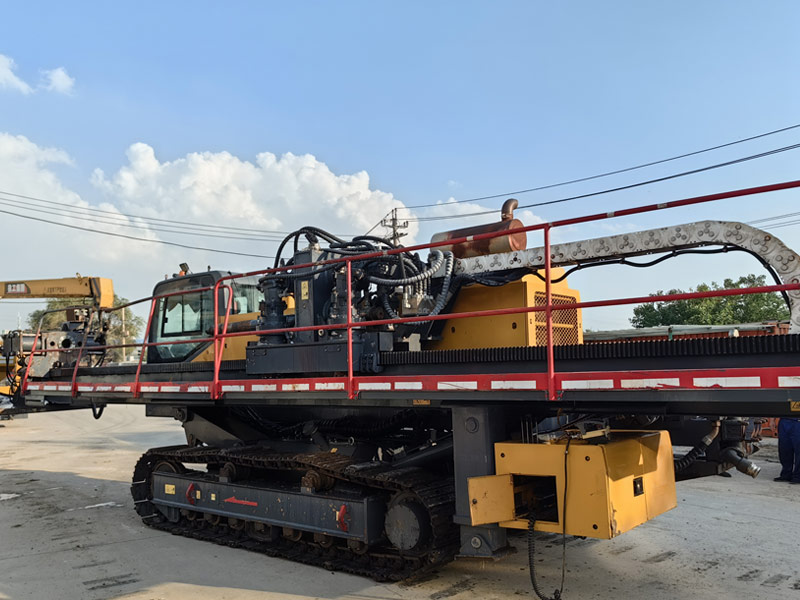

This is a 2019 XCMG XZ680 horizontal directional drill with over 4300 working hours.
This is a 2020 XZ320E hdd rig with 1,750 working hours. It comes with 100 pieces of 76mm drill rods and 2,345 hole openers, drill bits, and swivel as accessories.
Low-hour second-hand XCMG 450plus90 HDD rig manufactured in early 2020. It comes with a complete set of drill strings and reaming accessories. With low wear and stable mechanical performance, this rig is cost-effective and ideal for medium-distance trenchless drilling and municipal engineering projects.
There are two 2022 XCMG 360E HDD rigs. Parameters Item Specification Model XCMG XZ360E Max Thrust‑Pull Force 370 kN (37 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑32 m/min Max Rotary Torque 13 200 N·m Rotation Drive Four‑motor drive Spindle Speed 0‑140 rpm Engine (China‑III) Cummins QSB5.9‑C210，154 kW / 2200 rpm Mud Pump […]
The used hdd rig XZ320E, manufactured in 2023, with 1,100 hours of operation, equipped with 100 drill pipes, a pilot bit, 300 mm, 400 mm, and 500 mm reamers, and a swivel.
80 drill pipes with a diameter of 102 mm, 4/6/8 reamers, pilot bits, power dividers, and ground anchor plates. Parameters Item Specification Model XCMG XZ960E Max Thrust‑Pull Force 970 kN (97 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑50 m/min Max Rotary Torque 33 000 N·m Spindle Speed 0‑120 rpm Engine SDEC SC9DF300G3 […]
Equipped with 100 drill pipes with a diameter of 83 mm, a pilot bit, 300 mm, 400 mm, and 500 mm reamers, a swivel. Parameters Item Specification Model XCMG XZ420E Rated Thrust‑Pull Force 420 kN (42 ton) Max Overload Force 500 kN (50 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑42 m/min […]
40 drill pipes, each 9.6 meters long and 127 millimeters in diameter, and one mud pump with a rated flow rate of 2,600 liters per minute
A 2021 XZ100/150 horizontal directional drilling rig with over 1,000 hours of operation; Equipped with 90 pieces of 127-spec drill pipe, reamers in three sizes (400, 600, and 800), an eagle-claw guide bit, and a power divider, as well as a mud tank, generator, ground anchors, shackle pliers, and U-ring accessories. Technical Specifications Parameter […]
The 450T equipped with 100 83-inch drill pipes, reamers, 300-800 guide bits, and a power divider. Parameters Item Unit XZ450F Engine — Cummins (China IV) Rated power kW/r/min 177/2200 Maximum push/pull force kN 450 Maximum push/pull speed m/min 50 Torque N·m 20000 Maximum speed r/min 140 Maximum flow rate L/min 450 Maximum pressure MPa […]
100 drill pipes, 50 of which were purchased in 2025; 3-8 reamer, guide drill bit, and power divider. Parameters Item Specification Model XCMG XZ420E Rated Thrust‑Pull Force 420 kN (42 ton) Max Overload Force 500 kN (50 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑42 m/min Max Rotary Torque 18 500 N·m Spindle […]
XCMG 360E, with over 600 hours of operation. 47 drill pipes (76 mm) with four-point tips, reamers 3–5, and a guide bit power take-off. Parameters Item Specification Model XCMG XZ360E Max Thrust‑Pull Force 370 kN (37 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑32 m/min Max Rotary Torque 13 200 N·m Rotation Drive […]
This rig is equipped with a fully automatic drill pipe rack and a fully automatic ground anchor, and comes with 91 drill pipes, each 60 mm in diameter and 3 m long (42 of which are brand new), two reamers (sizes 300 and 500 respectively), as well as a pilot bit, a brand-new power […]
90 drill pipes with a diameter of 127 mm, 4/6/8 guide bit, power divide. Parameters Item Specification Model XCMG XZ1000E Rated Thrust‑Pull Force 1100 kN (110 ton) Max Overload Pull‑Back Force 1600 kN (160 ton) Drive Type Rack & Pinion Max Push‑Pull Speed 0‑50 m/min Max Rotary Torque 42 000 N·m Spindle Speed 0‑120 rpm […]
100 drill pipes with a diameter of 89 mm and a length of 4.5 meters; reamer diameters ranging from 400 mm to 800 mm. There are also XZ450 units from other model years available, including one manufactured in May 2019 with 2,244 hours of operation, with 100 drill pipes, reamers ranging from 400 to […]
