Drillto HDD rigs, all-terrain horizontal directional drilling machines & Drillmaster HDD rigs. Professional trenchless drilling equipment for pipeline installation.
The ZT-16 Small Horizontal Drilling Machine is a cutting-edge equipment designed for horizontal directional drilling (HDD), a technique that allows the installation of pipelines underground without the need for traditional excavation methods. This advanced drilling technology is widely utilized in various industries, including construction, oil and gas, telecommunications, and utilities.
The key components of drilling rig hydraulic system are all imported or joint venture products, strong power and reliable performance, The rotary head is driven by double motors, high torque and high speed, The power head is equipped with ashackle floating device to protect the drill pipe thread. The thrusting and pulling use Rack and Pinion structure, stable performance.
The Drillto ZT-35/55F is a high-performance small horizontal directional drilling machine (HDD rig) designed for efficient trenchless construction projects.
Cummins Engine:194kW/2200rpm Pulling Speed：50m/min Max Mud Pump Displacement：600L/min Max Mud Pump Pressure：10Mpa Walking Speed:2.5-3.25km/h Entry Angle:3.4-21° Weight:14500kg Dimension(mm):7000*2280*2350 Rod Size:Φ83x3000mm Reamer Sizes:Φ300-Φ1000 Features The ZT-45CF from ZT HDD is a high-performance horizontal directional drilling (HDD) rig designed for demanding underground construction projects. Engineered with premium components and advanced technology, this ZT HDD rig delivers exceptional […]
The ZT-45/90CDF drill rig is designed to meet the demanding needs of modern infrastructure projects, offering unparalleled performance with cutting-edge technology.
The ZT-75/150AT horizontal directional drilling equipment is engineered for superior performance in trenchless construction projects, integrating advanced hydraulic technology, top-tier components, and user-centric design. As a professional horizontal directional drilling equipment, it delivers exceptional stability, efficiency, and reliability, making it the preferred choice for urban infrastructure, pipeline laying, and complex geological drilling tasks.

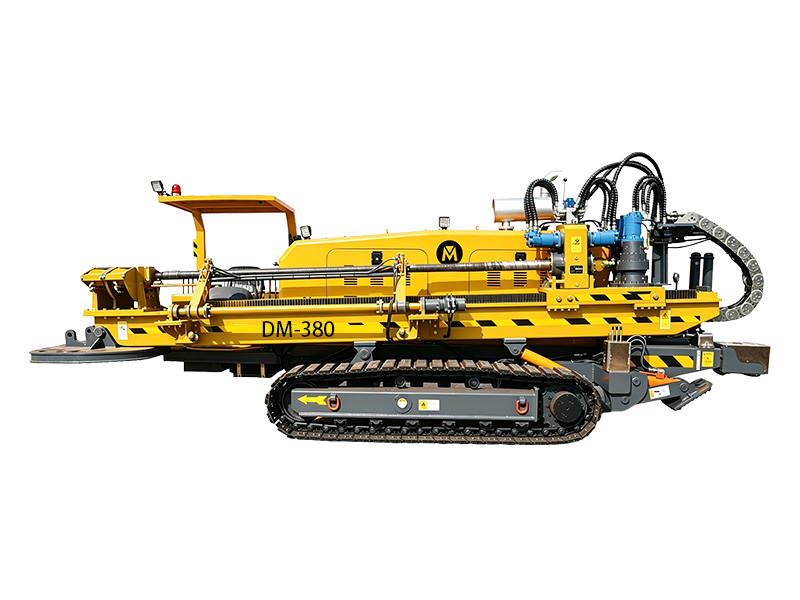

DM-380 horizontal directional drilling rig with 160kW engine, 380kN pulling & thrusting force, 16000Nm torque. Trenchless HDD machine with Φ76 drill rod, 400L/min mud pump, for underground pipeline construction.
DM-450 horizontal directional drilling rig powered by 179kW DongKang Stage III engine, 450kN max pull & thrust force, 22000Nm torque. Trenchless HDD machine with Φ83/Φ89 drill rods, 450L/min mud pump for pipeline construction.
DM-480 horizontal directional drilling rig with 194kW engine, 480kN pulling & thrusting force, 235000Nm rotation torque. Trenchless HDD rig fitted with Φ83/Φ89 drill rods, 600L/min mud pump for underground pipeline construction.
DM-1000 horizontal directional drilling rig with 264kW engine, 1000kN pulling & thrusting force, 45000Nm rotation torque. Heavy-duty HDD machine with Φ102/Φ114 drill rods, 850L/min mud pump for large-diameter pipeline crossing.
ZT-36AT is superior to the traditional rock drilling technology in the characteristics of"3 High and 5 saving": High construction efficiency, High configuration, High guidance accuracy, Save mud material. Save mud motor. Save diesel consumption. Save drilling tools consumption. Save labor cost, This rock drilling rig can dril both ordinary soil layer and rock formation.
Drilling rig hydraulic system and power system are well-known brand's products, reliable performance with strong power. Rotation and thrusting can work in infinitely variable speed with high transmission effciency. Thrusting add an acceleration system, which can effectively improve the working effciency.
Rotating and thrusting pump can be switched according to the construction speed requirements to improve construction effciency.
The ZT-75/150 Horizontal Pipe Boring Machine is engineered for contractors who demand a perfect balance of raw power, intelligent control, and operational efficiency. Designed to handle a wide range of trenchless projects with its 750KN (1500KN boosted) thrust/pullback force and powerful 34,000Nm of torque, this machine turns challenging pipe installations into smooth, predictable operations.
Features Engineered for Dominance in Rock and Tough Formations Unshakable Torque & Power: Command a massive 52,000Nm spindle torque and 1400kN of thrust/pullback, powered by a robust 336kW Cummins engine. This rig is built to power through obstacles that stop others. Dual Poclain Three-Speed Drive: Our exclusive dual Poclain motor system with three operational […]
The whole machine performs excellent in all parameters: high speed, high torque, fast push and pull speed, good handling, energy saving and high effciency, intelligent and convenient. The electronic control system adopts Danfoss controller and big display, simple and comfortable human-machine interaction.
Double closed-circuit and load sensitive combination provide high transmision and energy saving. Set up the active heat dissipation system to ensure the oil temperature within a reasonable range and improve the transmission efficiency of the system.
The machine performs excellent in all parameters: high speed, high torque, fast thrusting speed, good handling, energy saving and high efficiency, intelligent and convenient.
