Custom HDD Reamer
Custom 3-in-1 barrel roller reamer for gravel and cobble layers.
HDD Reamers
HDD Master supplies a comprehensive range of HDD reamers for horizontal directional drilling projects, including barrel reamers, fluted reamers, rock reamers, fly cutter reamers, and compact reamers. As a professional HDD reamers manufacturer, our products are designed for different ground conditions, our directional drilling reamers support efficient borehole enlargement, effective soil cutting, and drilling fluid circulation during HDD reaming operations.
Request Custom Quote
Why Choose HDD Master
Your One-Stop International Partner for Trenchless Solutions
Since 2000, HDD Master has specialized in directional drilling technology and equipment manufacturing. With extensive engineering experience, advanced manufacturing facilities and patented technologies, we deliver reliable HDD solutions for infrastructure projects worldwide.
20+
Years of Experience
53,333 m²
Factory Area
203
Patents
65
Export Countries
All Types of HDD Reamers for Sale
Fluted Reamer HDD
Custom fluted HDD reamers with swivels for smooth expansion.

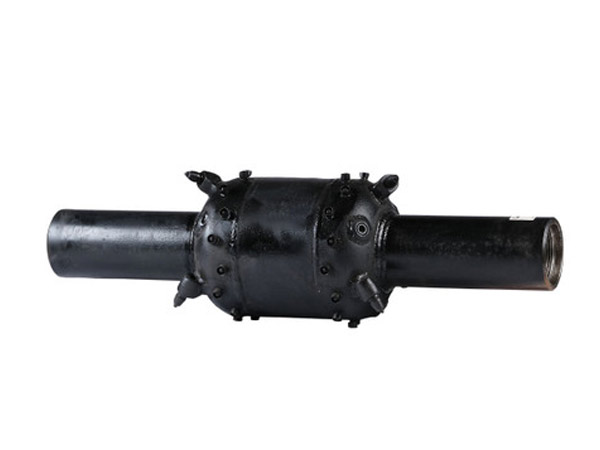

HDD Barrel Reamer
Our barrel reamers offering maximum wall support for smooth pullback.
HDD Rock Reamer
Heavy-duty TCI rock reamers engineered for high ROP in hard rock.
Fly Cutter Reamer
Custom open-wing fly cutter reamers for low drag, rapid penetration

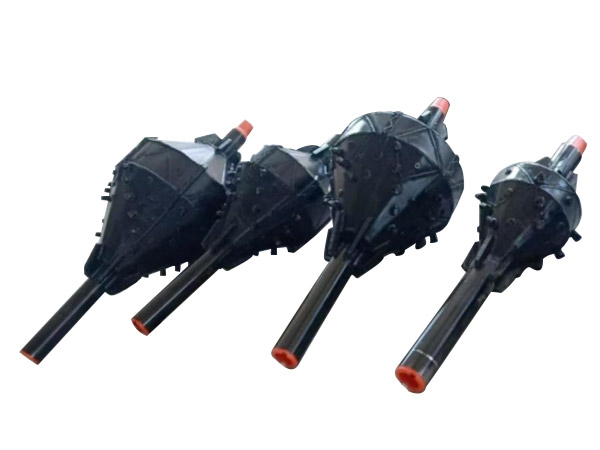

Compaction Reamer
Compaction reamers for high-efficiency hole expansion and wall stabilization.
Showing 6 of 6 products
Horizontal Directional Drilling Reamer Tips For Global Partner
1. Geotechnical Alignment: Match Cutters to Ground Conditions
The Challenge & Tip: Mismatched cutters cause severe bit balling in sticky clay or rapid carbide destruction in hard rock. For soft or cohesive soils, deploy Fly Cutter or Fluted Reamers with oversized fluid passages to maximize slurry flow; for cobble, shale, and solid rock, utilize Rock Reamers and HDD Hole Openers with tungsten carbide inserts (TCI) for crushing action rather than scraping.
2. Expansion Ratio Optimization: Balance Borehole Stability and Drag Force
The Challenge & Tip:
Incorrect reamer sizing may increase pullback resistance, contribute to borehole instability, and complicate pipe installation. As a general guideline, the final reamed bore diameter is often around 1.2–1.5 times the product pipe's outside diameter. The actual sizing should account for pipe dimensions, ground conditions, bore length, drilling fluid properties, and installation requirements.
For multi-stage reaming operations, progressively larger reamers are used to reach the required bore diameter. A properly selected final reaming or hole-conditioning pass helps remove residual cuttings and prepare the borehole for product pipe pullback.
3. Hydraulics & Rig Torque Matching: Prevent Downhole Clogging and Torque Spikes
The Challenge & Tip: A reamer’s cutting capacity must strictly align with your rig's rotational torque and mud pump flow rate ($GPM$). High-tooth-density configurations demand optimized fluid nozzle placements to continuously flush cuttings out of the bore, eliminating mud ring formation and high-stress rotational drag.
4. Custom Engineering Support: Eliminate Guesswork with Tailored Tooling
The Challenge & Tip: Every trenchless crossing presents unique geological variables—off-the-shelf tooling often falls short. Backed by over 20 years of field engineering across 65 countries, HDD Master provides customized cutter spacing, hardfacing profiles, and thread connections designed specifically for your jobsite parameters.
FAQs about HDD Reamers from HDD Master
Are HDD Master Reamers Compatible with Vermeer, Ditch Witch, and Other HDD Rigs?
HDD Master reamers can be configured for different HDD rig models and connection requirements. Compatibility depends on connection type, thread specifications, swivel configuration, and operating capacity. Please provide your rig brand and model so the appropriate connection can be evaluated.
Can HDD Reamers Be Customized for Different Pipe Diameters and Projects?
Yes. HDD Master provides customized reamer diameters and configurations according to project requirements. Custom designs can be evaluated based on target bore diameter, ground conditions, drilling method, and equipment specifications.
What Connection Types Are Available for HDD Reamers?
HDD reamer connections can be configured according to the rig and tooling requirements. Options may include different thread specifications, connection dimensions, and compatible subs. The required connection should be confirmed against the rig model and existing drill string.
What Information Should I Provide When Requesting an HDD Reamer Quote?
To help determine the right reamer configuration and prepare an accurate quotation, provide your HDD rig model, ground conditions, required bore diameter, product pipe outside diameter, connection specifications, and estimated quantity. Technical drawings or photos of existing equipment are also helpful.
