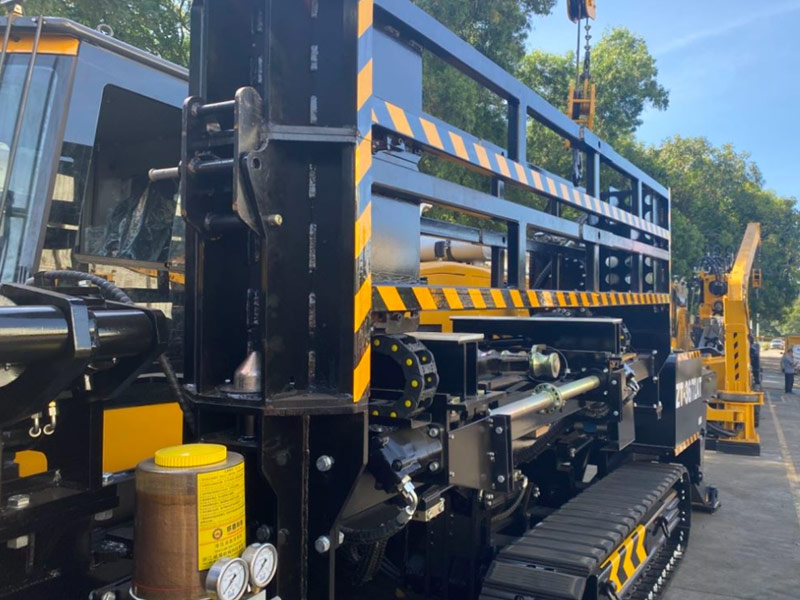

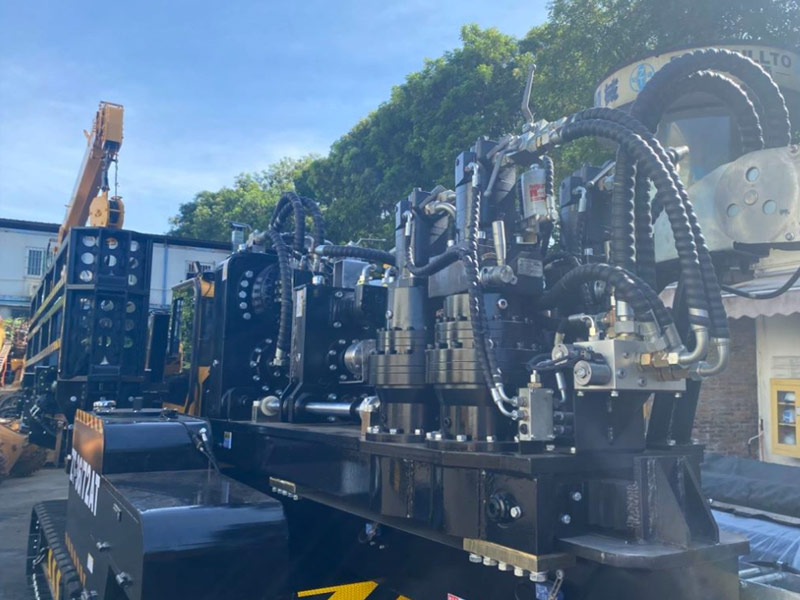

Name: ZT-36AT Directional Drilling Rig
SKU: 18
Rating: 5 (1017 reviews)

Description

ZT-36AT is superior to the traditional rock drilling technology in the characteristics of"3 High and 5 saving": High construction efficiency, High configuration, High guidance accuracy, Save mud material. Save mud motor. Save diesel consumption. Save drilling tools consumption. Save labor cost, This rock drilling rig can dril both ordinary soil layer and rock formation.

Parameters

Model	ZT-36AT
External torque(N.m)	15000
Inner torque(N.m)	2700
External rotation speed(rpm)	0-190
Inner rotation speed(rpm)	0-195
Max pulling/thrusting force(kN)	360
Pulling speed(m/min)	0-20
Commins engine(kW/rpm)	179/2200
Max mud pump displacement(L/min)	400
Max mud pump pressure(Mpa)	10
Entry angle(degree)	8-20
Walking speed(km/h)	2-4
Weight(kg)	14500
Dimension(mm)	835022802500
Rod size(mm)	φ89*3000
Rod size(mm)	φ50*3000
Reamer size(mm)	φ200-900
Crane size	2T
Cabin with AC	Can turn 90°
Rod box	18pcs(9*2)

Advantages

Using Self-lubricating plunger type mud pump.
America DEUBLIN swivel with precision sealing performance.
Inner pipe drives the cone bit to conduct drilling, external pipe drives direction.
