XZ360E 2020/2023
Brand: XCMG
Model: XZ360E
Year of manufacture: 2023
Used hour: 600 hours
Introduction
Brand: XCMG
Model: XZ360E
Year of manufacture: 2023
Used hour: 600 hours

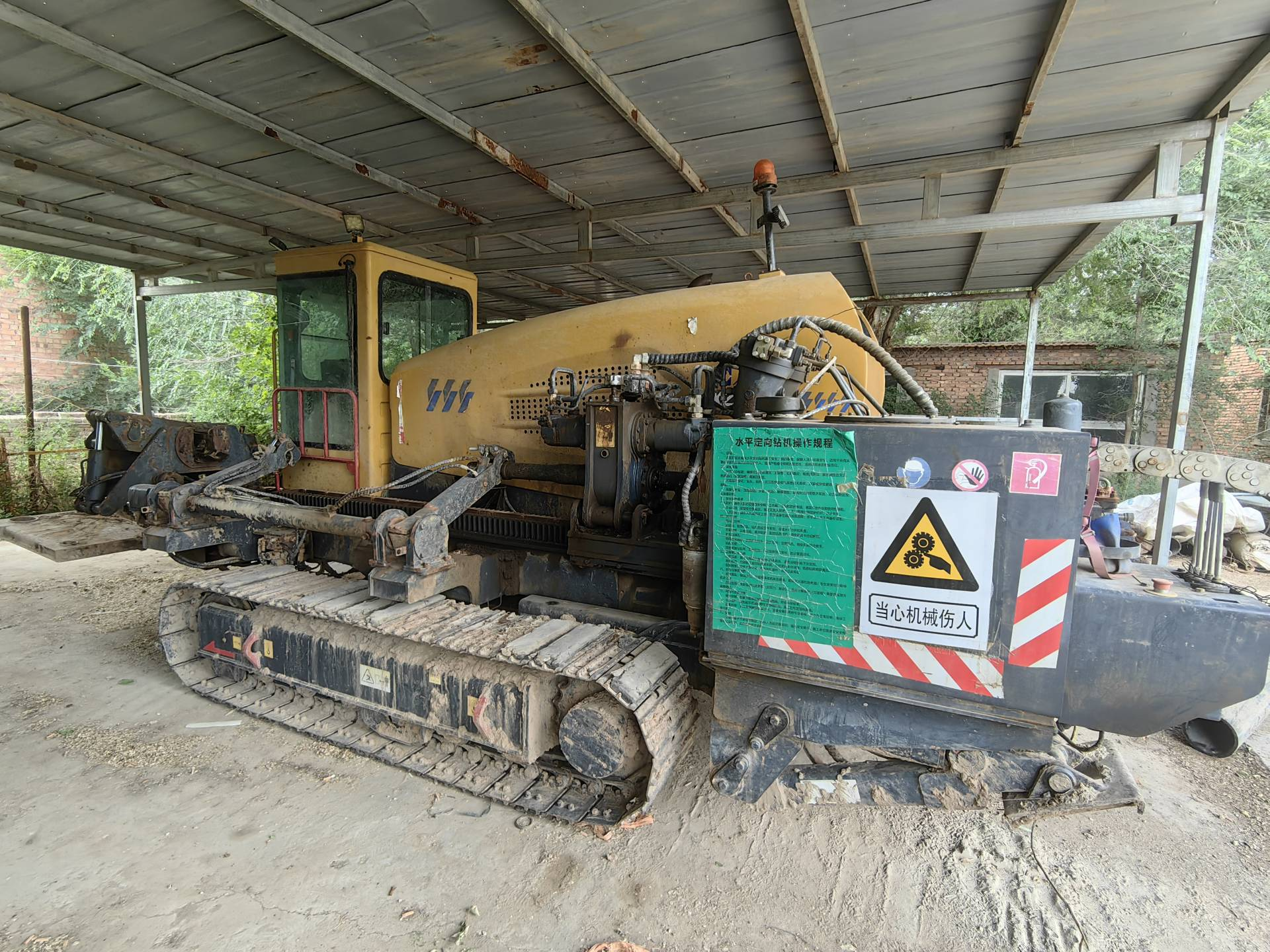

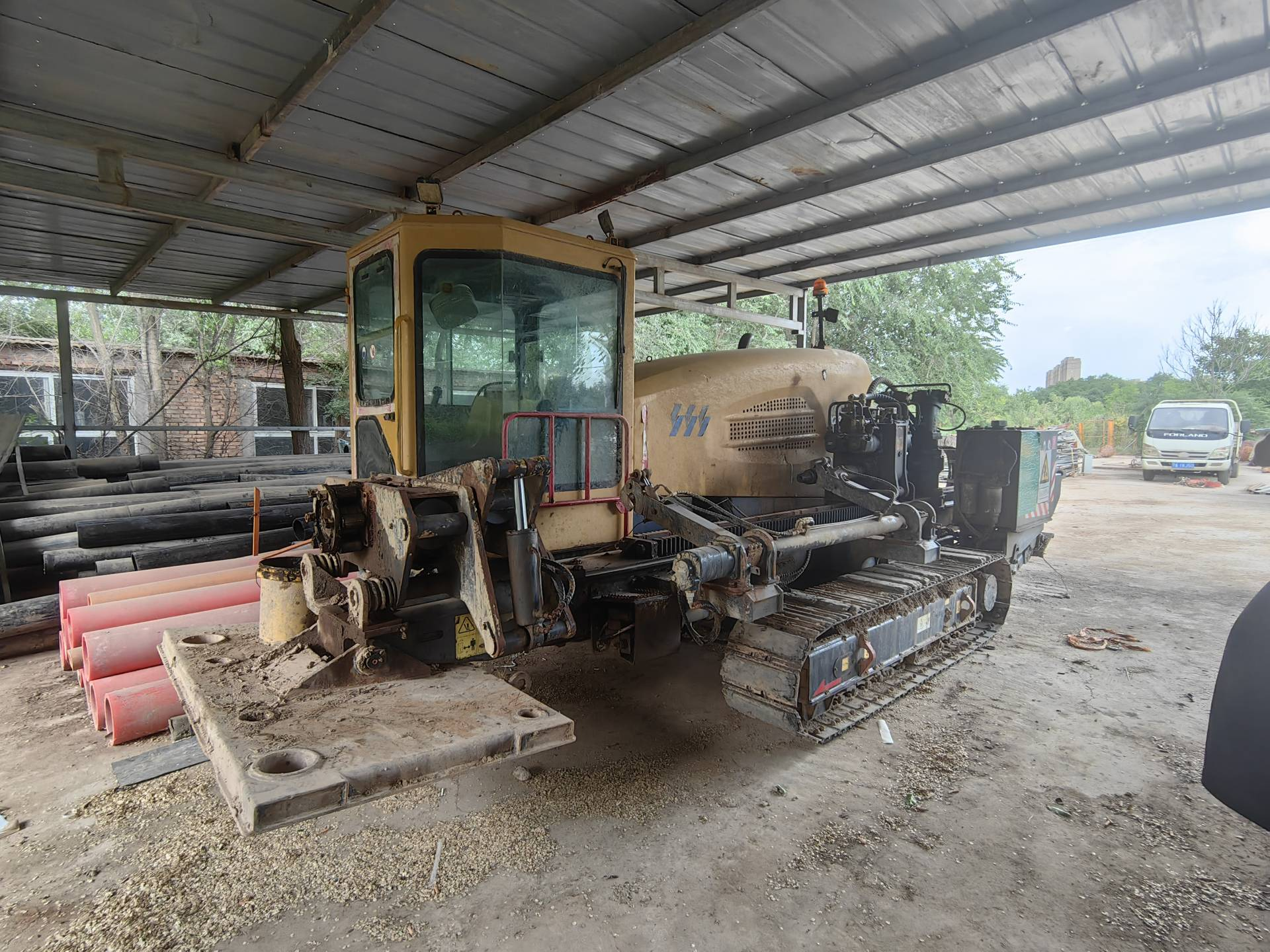

XCMG 360E, with over 600 hours of operation. 47 drill pipes (76 mm) with four-point tips, reamers 3–5, and a guide bit power take-off.
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ360E |
| Max Thrust‑Pull Force | 370 kN (37 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑32 m/min |
| Max Rotary Torque | 13 200 N·m |
| Rotation Drive | Four‑motor drive |
| Spindle Speed | 0‑140 rpm |
| Engine (China‑III) | Cummins QSB5.9‑C210，154 kW / 2200 rpm |
| Mud Pump Flow | 400 L/min |
| Mud Pump Pressure | 8 MPa |
| Drill Pipe Size | Φ73 / Φ83 mm × 3000 mm |
| Recommended Reaming Diameter | Φ250‑900 mm |
| Entry Angle Range | 8°‑20° |
| Operating Weight | 10 500 kg (10.5 ton) |
| Overall Dimension (L×W×H) | 6200 × 2280 × 2450 mm |
There is also a 2020 XZ360E, with over 3,600 hours of operating time, equipped with 80 drill pipes, reamers in sizes 300–700, a guide bit and a swivel.
Related Products
2016 Drillto ZT‑240
This is a used hdd machine from Drillto, model ZT‑240, originally manufactured in 2016. With over 2,600 working hours recorded. The rig comes with a substantial accessory set: 130 pieces of 140mm drill rods, a 1500L external mud motor, a 168mm mud motor, a 140mm non‑mag drill collar, a 20m³ mud tank, and a 450mm rock hole opener.
2016 Drillto ZT‑120/180
This is a used hdd rig from Drillto, model ZT‑120/180, originally manufactured in 2016. It has logged over 1,600 working hours—significantly low for its age—and is currently offered as a bare unit that has been fully refurbished to ensure reliable performance.
Drillto ZT100/150 2023
This is a used hdd machine from the Drillto, model ZT100/150, manufactured in 2023 with over 2,600 working hours. It comes with a comprehensive accessory package including 145 pieces of 127×6000mm drill rods, along with 4‑ to 8‑stage hole openers, drill bits, and swivel.

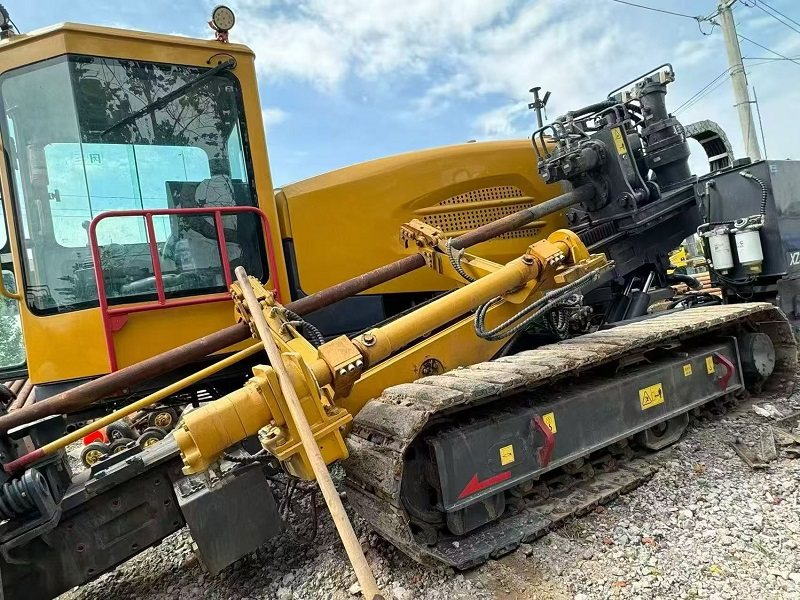

2020 XZ320E HDD Rig
