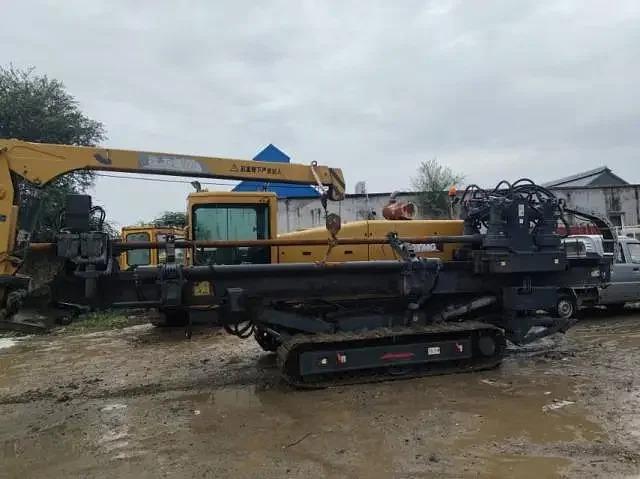

2020 XZ450plus90 HDD rig
Brand: XCMG
Model: XZ450plus90
Year of Manufacture: 2020.2
Working Hours: 1750h
Introduction
Brand: XCMG
Model: XZ450plus90
Year of Manufacture: 2020.2
Working Hours: 1750h
Accessories: 100 pcs 4.5m drill rods, 300‑1000mm hole openers, drill bits & breakout subs.
| Item | Specification |
|---|---|
| Model | XCMG XZ450Plus90 |
| Max Thrust‑Pull Force | 450 kN (45 ton) |
| Max Rotary Torque | 9000 N·m |
| Spindle Speed | 0‑160 rpm, stepless adjustable |
| Push‑Pull Speed | 0‑38 m/min |
| Drive Type | Rack & Pinion |
| Engine | Cummins, 162 kW / 2200 rpm |
| Mud Pump Flow | 350 L/min |
| Mud Pump Pressure | 10 MPa |
| Drill Pipe Dimension | Φ76 mm × 3 000 mm |
| Recommended Reaming Diameter | Φ250‑900 mm |
| Entry Angle Range | 10° ~ 20° |
| Operating Weight | 12 800 kg (12.8 ton) |
| Overall Dimension (L×W×H) | 7 100 × 2 350 × 2 520 mm |
