2020 XZ320E HDD Rig
Brand: XCMG
Model: 320E
Year of Manufacture: 2020
Working Hours: 1750h
Introduction
Brand: XCMG
Model: 320E
Year of Manufacture: 2020
Working Hours: 1750h
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ320E |
| Max Thrust‑Pull Force | 345 kN（34.5 ton） |
| Drive Type | Pinion & Rack |
| Max Push‑Pull Speed | 0‑36 m/min |
| Max Rotary Torque | 12 600 N·m |
| Rotation Drive | Four‑motor |
| Spindle Speed | 0‑140 rpm |
| Engine (China‑II) | Cummins 6BTAA5.9‑C205，153 kW / 2200 rpm |
| Engine (China‑III) | Cummins QSB5.9‑C210，154 kW / 2200 rpm |
| Engine (EU Stage IIIA) | Cummins QSB6.7‑C220，164 kW / 2200 rpm |
| Mud Pump Flow | 320 L/min |
| Mud Pump Pressure | 8 MPa |

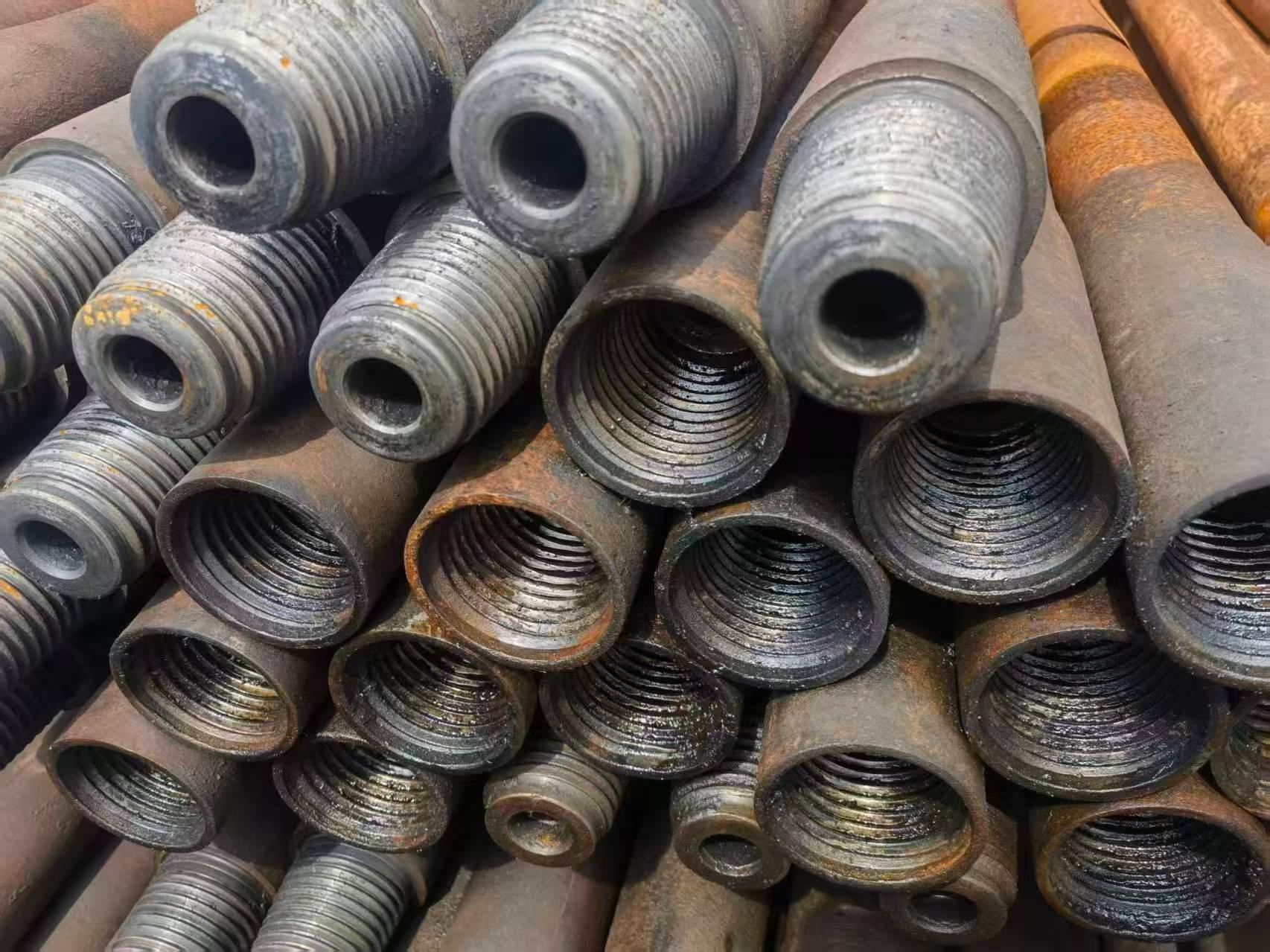

| Drill Pipe Size | Φ73 mm × 3000 mm |
| Recommended Reaming Diameter | Φ200‑800 mm |
| Max Entry Angle | 20° |
| Machine Weight | 10 500 kg（10.5 ton） |
| Dimension (L × W × H) | 6200 × 2280 × 2450 mm |
