XZ1000E
Brand: XCMG
Model: XZ1000E
Year of manufacture: 2021
Used hour: 1231 hours
Introduction
Brand: XCMG
Model: XZ1000E
Year of manufacture: 2021
Used hour: 1231 hours
90 drill pipes with a diameter of 127 mm, 4/6/8 guide bit, power divide.
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ1000E |
| Rated Thrust‑Pull Force | 1100 kN (110 ton) |
| Max Overload Pull‑Back Force | 1600 kN (160 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑50 m/min |
| Max Rotary Torque | 42 000 N·m |
| Spindle Speed | 0‑120 rpm |

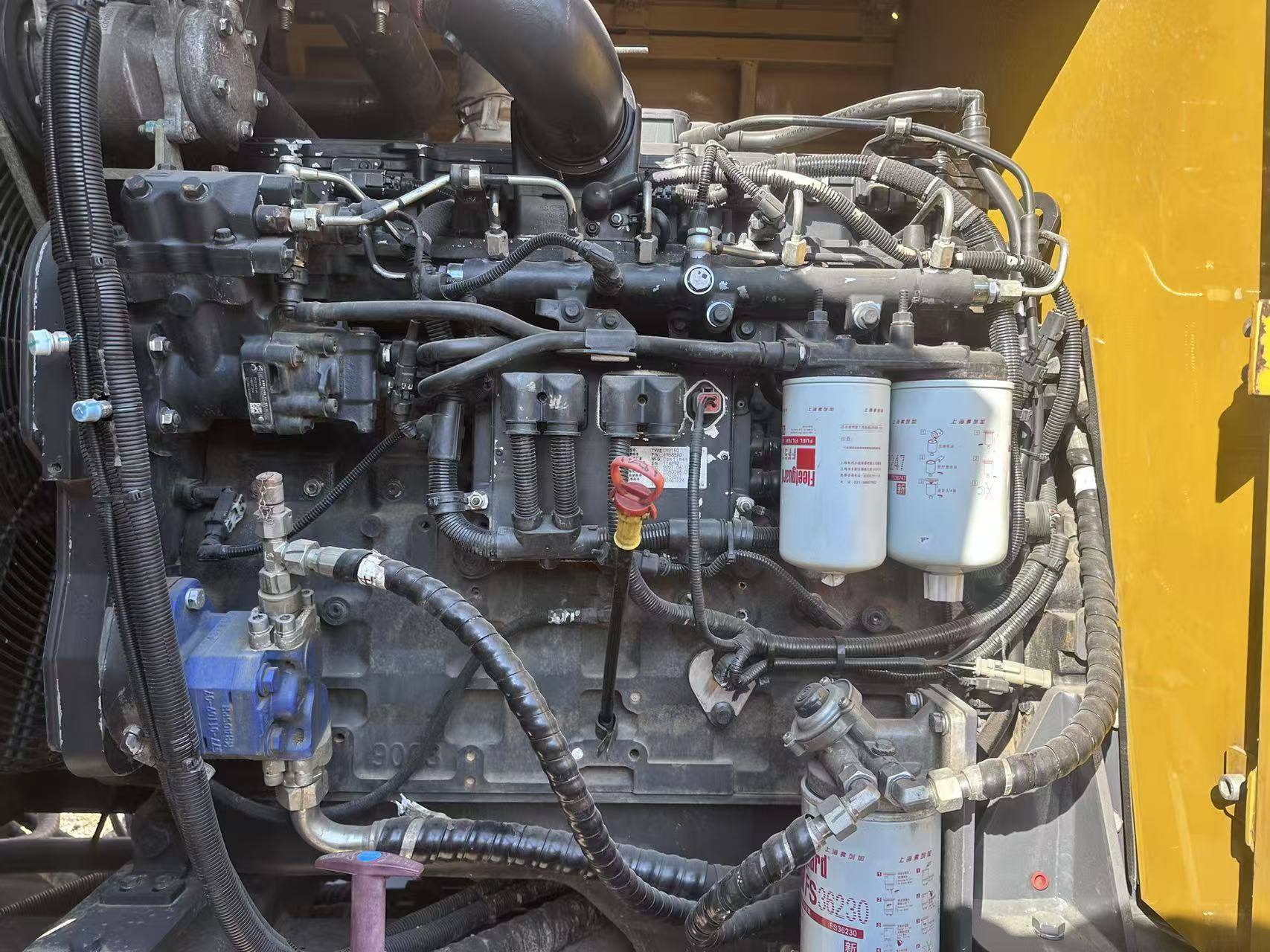

| Engine Model | Weichai WP10HG313E672 / Cummins QSL8.9‑C360 |
| Engine Rated Power | 230‑264 kW / 2200 rpm |
| Mud Pump Flow | 800 L/min |
| Mud Pump Pressure | 10 MPa |
| Drill Pipe Size | Φ114 mm / Φ127 mm × 6000 mm（optional） |
| Recommended Reaming Diameter | Φ400‑1200 mm |
| Entry Angle Range | 8°‑18° |
| On‑board Crane | 2 ton capacity |
| Operating Weight | 20 000 kg (20 ton) |
| Overall Dimension (L×W×H) | 10780 × 2690 × 2770 mm |
| Travel Speed | 0‑2.2 km/h |
