2022 XZ360E
Brand: XCMG
Model: XZ360E
Year of manufacture: 2022
Introduction
Brand: XCMG
Model: XZ360E
Year of manufacture: 2022

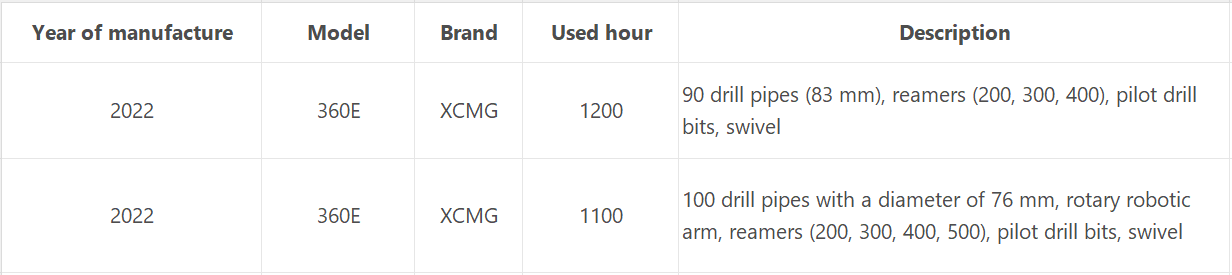

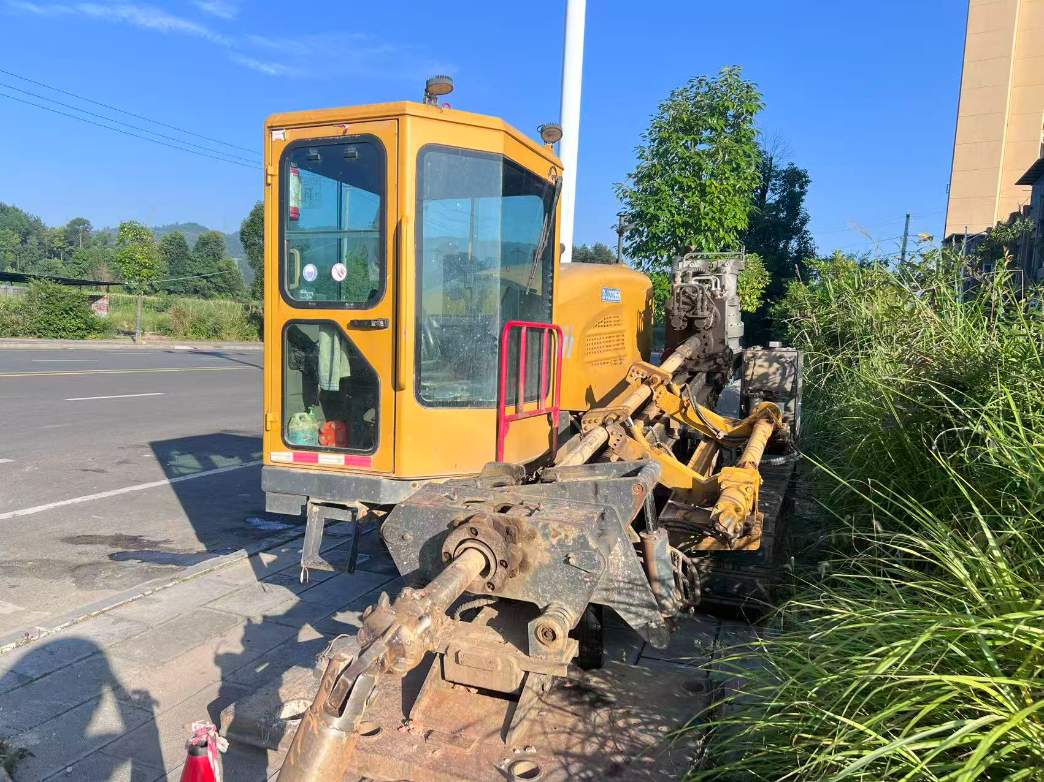

There are two 2022 XCMG 360E HDD rigs.
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ360E |
| Max Thrust‑Pull Force | 370 kN (37 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑32 m/min |
| Max Rotary Torque | 13 200 N·m |
| Rotation Drive | Four‑motor drive |
| Spindle Speed | 0‑140 rpm |
| Engine (China‑III) | Cummins QSB5.9‑C210，154 kW / 2200 rpm |
| Mud Pump Flow | 400 L/min |
| Mud Pump Pressure | 8 MPa |
| Drill Pipe Size | Φ73 / Φ83 mm × 3000 mm |
| Recommended Reaming Diameter | Φ250‑900 mm |
| Entry Angle Range | 8°‑20° |
| Operating Weight | 10 500 kg (10.5 ton) |
| Overall Dimension (L×W×H) | 6200 × 2280 × 2450 mm |
