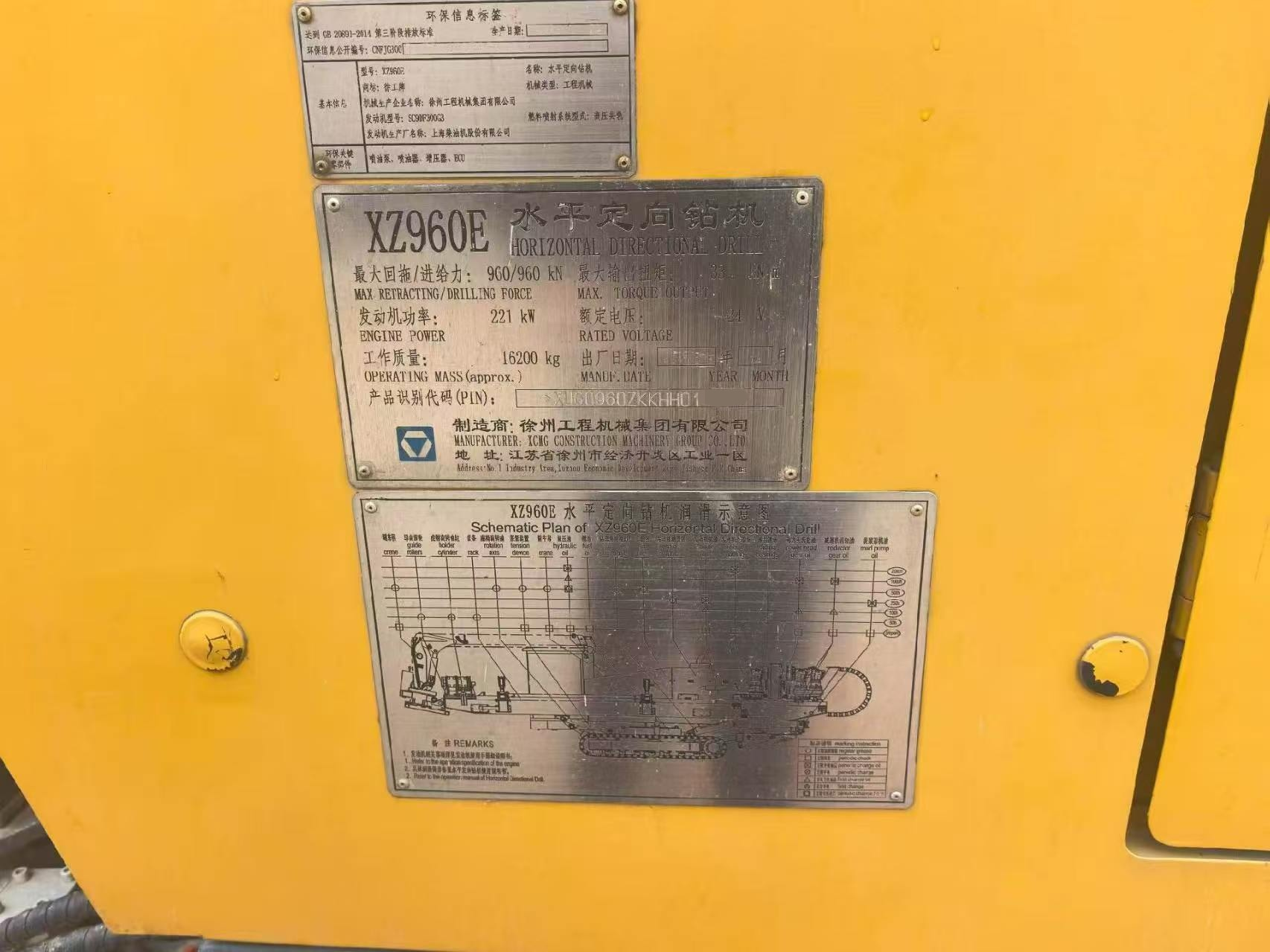

XZ960E
Brand: XCMG
Model: XZ960E
Year of manufacture: 2020
Used hour: 1215 hours
Introduction
Brand: XCMG
Model: XZ960E
Year of manufacture: 2020
Used hour: 1215 hours
100 pieces of 6-meter 102 drill pipe, 5–12-inch reamers, steering drill head power divider, Jinlaiyuan 10-cubic-meter mud tank, Jinlaiyuan 60-cubic-meter vibrating screen, Leike 1,000-liter-per-minute external pump, two screw motors (102 and 127); reamers: 330–350 (brand new) – 400 – 430 – 450 (brand new).
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ960E |
| Max Thrust‑Pull Force | 970 kN (97 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑50 m/min |
| Max Rotary Torque | 33 000 N·m |
| Spindle Speed | 0‑120 rpm |
| Engine | SDEC SC9DF300G3 / QSL8.9‑C295，221 kW / 2100 rpm |
| Mud Pump Flow | 600 L/min（800 L/min Optional） |
| Mud Pump Pressure | 10 MPa |
| Drill Pipe Size | Φ102 mm × 6000 mm |
| Recommended Reaming Diameter | Φ400‑1000 mm |
| Entry Angle Range | 8°‑20° |
| On‑board Crane Lifting Capacity | 2 t（4 t·m） |
| Operating Weight | 16 200 kg (16.2 ton) |
| Overall Dimension (L×W×H) | 10650 × 2450 × 2600 mm |
| Travel Speed | 0‑4 km/h |
