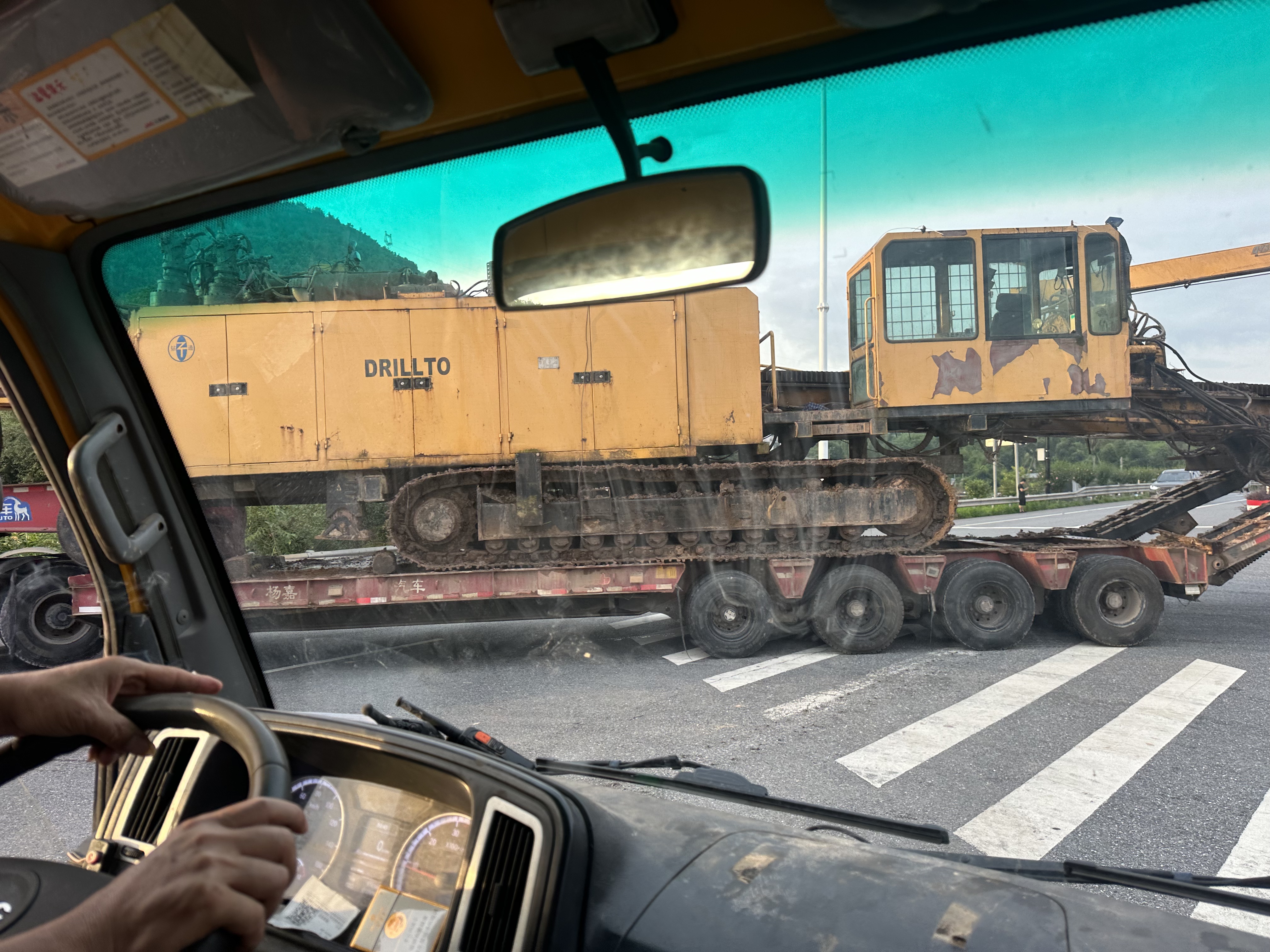

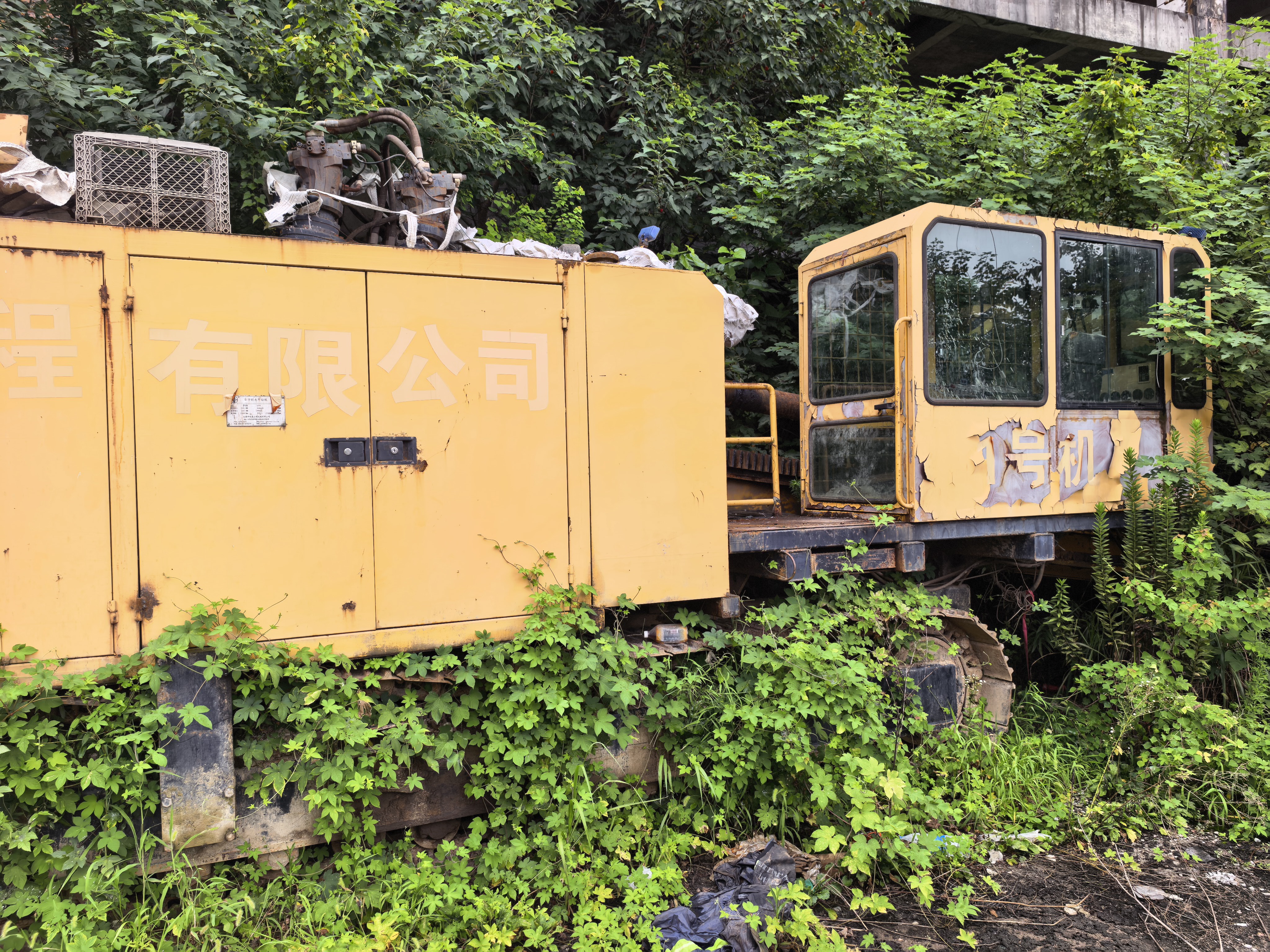

2016 Drillto ZT‑240
Brand: Drillto
Model: ZT‑240
Year of Manufacture: 2016
Working Hours: 2600+ h
Introduction
Brand: Drillto
Model: ZT‑240
Year of Manufacture: 2016
Working Hours: 2600+ h
Parameters
| Item | Specification |
|---|---|
| Max Rotary Torque | 78 000 N·m |
| Rotary Speed | 0‑110 rpm, stepless speed regulation |
| Max Pull‑Back Force | 2400 kN (240 ton) |
| Max Feed Force | 2400 kN |
| Push‑Pull Speed | 0‑42.7 m/min |
| Engine | Cummins, 373 kW / 2000 rpm |
| Mud Pump Flow | 850 L/min |
| Mud Pump Pressure | 10 MPa |
| Drill Pipe Size | Φ127 mm × 6000 mm |
| Recommended Reaming Diameter | Φ400‑1500 mm |
| Entry Angle | 8°‑18° |
| Travel Speed | 0‑3 km/h |
| Machine Weight | 29 000 kg (29 ton) |
| Host Dimension (L × W × H) | 2100 × 2900 × 2950 mm |
Related Products
2016 Drillto ZT‑120/180
This is a used hdd rig from Drillto, model ZT‑120/180, originally manufactured in 2016. It has logged over 1,600 working hours—significantly low for its age—and is currently offered as a bare unit that has been fully refurbished to ensure reliable performance.
Drillto ZT100/150 2023
This is a used hdd machine from the Drillto, model ZT100/150, manufactured in 2023 with over 2,600 working hours. It comes with a comprehensive accessory package including 145 pieces of 127×6000mm drill rods, along with 4‑ to 8‑stage hole openers, drill bits, and swivel.

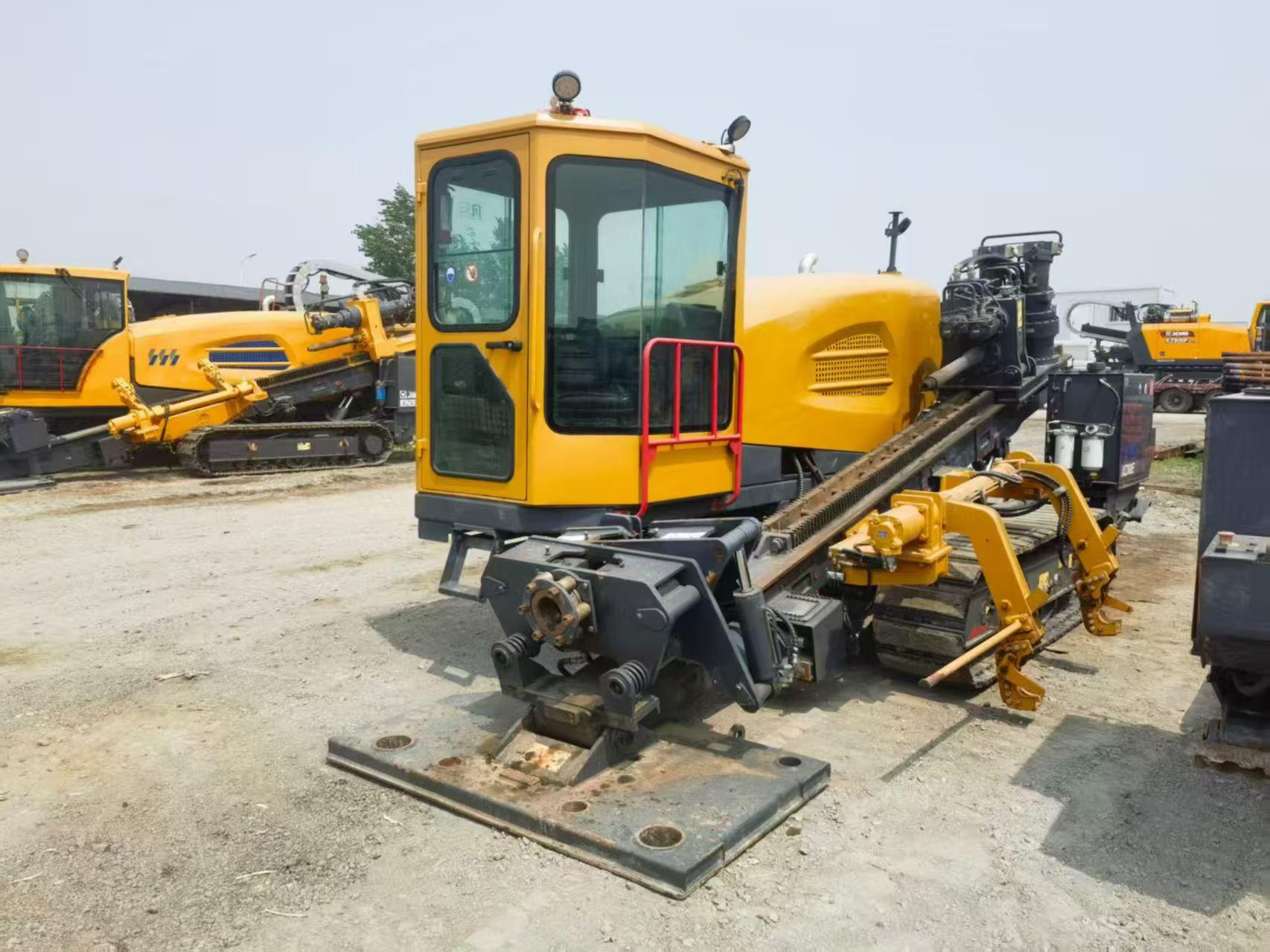

2020 XZ320E HDD Rig
This is a 2020 XZ320E hdd rig with 1,750 working hours. It comes with 100 pieces of 76mm drill rods and 2,345 hole openers, drill bits, and swivel as accessories.

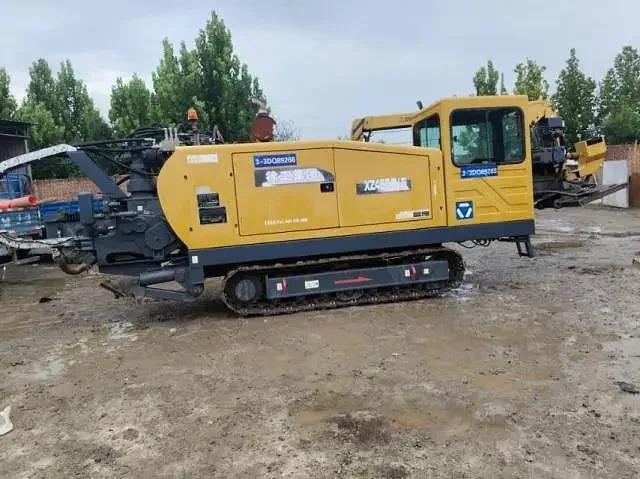

2020 XZ450plus90 HDD rig
