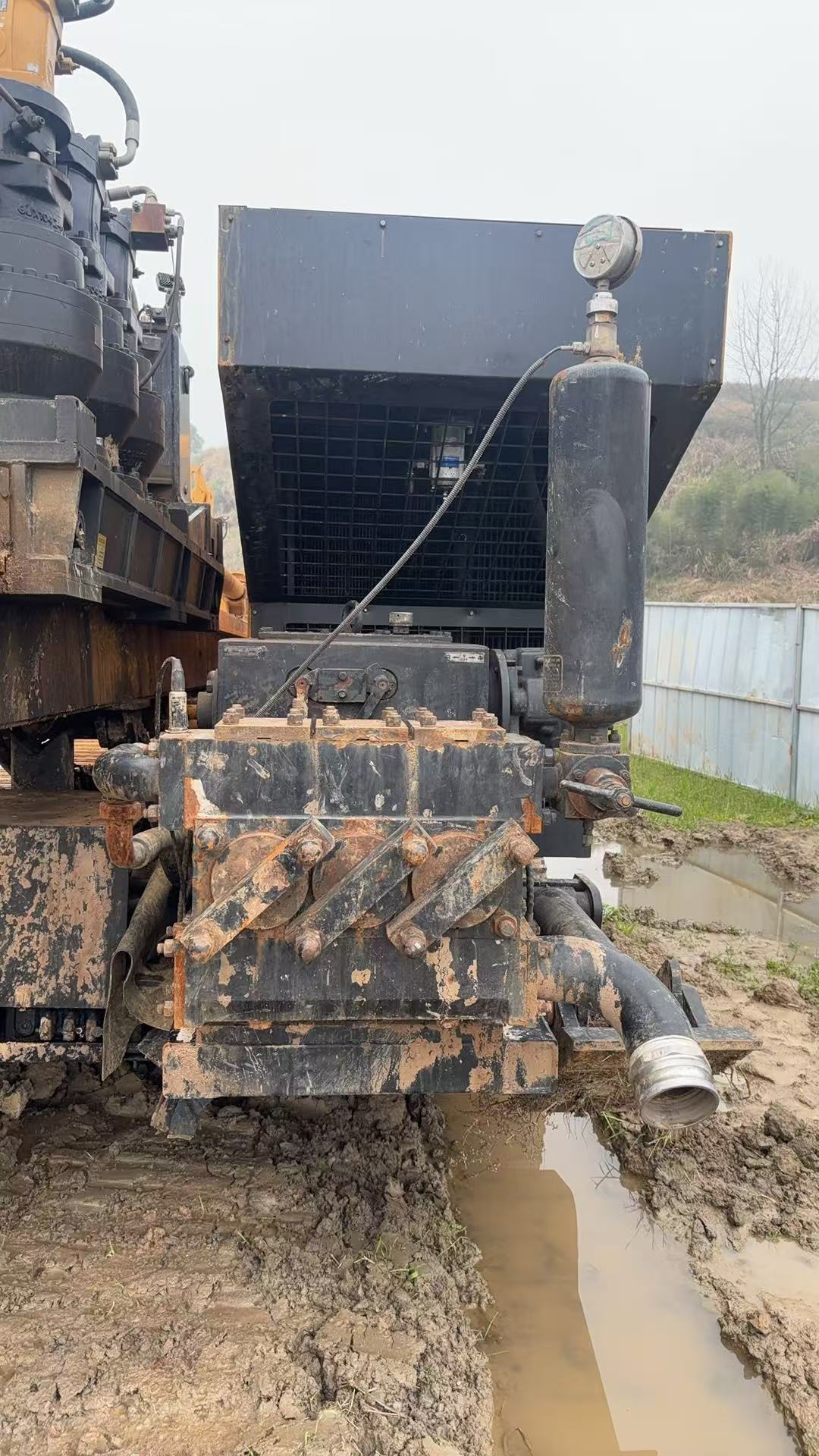

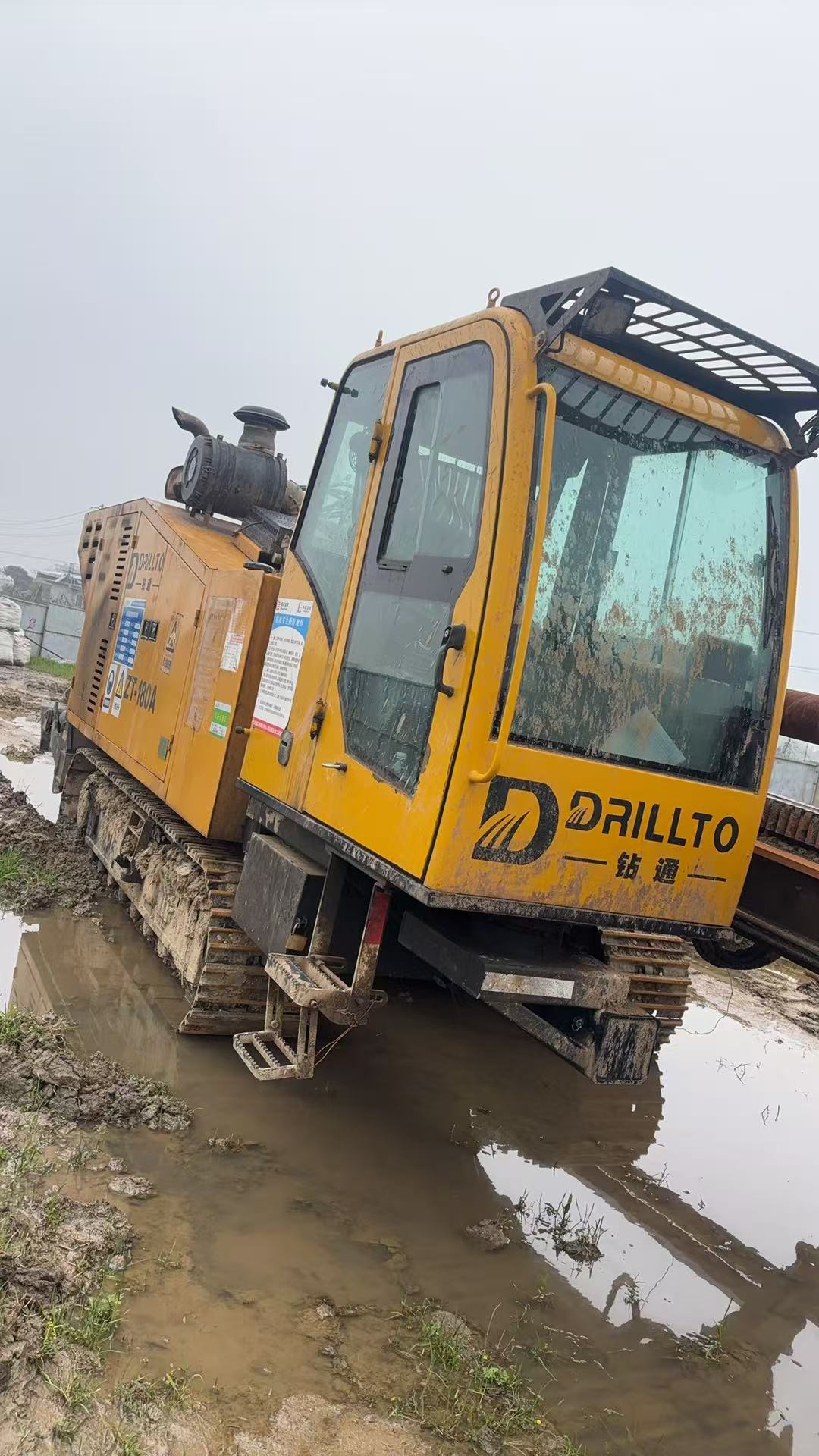

Drillto ZT100/150 2023
Parameters
Technical Specifications
| Parameter | Value |
|---|---|
| Max Torque | 45000 N.m |
| Rotation Speed | 0-125rpm |
| Max Pulling/Thrusting Force | 1000/1500KN |
| Pulling Speed | 50M/min |
| Engine | 264kw Dongfeng Cummins Electric Injection Diesel (2100rpm) |
| Max Mud Pump Displacement | 950L/min |
| Max Mud Pump Pressure | 10Mpa |
| Walking Speed | 3km/h |
| Entry Angle | 10-18° |
| Weight | 27900kg |
| Dimension (mm) | 10500/12170/2600/3000 |
| Rod Size | Φ114.3×127×4500/6000mm |
| Reamer Size | Φ1200mm |
