In Horizontal Directional Drilling (HDD) projects, the tricone bit is the “pathfinder” that penetrates unknown subsurface formations. But do you truly understand what it is, how it works, and how to choose the most suitable one for your project—be it in soft soil, gravel, or hard rock? Leveraging global HDD service experience, a professional team, and high-quality products, Drillmaster Trenchless brings you an in-depth guide from principle to selection, ensuring every drilling operation is precise and efficient.
1. What is a Tricone Bit? — The Rock-Breaking Power Tool for HDD
Simply put, a tricone bit is a drilling tool that crushes rock through the rolling action of three cone-shaped cutters equipped with teeth. It is one of the most commonly used and adaptable bit types in both oil drilling and trenchless HDD.
Core Feature: Three independent cones are mounted on the bit body, each capable of rotating on its own axis. This design allows it to handle a wide range of formations, from soft clay to hard granite.
Role in HDD: In horizontal directional drilling, it is attached to the front of the drill rod or mud motor. It is responsible for cutting and breaking up the formation during pilot hole drilling or reaming, creating a smooth, stable borehole path to pave the way for pipe pullback.
2. How Does It Work? — The Intelligence of Rolling-Crushing-Shearing
The working principle of a tricone bit is not simple “chiseling,” but an ingenious composite process of “Rolling – Crushing – Shearing”:
Rolling & Rotation: As the bit is rotated by the drill rig, the three cones revolve around the bit’s central axis due to formation reaction forces. Simultaneously, each cone also spins on its own journal. This motion converts pure sliding friction into rolling friction, significantly reducing wear.
Crushing & Shearing: The hard teeth (mill teeth or tungsten carbide inserts) on the cones penetrate the formation under weight-on-bit (WOB). As they roll, the teeth slide relative to the rock, generating a shearing action that fractures it.
Alternating Action & Cleaning: The teeth on the three cones are intermeshed, providing full-bottom coverage with no repeated tracks. Meanwhile, high-pressure drilling fluid ejected through the nozzles cleans cuttings promptly, prevents bit “balling,” maintains cutting efficiency, and transports cuttings out of the borehole.
Key Advantages for HDD:
- Superior Stability: The three-cone structure provides relatively balanced loading, helping to maintain trajectory stability during directional drilling.
- Exceptional Adaptability: By changing cones with different tooth shapes and densities, it can handle the complex, variable formations commonly encountered in HDD.
3. Mill Tooth vs. Tungsten Carbide Insert (TCI): How to Choose for Your HDD Project?
Understanding the working principle is the first step; the primary key to selection is choosing the tooth type based on your formation.

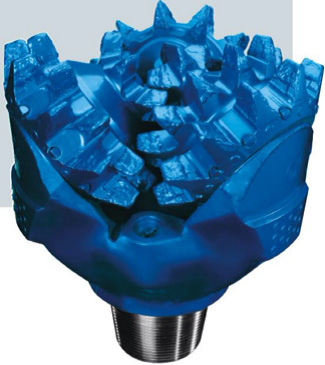

Mill Tooth (Steel Tooth) Tricone Bit: Teeth are integrally milled from the cone, featuring sharp, chisel-like profiles.
Ideal HDD Applications: Excellent for extremely soft to medium-soft formations like soft soil, clay, and homogeneous sand layers.
Working Principle Advantage: The long, sharp teeth allow for rapid penetration and scraping action in soft formations, delivering high rate of penetration (ROP).

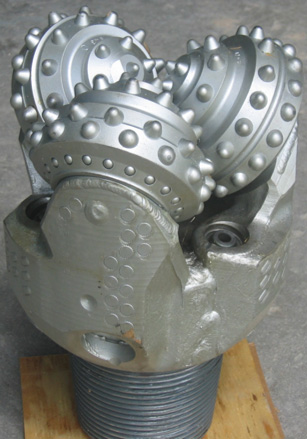

Tungsten Carbide Insert (TCI) Tricone Bit: Hard alloy (TCI) inserts are pressed into the cones, offering extreme abrasion resistance.
Ideal HDD Applications: Designed specifically for gravel layers, weathered rock, and medium-hard to hard formations.
Working Principle Advantage: The rounded, hard inserts crush hard rock through compression and impact. Their wear resistance ensures an extended service life in abrasive formations. They are often paired with high-speed mud motors.
4. The Quick-Read Selection Code: Decoding the Essential IADC System for HDD Engineers
The three-digit IADC code is the internationally recognized “ID card” for drill bits. Understanding it allows you to quickly identify the appropriate drill bit.
First Digit (Formation Type):
- Soft Soil/Sand: Consider Mill Tooth Series 1, 2, 3 or TCI Series 4, 5.
- Gravel/Weathered Rock: Prioritize TCI Series 5, 6.
- Medium-Hard/Hard Rock: Must use TCI Series 6, 7.
Third Digit (Bearing & Seal Type): Critical for HDD!
Strongly recommend Series 5, 6, 7, 8 (Sealed Bearing). These effectively prevent mud and solids intrusion, adapt to HDD’s long-duration, high-RPM conditions, and offer longer service life.
Example: An IADC 637 code indicates a drill bit suitable for medium-hard formations (6), with a medium insert density (3) and a high-grade sealed bearing system (7). This makes it an excellent choice for HDD drilling through weathered rock and pebble interlayers.
5. Optimized for HDD: Critical Structural Features You Can’t Ignore
Bearing System: Floating bearings with metal face seals are the standard for premium HDD tricone bits, offering better lubrication and longer life.
Diameter Protection Design: Hardfacing and TCI gauge inserts on the shirttail and heel resist wear, prevent bit diameter reduction, and ensure a smooth, stable borehole wall—crucial for successful pipe pullback.
Hydraulic System: Optimized nozzles create high-velocity jets that clean cuttings from between teeth, prevent bit balling, and maintain cutting efficiency.
6. Drillmaster Trenchless’s Professional Selection Advice
Final selection requires synthesizing the geological report, rig capability, mud motor parameters, and construction techniques.
- Urban Clay Crossing: Consider IADC Series 3 (Mill Tooth) or Series 5 (TCI) bits with sealed bearings.
- Riverbed Sand & Gravel Crossing: It is advisable to equip with IADC Series 6 TCI bits, such as 637.
- Directional Drilling in Rock Formations: Must use IADC Series 7 TCI bits and ensure they are equipped with a high-quality sealed bearing system.
Every technical choice regarding the tricone bit—from its rolling-crushing working principle to formation-specific selection—directly impacts the success and cost of your HDD project.
