In the directional phase of Horizontal Directional Drilling (HDD), the configuration of the Bottom Hole Assembly (BHA) is critical to project success. Statistics show that over 70% of directional problems stem from a mismatch between the BHA and the formation. This article provides a practical, geology-based BHA configuration guide, offering full-scenario solutions from soft soils to hard rock, helping you improve directional accuracy, drilling efficiency, and reduce construction risks.
The BHA (Bottom Hole Assembly) is the crucial tool string at the end of the drill pipe during HDD drilling, serving a dual function as the "steering wheel" and "detector" in the steering phase. An optimally configured BHA enables:
Precise trajectory control (building angle, holding angle, changing direction)
Effective formation breakage (matching the drill bit to geological characteristics)
Real-time data transmission (via MWD systems)
Maintaining borehole stability (ensuring safe drilling)
Formation Characteristics & Guiding Challenges: Soft soils (including clay, silt, and loose fill) are characterized by low compressive strength, easy deformation, and a tendency for cuttings adhesion. The main steering challenges are: establishing a stable guide surface, preventing mud pockets, and achieving efficient inclination.

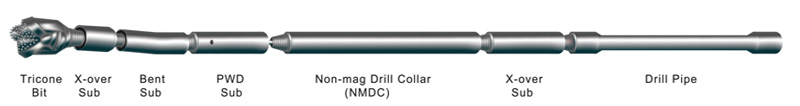

Recommended BHA Configuration: Drill Bit → X-over sub → Bent Sub → PWD Sub → Non-Mag Drill Collar (NMDC) → X-over sub → Drill Pipe
Key Component Selection:
Drill Bit Selection: Cutting First, Cuttings Removal is Key
Blade Bit: Asymmetric structure generates lateral cutting force to Assist in Inclination.
Three Jaw Bit: Multi-claw design reduces stress area, increases pressure, enhances drilling efficiency in soft rock.
Mill Tooth Tricone Bit: The classic choice best suited for soft formations.
Advantages: High tooth profile, wide spacing, high cutting efficiency.
Anti-caving design: Large chip removal slots and flushing systems.
Applicable formations: Clay, silt, soft sandstone.
Bent Sub: The Core of Soft Soil Guidance
Fixed bend angle design: Provides consistent, stable inclination force.
Positioned adjacent to the bit: Ensures fast, direct guidance response.
Angle selection: Choose 1.5°-2.5° based on formation drillability and inclination rate requirements.
PWD (Pressure While Drilling) Sub: Ensuring Safe Guidance
Real-time annular pressure monitoring: Prevents diameter reduction and overflow risks.
Early warning function: Detects abnormal changes in formation pressure.
Data integration: Synchronized analysis with inclination data.
Practical Techniques for Soft Soil Guidance:
Adjust mud parameters: Appropriately increase viscosity to enhance cuttings carrying capacity.
Optimize drilling parameters: Adopt a "low weight on bit, high RPM" mode.
Trajectory control strategy: Make small, frequent adjustments to avoid excessive inclination.
These formations (including hard clay, compacted sand, and weathered to hard rock) are strong abrasiveness, high stability requirements, and a tendency for mechanical drilling rates to decline. The guidance phase must address wear resistance, stability, and efficiency simultaneously.
Recommended BHA Configuration: Drill Bit → X-over sub → Mud Motor → Orientation Sub → Non-Mag Drill Collar (NMDC) → X-over sub → Drill Pipe
Key Component Selection:
Drill Bit Selection: Wear and Impact Resistance are Core
TCI (Tungsten Carbide Insert) Tricone Bit: The standard configuration for hard formations.
Wedge Teeth: Suitable for medium-soft to medium-hard formations (e.g., hard clay, sandy shale).
Conical Teeth: Designed specifically for hard formations (e.g., dense sandstone, weathered rock).
Bearing sealing technology: Choose double seals or metal seals to ensure service life.
PDC Bit: The Efficient Choice for Homogeneous Hard Formations
Advantage: Mechanical drilling speed can be 2-3 times that of roller cone bits in homogeneous hard clay and shale.
Limitation: Weaker resistance to sudden formation shocks.
Selection Considerations: Focus on impact-resistant design and cutter grade.
Three Jaw Bits: A Balanced Choice for Hard Soil and Fully Weathered Soft Rock
Adaptability: Performs consistently in hard soil, compacted sand, and fully weathered soft rock.
Features: Balances aggressiveness and abrasion resistance.
Mud Motor: The Power Core for Composite Drilling
Provides downhole power: Enables combined drill pipe rotation and motor-driven drilling.
Extends bit life: Reduces bit sliding wear time.
Improves trajectory quality: Rotary drilling results in a smoother borehole and more even trajectory.
Orientation Sub (Non-Magnetic): Key to High-Precision Measurement
Near-bit measurement: Sensors closer to the bit provide more real-time data.
Integrated design: Reduces BHA connection points, improving reliability.
Multi-parameter measurement: Can integrate sensors for inclination, azimuth, tool face, etc.
Practical Techniques for Guiding in Hard Formations:
Parameter matching: Adjust weight on bit and rotary speed based on bit type.
Tool face control: Response is slower in hard formations, requiring advance adjustment.
Vibration monitoring: Closely monitor downhole vibration data to prevent tool failure.
For long-distance HDD drilling exceeding 800 meters, managing friction and torque becomes critical. The inclusion of a lubrication sub (crossover sub valve / mud bypass valve) must be considered in the BHA design.
Role and Configuration of Lubrication Sub: Drill Bit → ... → NMDC → X-over sub → [Lubrication Sub] → Drill Pipe (can be repeated every 400-600 meters)
Four Core Functions:
Reduces friction/torque: Secondary injection of lubricating fluid reduces friction between drill string and borehole wall.
Cleans the borehole: Supplies fresh mud, enhancing cuttings carrying capacity.
Handles complex situations: Addresses sudden issues like lost circulation or hole collapse.
Extends drilling distance: Can increase single-trip drilling distance by over 30%.
Usage Timing and Operational Points:
Pre-set location: Plan lubrication sub positions based on designed length before drilling.
Activation condition: Use when pump pressure continuously increases and torque significantly increases.
Mud Formula: Use a special formula with high lubricity and low water loss for lubrication.
Step 1: Geological Identification →
├─ Soft Soil → Choose "Bent Sub" option
├─ Hard Soil/Sand → Choose "Mud Motor" option
└─ Long Distance (>800m) → Add "Lubrication Sub"
Step 2: Bit Matching →
├─ Soft Formation → Mill Tooth Tricone / Blade / Three Jaw Bits
├─ Medium-Hard Formation → TCI Tricone (Wedge) / PDC
└─ Hard Formation → TCI Tricone (Conical) / Three Jaw Bits
Step 3: Parameter Optimization → Adjust based on real-time drilling feedback → Complete
A: Observe three key indicators: ① Tool face stability; ② Changes in ROP; ③ Fluctuations in torque/pump pressure. If the tool face is hard to maintain, ROP drops abnormally, or parameters fluctuate drastically, it may indicate a BHA mismatch.
A: Bent Subs are primarily used for fast, precise directional drilling in soft soils; Mud Motors are more suitable for holding angle in hard soils and for long-distance rotary-steerable drilling. In composite formations, a bent-housing motor may be considered.
A:
Mill Tooth Tricone (Soft formation): 80-120 hours
TCI Tricone (Medium-Hard formation): 100-150 hours
PDC Bit (Homogeneous hard formation): 150-300 hours
Three Jaw Bit: 100-180 hours (depends on specific formation)
Note: Actual service life is affected by many factors such as formation abrasiveness, drilling parameters, and operator skill.
Geology-First Rule: BHA design must start with detailed geological survey reports and real-time drilling feedback.
System Matching Rule: All components (drill bit, subs, motor, MWD) must work synergistically.
Dynamic Adjustment Rule: Adjust BHA combination or drilling parameters promptly based on drilling data (ROP, Torque, Vibration).
Prevention-Focused Rule: Plan lubrication points in advance for long-distance bores;reserve safety margins for complex formations.
Data-Driven Rule: Fully utilize MWD data for scientific decision-making, not just experience-based guesswork.
