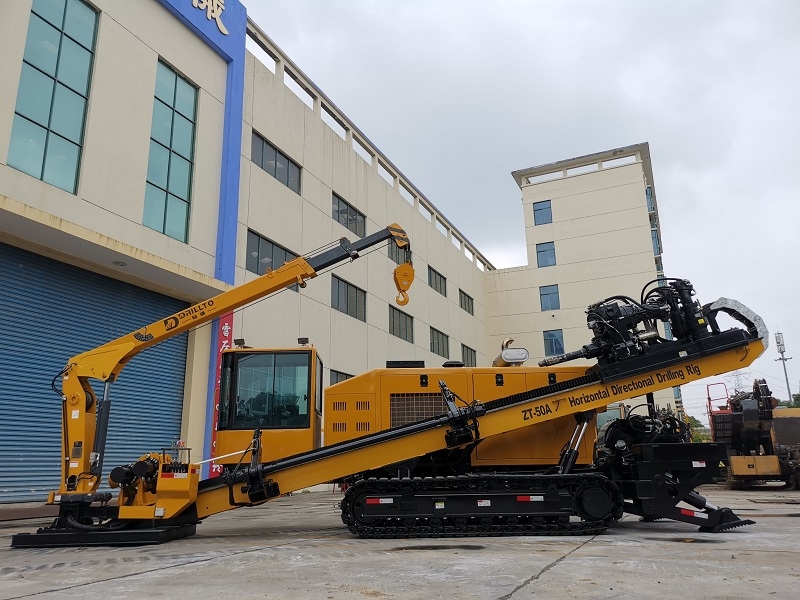

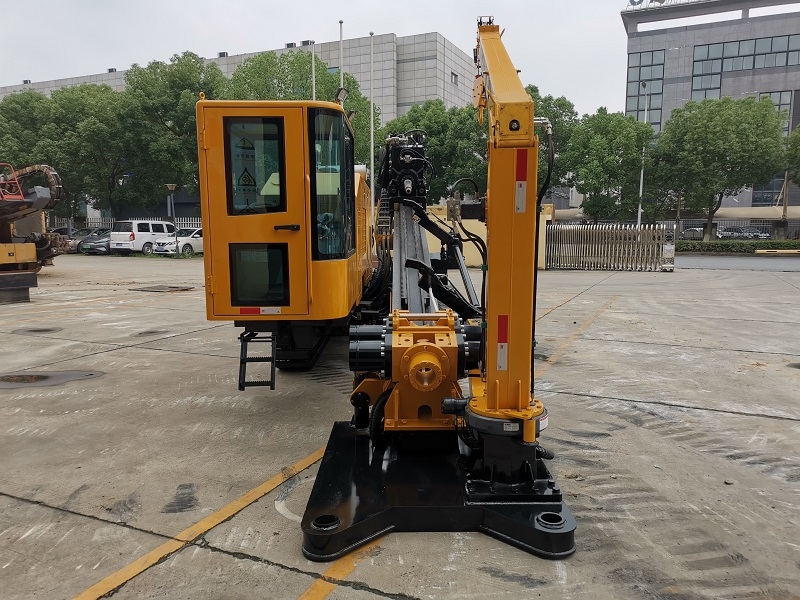

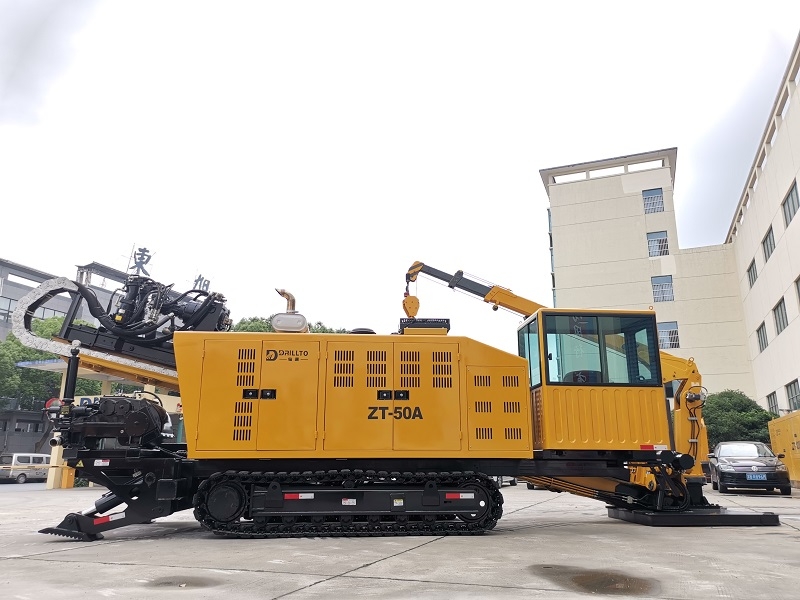

Used Drillto ZT-50A HDD Machine

Request Quote
Parameters

MaxTorque: 27500 N﹒m
Rotation Speed :160r/min(fast), 54r/min(slow)
Max Thrusting Force: 500KN
Max Pulling Force: 500KN
Thrusting&Pulling Speed: 40m/min
Walking Speed: 3.25km/h
Entry Angle: 8°～ 20°
Max Mud Pump Displacement: 600L/min
Rod Size:  Φ89mm×4500mm
Dimension (mm):  8500mm×2260mm×2550mm
Weight: 16T
Max Reamer Size:  Φ1000mm

Related Products

2020 ZT90-135

2020 ZT90-135

60 drill pipes with a diameter of 114 mm; reamers (400, 600, 800); pilot drill bits
2022 ZT-32

2022 ZT-32

80 drill pipes with a diameter of 73 mm, a pilot drill bit, a swivel, and reamers ranging from 200mm to 400mm.
2019 ZT-32/50

2019 ZT-32/50

ZT32-50F Hydraulic Cylinder-Powered Robotic Arm, Bare Unit

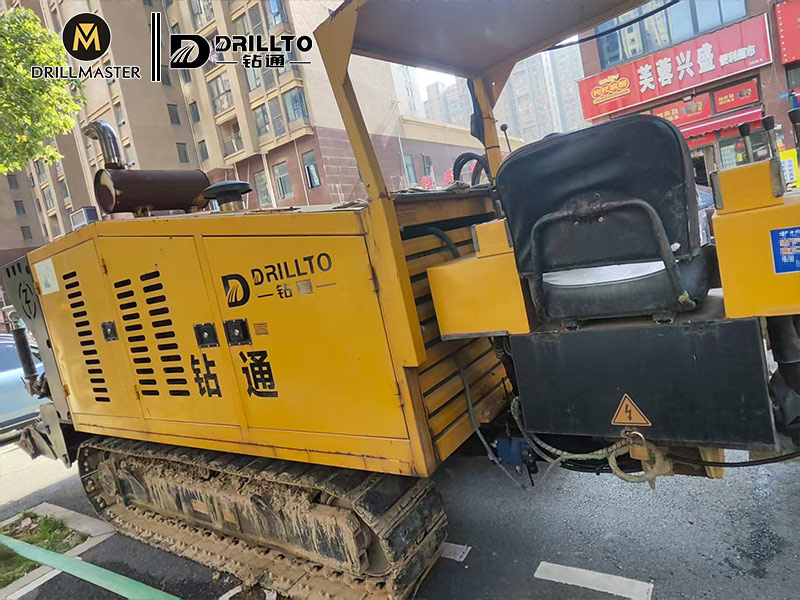

2021 ZT-33C
