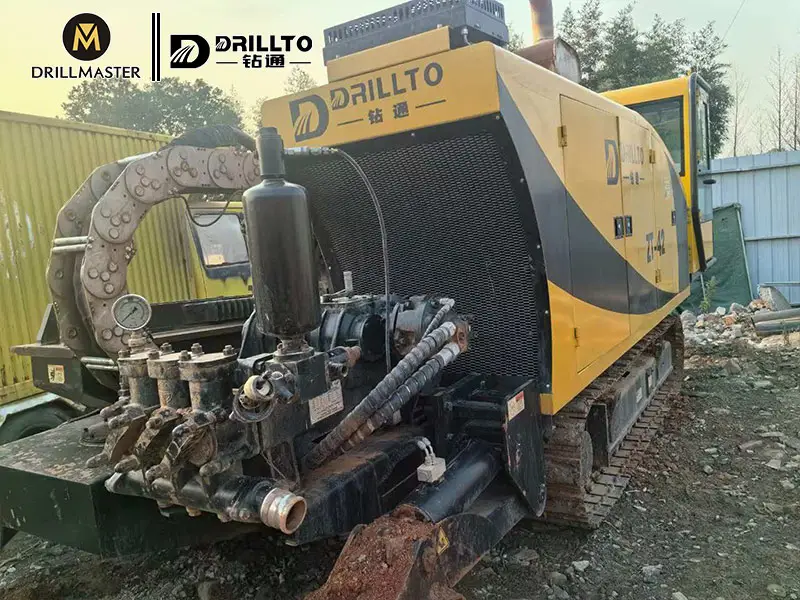

Used 2020 Drillto ZT-42 HDD Rig
For sale: Used 2020 Drillto 42 Ton HDD rig, ideal for medium to large-scale directional drilling projects. With only 1800 working hours, this rig is in excellent condition.
Introduction
For sale: Used 2020 Drillto 42 Ton HDD rig, ideal for medium to large-scale directional drilling projects. With only 1800 working hours, this rig is in excellent condition.
Key Features:
- Year: 2020
- Model: Drillto ZT-42
- Hours: 1,800 (actual, verified)
- Condition: Used, professionally maintained, ready for work
Included Tooling & Accessories:
- Drill Rods: 100 pieces of 83mm x 3000mm (3.27″ x 9.8′) integral drill rods – a generous inventory for extended reach and reduced handling.
- Reamers: A complete set of back reamers ranging from 300mm to 700mm (12″ to 28″) to accommodate a variety of pipe diameters.
- Pilot Bit: High-quality pilot bit for precise steering and efficient boring.
- Swivel: Heavy-duty swivel for smooth reaming and reliable operation.
Parameters
| Specification | Value |
|---|---|
| Model | ZT‑42 / ZT‑42A / ZT‑42F |
| Rated / Max Pull‑back Force | 420 / 840 kN |
| Rated / Max Thrust Force | 420 / 840 kN |
| Max Torque | 18500 N·m |
| Rotation Speed | 0‑165 rpm |
| Engine | Cummins 179 kW / 2200 rpm |
| Pull‑push Speed | 0‑50 m/min |
| Max Mud Pump Displacement | 450 L/min |
| Mud Pump Working Pressure | ≤8 MPa |
| Travel Speed | 2.3 km/h |
| Entry Angle | 8° ~ 20° |
| Operating Weight | 14000 kg |
| Overall Dimension (L×W×H) | 6980 × 2280 × 2500 mm |
| Drill Pipe Size | Φ83 × 3000 mm |
| Reamer Diameter Range | Φ200 ~ Φ900 mm |
