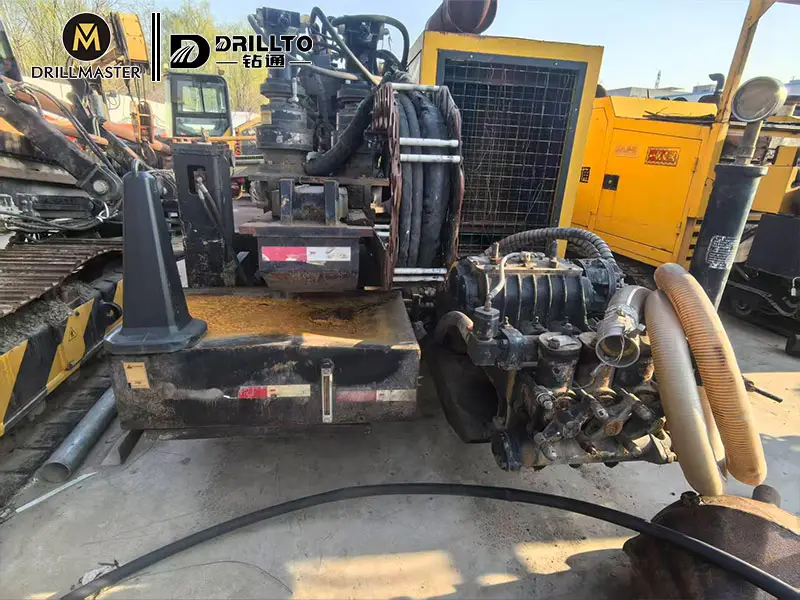

Used 2018 Dec Drillto ZT-40B HDD Rig
We are offering a used 2018 Drillmaster ZT-40B Horizontal Directional Drilling (HDD) Rig in excellent working condition, with just over 1500 working hours.
Introduction
We are offering a used 2018 Drillmaster ZT-40B Horizontal Directional Drilling (HDD) Rig in excellent working condition, with just over 1500 working hours.
Key Features
- Year: 2018 Dec
- Model: Drillto ZT-40B

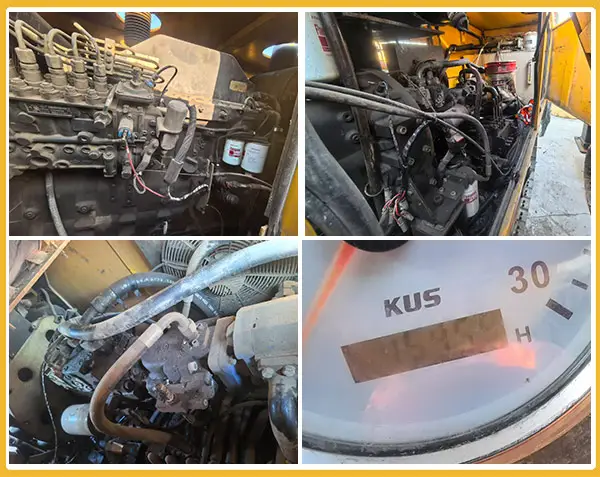

- Hours: 1,500+ (actual, verified)
- Condition: Used, professionally maintained, ready for work
Included Tooling & Accessories
- Drill Rods: 60 pieces of 73mm x 3000mm (2.87″ x 9.8′) drill rods – high-quality, good condition, ready to bore.
- Reamers: A comprehensive set of back reamers ranging from 300mm to 800mm (12″ to 31″) to accommodate various pipe diameters.
- Pilot Bit: Precision pilot bit for accurate steering and efficient boring.
- Swivel: Heavy-duty swivel for smooth reaming and dependable operation.
Parameters
| Specification | Value |
|---|---|
| Model | ZT‑40B |
| Rated Pull‑back Force | 400 kN |
| Rated Thrust Force | 400 kN |
| Max Spindle Torque | 17300 N·m |
| Rotation Speed | 0‑65 / 0‑130 rpm |
| Engine | Cummins 179 kW / 2200 rpm |
| Pull‑push Speed | 0‑48 m/min |
| Max Mud Pump Displacement | 450 L/min |
| Mud Pump Working Pressure | ≤10 MPa |
| Travel Speed | 2.4 km/h |
| Entry Angle | 8° ~ 20° |
| Operating Weight | 14500 kg |
| Overall Dimension (L×W×H) | 7100 × 2250 × 2500 mm |
| Drill Pipe Size | Φ83 × 3000 mm |
| Reamer Diameter Range | Φ200 ~ Φ900 mm |
Contact Us
We have thoroughly inspected and tested the Drillto ZT-40B. It is in excellent mechanical condition, and we can provide test run videos, detailed photos, and service records upon request.
This ultra-low-hour, well-equipped ZT-40B is a rare find. For a competitive price, additional details, or to schedule an inspection, please reach out.
