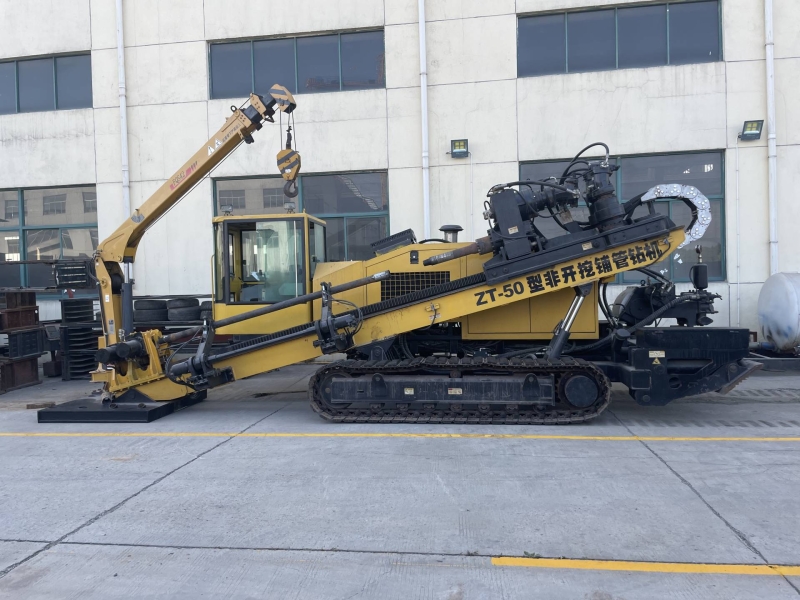

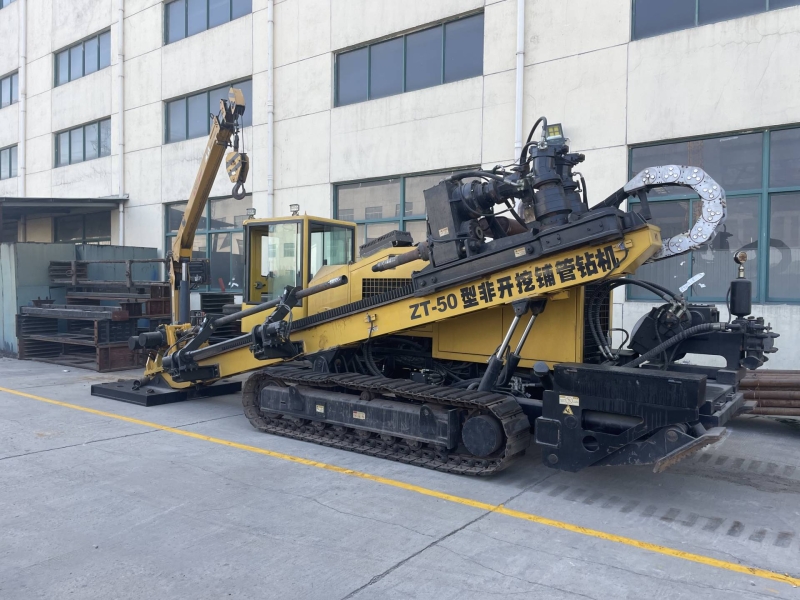

Drillto ZT50
Brand: DRILLTO
Model: ZT-50
Year of manufacture: 2019
Introduction
Brand: DRILLTO
Model: ZT-50
Year of manufacture: 2019
Description

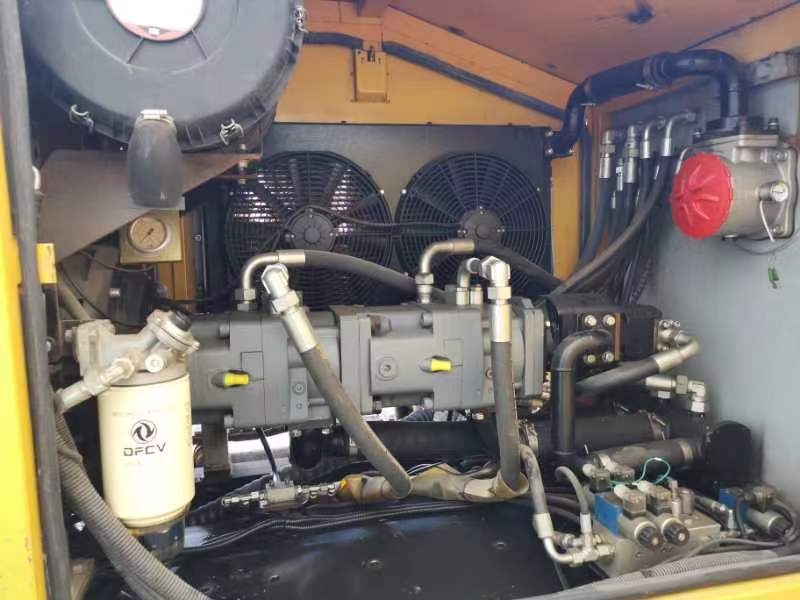

· The main pump uses a large-displacement variable piston pump with powerful continuously variable speed.
· The rotation adopts German Rexroth axial piston high-speed motor, which has strong impact resistance.
· The slewing reducer adopts Italian Bonfiglioli reducer with stable performance.

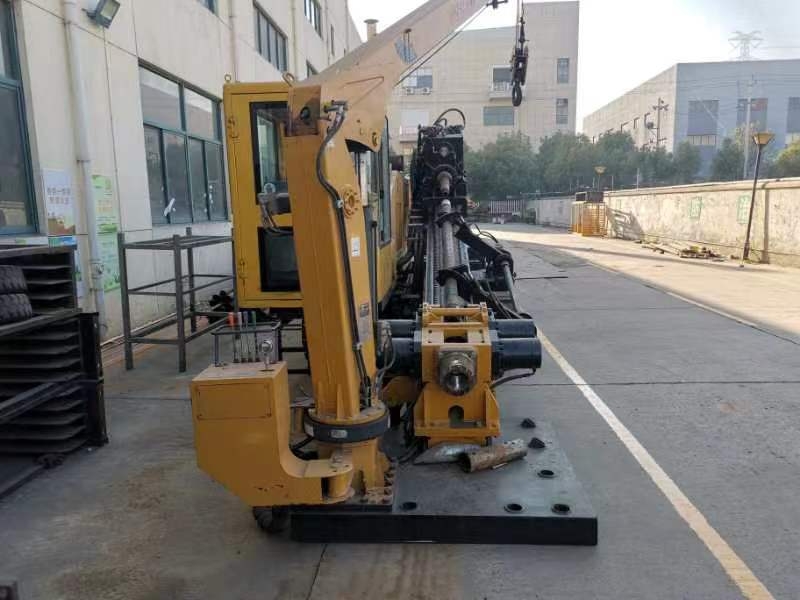

· The large-diameter clamp is not afraid of large torque, easy to release, and convenient for construction.
Parameters
| Specification | Value |
|---|---|
| Model | ZT-50 |
| Rated Pull‑back Force | 500 kN |
| Max Boost Pull‑back Force | 1000 kN |
| Rated Thrust Force | 500 kN |
| Max Boost Thrust Force | 1000 kN |
| Max Spindle Torque | 22000‑27500 N·m |
| Rotation Speed | 0‑170 rpm |
| Engine | Cummins 194 kW / 2200 rpm |
| Pull‑push Speed | 0‑50 m/min |
| Max Mud Pump Displacement | 600‑650 L/min |
| Mud Pump Working Pressure | ≤10 MPa |
| Travel Speed | 2.5‑3.25 km/h |
| Entry Angle | 8° ~ 20° |
| Operating Weight | 15000‑16500 kg |
| Overall Dimension (L×W×H) | 7350 × 2280 × 2350 mm |
| Drill Pipe Size | Φ89 × 3000 mm |
| Reamer Diameter Range | Φ300 ~ Φ1000 mm |
