When it comes to Horizontal Directional Drilling (HDD), the drill pipe is the critical backbone connecting your rig to the downhole tooling. Choosing the right drill pipe isn’t just about specifications—it’s about ensuring project efficiency, safety, and cost-effectiveness. This comprehensive guide dives into everything you need to know about HDD drill pipes, from material science to field maintenance.
High-performance starts with the right materials and processes.
Premium Steel Grade: Top-tier drill pipes, like those made from S135 steel, offer an exceptional balance of high strength, toughness, and fatigue resistance, essential for demanding HDD applications.

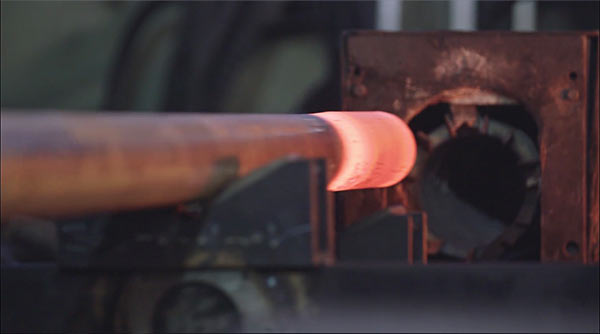

Superior Manufacturing: For diameters below φ102 mm, the highest standard is 1-Piece Forged construction. This seamless process creates a uniform, robust pipe with superior integrity. Larger diameters typically utilize Friction Welding, a high-quality method that joins the pipe body to forged tool joints with remarkable strength.

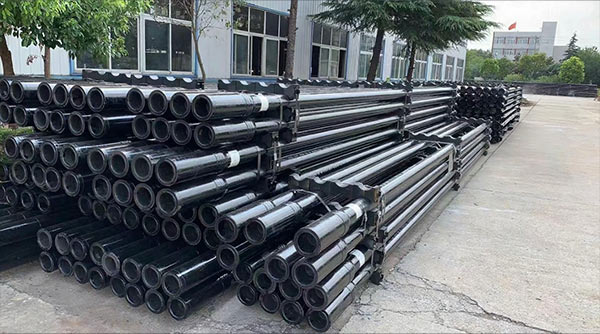

Matching drill pipe to your equipment is non-negotiable for optimal performance.
Small Rigs (5-45 tons): Commonly use 2-meter or 3-meter pipes for enhanced maneuverability and handling.
Medium Rigs (45-150 tons): Standard lengths include 3m, 4.5m, and 6m, offering a good balance of pullback power and setup flexibility.
Large Rigs (150+ tons): Often rely on 9.6-meter drill pipes to maximize efficiency and reduce connection time in large-scale, deep bores.
Not all drill pipes are created equal. Look for these hallmarks of excellence:

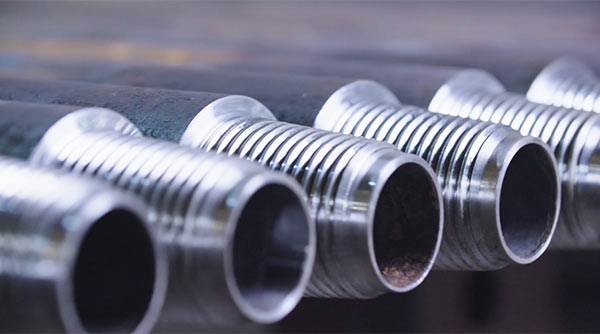

Precision Threading: Threads must be machined to exact tolerances for a secure, leak-free connection. Look for smooth engagement and consistent form.
Advanced Surface Treatment: Key durability features include Shot Peening (to induce compressive stress and resist fatigue cracks) and Thread Surface Nitriding (to dramatically increase surface hardness and wear resistance).
Robust Welding & Heat Treatment: For friction-welded pipes, the weld zone must be flawless and undergo proper post-weld heat treatment to relieve stresses and restore material properties.
When sourcing drill pipes, prioritize these five critical indicators:
Material Grade & Yield Strength: Specify high-grade steel like S135 for challenging conditions.
Manufacturing Process: Prefer 1-piece forging for smaller diameters; verify quality control in friction-welded joints for larger ones.
Hardness & Surface Treatment: Ensure proper bulk hardness and specialized surface treatments (nitriding, peening) are documented.
Dimensional Accuracy & Straightness: Critical for smooth operation and preventing premature wear.
Certification & Traceability: Reputable suppliers provide mill certificates and traceable heat numbers for quality assurance.
A: Lifespan varies widely based on geology, operating practices, and maintenance. A high-quality drill pipe under normal conditions can reliably last for hundreds of meters of drilling before requiring reconditioning or replacement.
A: Key prevention strategies include: using correctly matched drill heads, strictly controlling torque and thrust pressures, conducting regular inspections, and avoiding sustained overloading.
A: Focus on material grade, surface treatments, wall thickness, length compatibility with your rig, and the manufacturer's reputation for quality control.
Avoid these costly mistakes on your next project:
The False Economy of Low-Cost Products: Cheap drill pipes often lead to more frequent failures, resulting in high downtime, repair costs, and project delays.
Ignoring Geological Complexity: Failing to match the pipe's strength and toughness to ground conditions (e.g., hard rock, cobbles) can cause catastrophic failure.
Neglecting Maintenance: Skipping routine checks for thread wear, body damage, and proper lubrication is a primary cause of premature breakdowns.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pipe Breakage | Overload, weld fatigue, incorrect grade selection. | Use higher-grade steel (e.g., S135), implement precise torque/pressure control. |
| Thread Galling/Wear | Insufficient lubrication, improper make/break. | Always use specialized thread compound, adhere to correct torque procedures. |
| Bending/Deformation | Geological anomalies or operational impacts. | Replace damaged sections, review and optimize drill path planning. |
Proper maintenance is the single most effective way to extend service life and ensure safety.
Daily Inspection: Before each use, inspect the pipe body for cracks, dents, or corrosion. Examine threads for damage and seals for integrity. Never use a compromised pipe.
Thorough Cleaning & Lubrication: After operation, clean all soil and debris. Use a dedicated cleaner on threads and apply a high-quality thread grease to prevent rust and galling.
Correct Storage: Store pipes horizontally on a flat, dry surface, protected from the elements. Avoid excessive stacking and contact with sharp objects.
Scheduled Professional Maintenance: Periodically, conduct non-destructive testing (e.g., ultrasonic inspection). Monitor thread wear, replace seals, and retire pipes that have reached their service limit.
Investing in the right HDD drill pipe, based on a clear understanding of your project needs and a commitment to rigorous maintenance, pays dividends in project success. By focusing on quality materials, precise manufacturing, and proactive care, you maximize uptime, protect your investment, and drive your HDD operations forward efficiently and safely.
