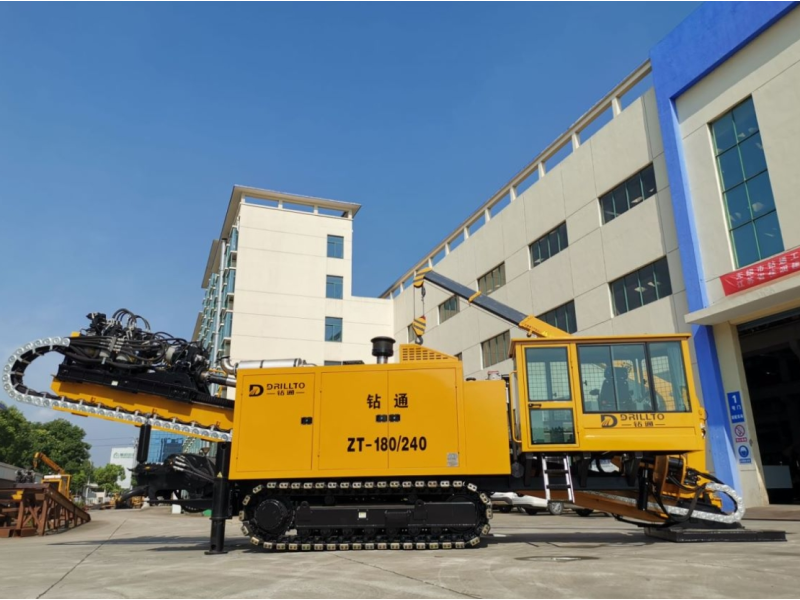

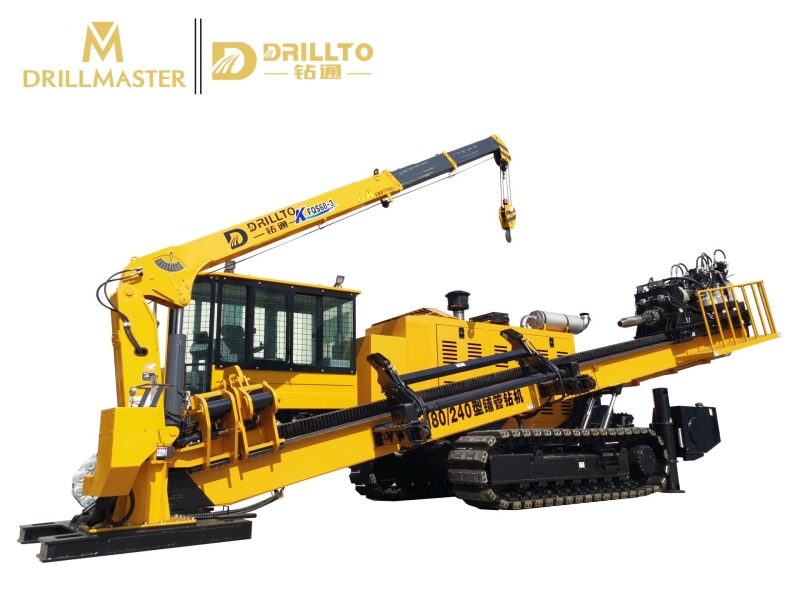

Name: ZT-180/240 Directional Bore Machines
SKU: 20
Rating: 5 (1019 reviews)

Description

Rotating and thrusting pump can be switched according to the construction speed requirements to improve construction effciency.

Parameters

Model	ZT-180/240
Max torque(N.m)	78000
Rotation speed(rpm)	0-110
Max pulling/thrusting force(kN)	1800/2400
Pulling speed(m/min)	0-42.7
Commins engine(kW/rpm)	373/2000
Max mud pump displacement(L/min)	850
Max mud pump pressure(Mpa)	10
Entry angle(degree)	8-18
Walking speed(km/h)	0-3
Weight(kg)	29000
Dimension(mm)	1210029002950
Rod size(mm)	φ127*6000
Reamer size(mm)	φ400-1500

Advantages

The one-to-three speed-increasing transfer case generate high-speed transmission when the engine is low speed, saving energy and reducing emissions and improving the performance of the engine and oil pump.
Both Rotation and thrusting-pulling are closed-circuit systems, with high volumetric efficiency, low loss, and stable and reliable transmission performance.
Equipped with an 11-inch artificial smart LCD operating system, easy to operate, intelligently store data, and can switch between multiple work pages.
