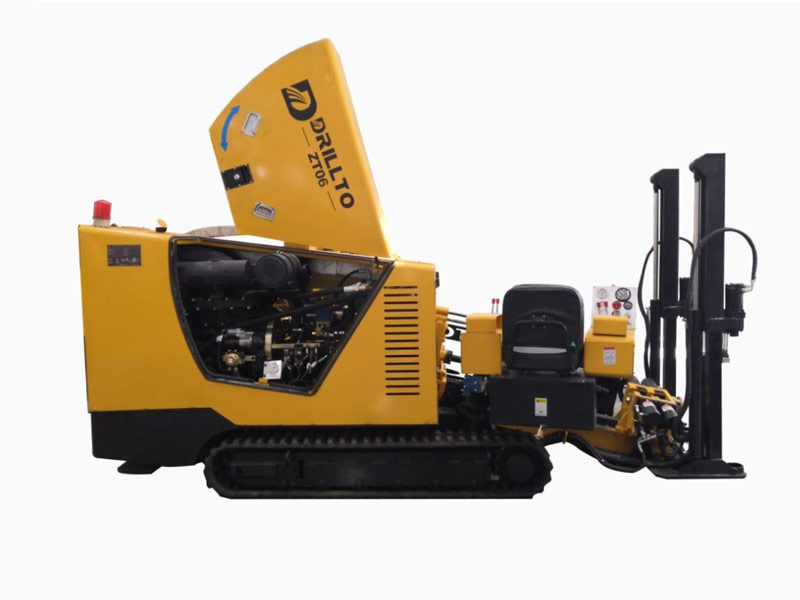

Name: ZT-6 Small HDD Machine
SKU: 23
Rating: 5 (1022 reviews)

Description

The rig is ingenious and compact, suitable for projects with limited construction area and short construction length. Double clamps unscrew and unload the drill pipe, high-speed up load of rods. Equipped with a drill rod support, which is convenient and safe for one-man operation.

Parameters

Model	ZT-6
Max torque(N.m)	2000
Rotation speed(rpm)	0-148
Max pulling/thrusting force(kN)	60
Pulling speed(m/min)	0-60
Yanmar engine(kW/rpm)	47.4/2200
Max mud pump displacement(L/min)	80
Max mud pump pressure(Mpa)	8
Entry angle(degree)	8-18
Walking speed(km/h)	2.15
Weight(kg)	3750
Dimension(mm)	414014001875
Rod size(mm)	φ50/φ42*1800
Reamer size(mm)	φ200-300

Advantages

Use Japanese YANMAR diesel engine,efficient and reliable, power curve matching machine model.
The manual drill rod box can hold 50 drill rods, and it is convenient to take the rods from box during work.
The mud pump is equipped with a push-pull device, and the structure is exquisite, and it can be pulled out during maintenance to ensure the small size of the machine.
