Breakout Unit For Directional Drilling | Drillto

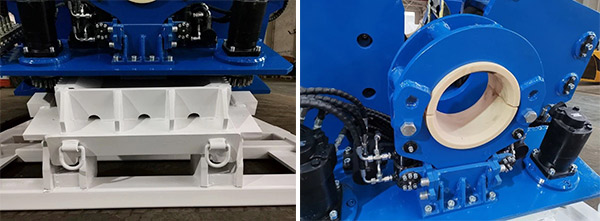

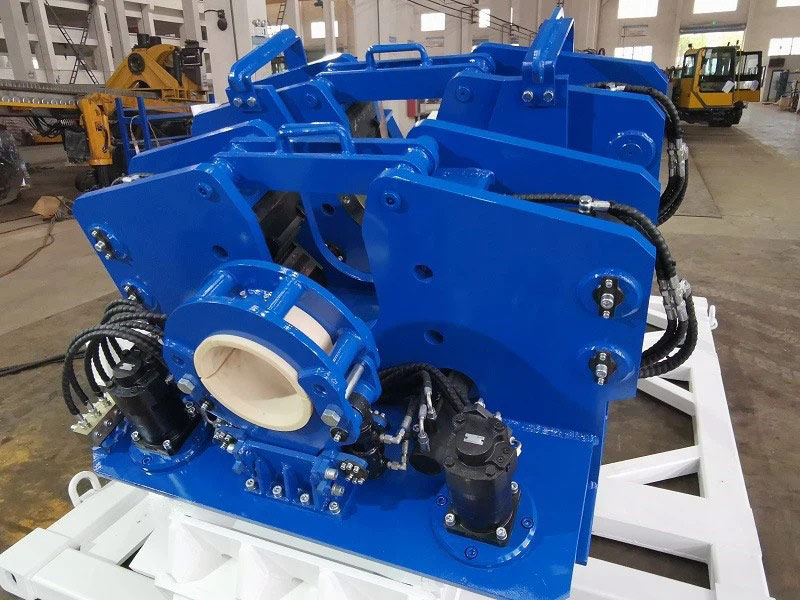

The Drillto Breakout Unit is a specialized piece of equipment designed for directional drilling operations. It plays a crucial role in the efficient and safe handling of drill pipes, enabling the connection and disconnection (make-up and break-out) of drill pipe joints during drilling projects. Engineered with advanced features, this unit is tailored to meet the demands of professional directional drilling applications, ensuring reliable performance and ease of use.

Key Features of the Drillto Breakout Unit

1. Powerful Shackle Torque for Reliable OperationEquipped with an impressive 150000Nm shackle torque, the Drillto Breakout Unit delivers the high force required to securely tighten or loosen drill pipe connections. This powerful torque output ensures that drill pipes are joined firmly, preventing leaks and ensuring stability during drilling, even in challenging subsurface conditions.

2. Adjustable Angle for Versatile PositioningWith an adjustable angle range of 0-15°, this breakout unit offers exceptional versatility in directional drilling setups. It can be easily adjusted to match the drilling angle, allowing for seamless integration into various drilling configurations and adapting to different project requirements, enhancing operational flexibility.

3. Wide Drill Pipe CompatibilityThe unit is compatible with drill pipes of φ168-φ194, making it suitable for a range of common drill pipe sizes used in directional drilling projects. This broad compatibility eliminates the need for multiple specialized units, reducing equipment costs and simplifying inventory management for drilling contractors.

4. Convenient Forward & Backward MovementDesigned with forward and backward movement capability, the Drillto Breakout Unit allows for easy positioning of drill pipes. Additionally, drill pipes can be placed on top of the unit, ensuring convenient and hassle-free operation. This design feature streamlines the drill pipe handling process, saving time and reducing the physical strain on operators.

5. Electric Drive for Easy Use & EfficiencyFeaturing an electric drive system, the unit is incredibly easy to use, with simple controls that minimize operator training time. Electric drive also offers benefits such as smooth operation, lower maintenance requirements compared to hydraulic systems, and reduced noise levels, creating a more comfortable working environment on the job site.

Technical Specifications

Contact our team today to get a customized quote. Provide details about your project requirements, such as the typical drill pipe sizes you use and project scale, and we’ll assist you in finding the perfect solution tailored to your needs.
