Hydrostatic Pipe Crusher S-80

The S-80 pipe crusher is a trenchless equipment for pipeline repair. It crushes the original old pipe and then re-lays a pipe with the same diameter.
It is suitable for old urban areas, without re-planning pipelines, energy-saving and environmentally friendly.

Description

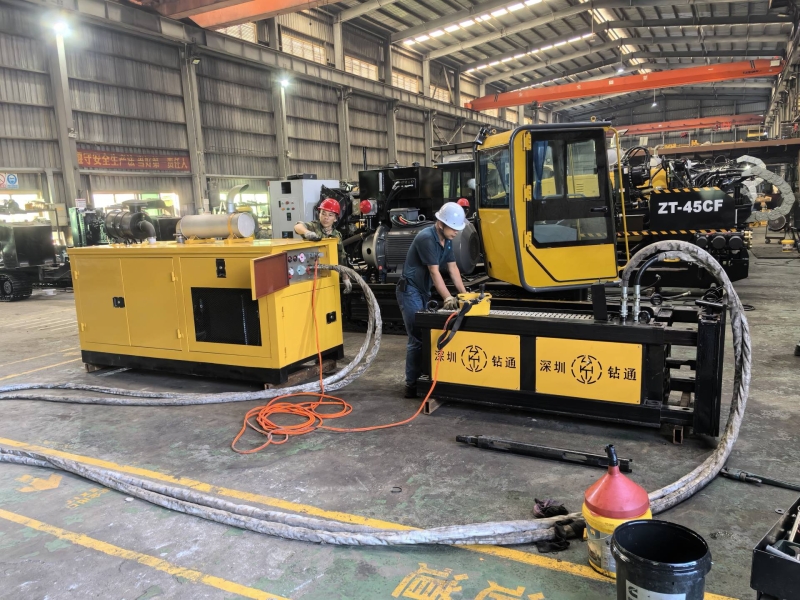

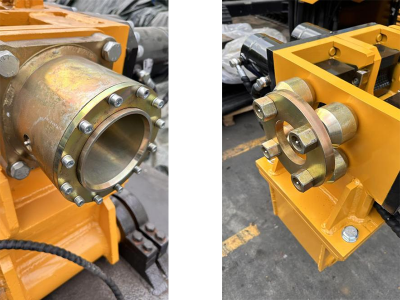

The S-80 static pressure pipe crusher consists of a main machine, a hydraulic system, a quick-release rod and a flexible guide rod, and several expanders of different diameters. The machine has a compact structure, can crush old pipes while laying new PE, steel pipes, and cement pipes, and has the characteristics of high efficiency and simple operation. It only requires a small working pit to operate.

Parameters

Model	S80A	S125A	S190A
Machine Dimension(mm)	2380980830	28001050800	280012001000
Machine Weight(kg)	2000	2600	2900
Thrust (250bar pressure)(kN)	400	700	900
Pulling (250bar pressure)(kN)	800	1250	1900
Maximum Expander Diameter(mm)	450	650	800
Maximum replacement PE pipe diameter(mm)	90-426	150-550	250-800
Engine	Diesel engine	Diesel engine	Diesel engine
Output Power	75KW，2200rpm	110KW，2200rpm	110KW
Power Station Weight(kg)	1500	2000	1830
Power Station Dimension(mm)	26001001550	26001001400	300015001400

Advantages

● New durability brought by updates
● Inestimable economic and environmental protection
● Can be replaced with new pipes such as PVC, PE, steel pipes, cement pipes of the same or larger diameter
● Applicable to sewage pipes, drainage pipes, gas, water and other pressure pipes
● The same set of equipment is suitable for a variety of different pipe diameters
● Trenchless construction, saving costs

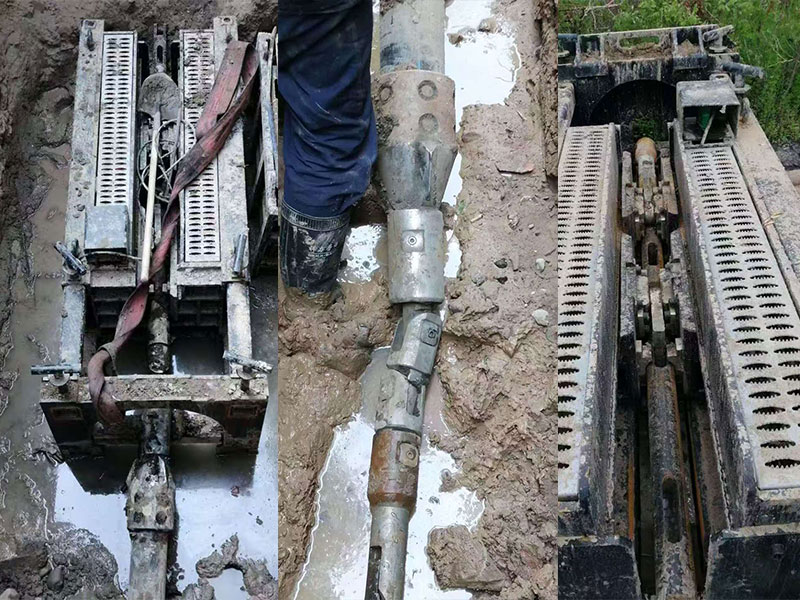

Cases
