Wireless Locating System
1. Features a high-precision, high-interference-resistant Faraday-shielded 3D antenna structure.
2. Industrial gold-plated antenna signal aluminum foil shaping module.
3. High-performance dual-core logic DSP.
4. 2-in-1 guidance system; two independent guidance units provide higher accuracy and reliability.
Introduction
1. Features a high-precision, high-interference-resistant Faraday-shielded 3D antenna structure.
2. Industrial gold-plated antenna signal aluminum foil shaping module.
3. High-performance dual-core logic DSP.
4. 2-in-1 guidance system; two independent guidance units provide higher accuracy and reliability.
Features
2-in-1 dual positioning system; dual high-precision, high-interference-resistant Faraday-shielded 3D antennas; utilizes a high-performance dual-core DSP; imported industrial gold-plated aluminum foil antenna signal shaping module; advanced FM signal transmission and reception for enhanced interference resistance; incorporates high-tech MEMS (Micro-Electro-Mechanical Systems) technology, providing 0.1% tilt resolution suitable for underwater engineering; 4 radio channels with a transmission range of up to 1,200 meters; a rugged, lightweight, and ergonomically designed housing that protects electronic components, provides waterproofing, and reduces operator fatigue; Flash memory technology enables timely software updates; a simple and intuitive user interface makes the receiver easier and more convenient to use.
Configuration

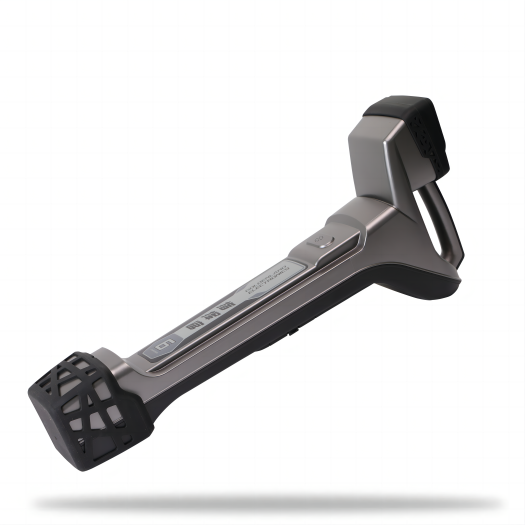

Receiver Specifications
System Frequencies: 16 frequencies; 0.32K~41K
Compatible Sonde: XNEEDLE / CTX1 / CTX2S / CTX50 / CTX70 / ECHO50X / ECHO50XF / ECHO75XF
Protection Class: IP65
RF Channels: 4
Data Communication Range: 1200 m
Rechargeable Lithium Battery: 12.5 V
Battery Life: 50 h
Dimensions: (68.51330) cm

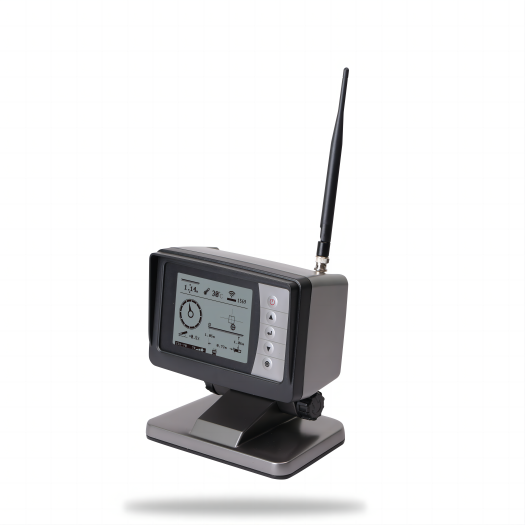

Remote Display Specifications
RF Channels: 4
Communication Range: 1200 m
Power Supply: Rechargeable Lithium Battery
Operating Voltage: 12.5 V
Battery Life: 50 h
Display: 5-inch LCD Screen
Dimensions: (191319) cm
Protection Class: IP65
Weight: 1.5 kg

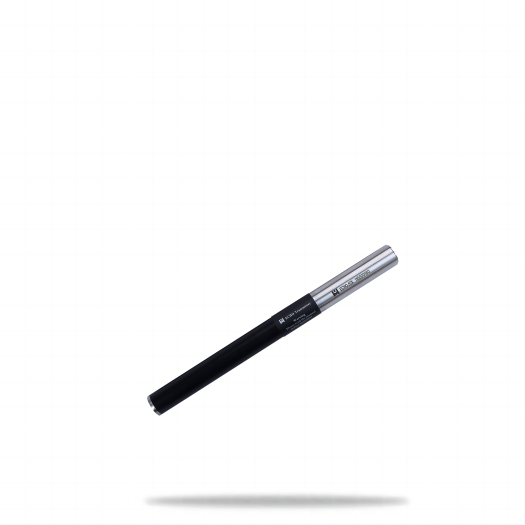

Sonde Specifications: ECHO50X
Transmitting Frequencies: 16 system frequencies; K32~41KHz
Power Supply: Built-in 21700 rechargeable lithium battery / 261020 high-power lithium battery
Battery Life:
21700 (4.2v): 6.5h @ Boost Mode, 25h @ Normal Mode
261020 (3.6v): 15.5h @ Boost Mode, 64h @ Normal Mode
Detection Depth: 40m @ Normal Mode, 50m @ Boost Mode
Operating Temperature: Below 100°C
Waterproof Rating: IP67
Dimensions: Φ3.2*38 (cm)
Normal V.BAT Range: 2.8v~4.2
Related Products
DigiTrak Falcon F5+ HDD Locator
Features Unmatched Frequency Range: Packed with over 1000 frequencies, the Falcon F5+ scans and selects the optimal signals for your job site, ensuring reliability even in interference-prone environments (like near cell towers or traffic loops). It supports dual-band drilling and mid-bore frequency switching, a game-changer for complex HDD projects. Deep Tracking Capabilities: With a transmitter […]
Mag 9 Wireless HDD Locating System
Key Features & Benefits · High-Precision 3D Antenna & Advanced DSP Utilizing a high-interference, Faraday-shielded three-dimensional antenna structure, the Mag 9 ensures a strong, stable signal. Coupled with a high-performance Digital Signal Processor (DSP), it delivers pinpoint accuracy, minimizing the risk of deviated bores even in electrically noisy environments. · Exceptional Depth & Unmatched Probe […]

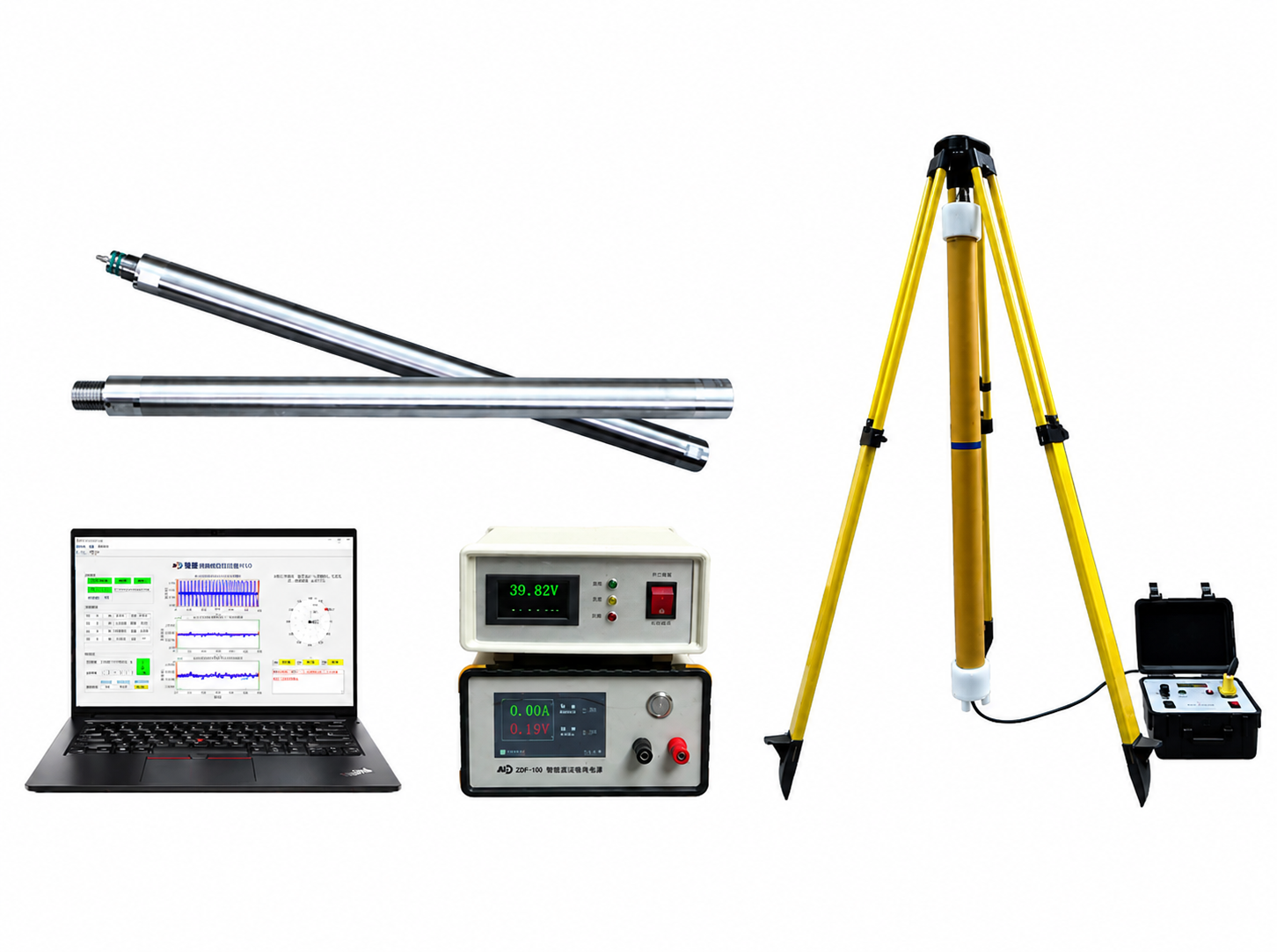

Smartdrill Wireline Magnetic Guidance System
