Transmitter
The HDD Sonde (Transmitter) is the core locating component for horizontal directional drilling. Installed inside the drill head housing, it emits continuous electromagnetic signals. Operators use a surface locator receiver to track real-time drill data: depth, pitch, roll and horizontal position, to steer the bore path and avoid existing underground utilities.
Introduction
The HDD Sonde (Transmitter) is the core locating component for horizontal directional drilling. Installed inside the drill head housing, it emits continuous electromagnetic signals. Operators use a surface locator receiver to track real-time drill data: depth, pitch, roll and horizontal position, to steer the bore path and avoid existing underground utilities.
Used for trenchless horizontal directional drilling (HDD) pipeline crossing projects (underground installation of fiber-optic cables, gas lines, and water supply and drainage pipes).
A probe is installed inside the drill bit and continuously emits electromagnetic signals; a ground-based guidance system receiver captures these signals to provide real-time readings of the drill bit’s:
· depth underground, horizontal position,
· inclination, and azimuth (to determine the drill bit’s orientation, enabling the driller to adjust the drilling path).
Related Products
Wireless Locating Guidance
Features 2-in-1 dual positioning system; dual high-precision, high-interference-resistant Faraday-shielded 3D antennas; utilizes a high-performance dual-core DSP; imported industrial gold-plated aluminum foil antenna signal shaping module; advanced FM signal transmission and reception for enhanced interference resistance; incorporates high-tech MEMS (Micro-Electro-Mechanical Systems) technology, providing 0.1% tilt resolution suitable for underwater engineering; 4 radio channels with a transmission […]
DigiTrak Falcon F5+ HDD Locator
Key Features & Benefits Unmatched Frequency Range: Packed with over 1000 frequencies, the Falcon F5+ scans and selects the optimal signals for your job site, ensuring reliability even in interference-prone environments (like near cell towers or traffic loops). It supports dual-band drilling and mid-bore frequency switching, a game-changer for complex HDD projects. Deep Tracking Capabilities: […]
Wireline Magnetic Guidance System
Product Introduction The Smart™ Magnetic Guidance System probe is the core of precise Horizontal Directional Drilling. This state-of-the-art steering tool delivers critical, real-time survey data to your operator, enabling flawless navigation underground. Designed to function as a robust receiver for both AC guide wire and beacon tracking systems, it is the versatile and reliable solution […]

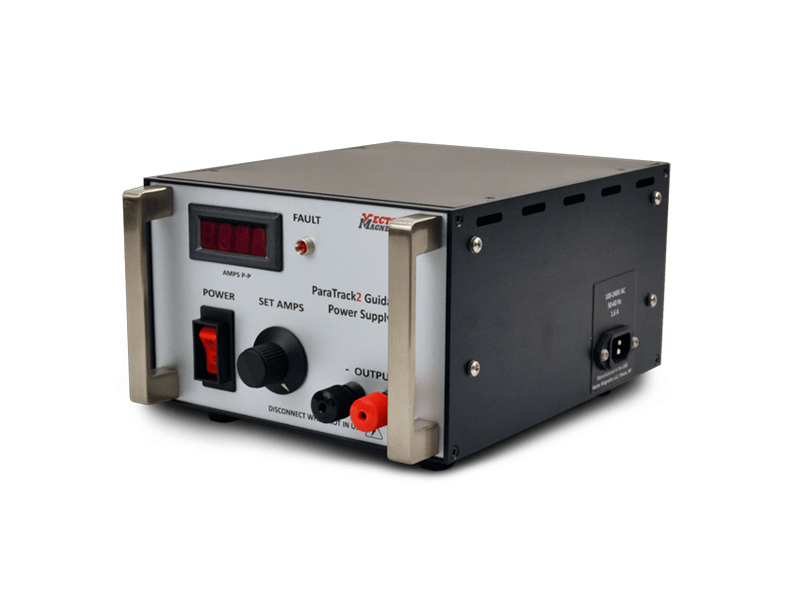

ParaTrack 2 HDD Guidance System
Product Introduction The ParaTrack 2™ is a fast and accurate secondary tracking system designed for Horizontal Directional Drilling (HDD). In an industry where precision is paramount, the ParaTrack 2™ delivers trusted accuracy, minimizing risk and maximizing operator confidence on every job. It provides critical, independent verification of your bore path, ensuring your project stays on […]
