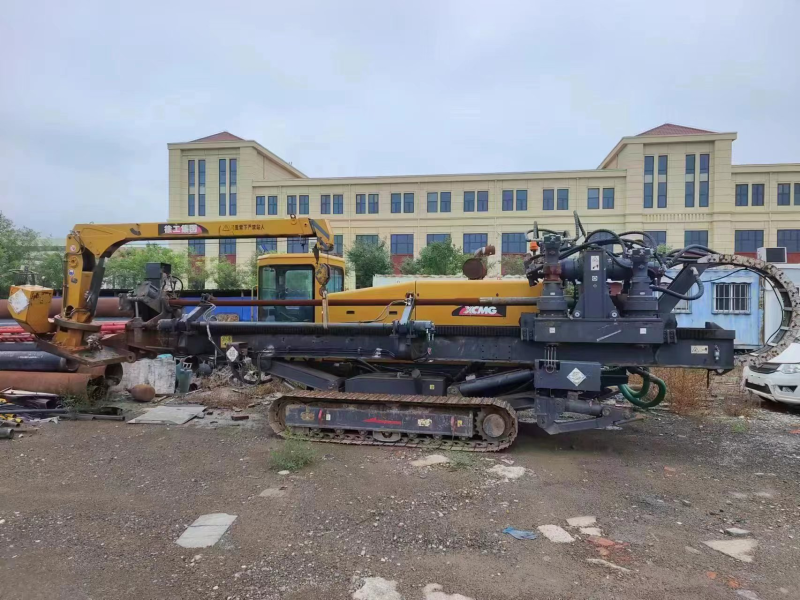

XCMG XZ450PLUS
Brand: XCMG
Model: XZ450PLUS
Year of manufacture: 2018
Used hour: 2056h
Parts list: 100 pcs 89mm×4.5m drill pipe, 400.500.600.700.800.900 hole expander each one, 1 set pilot drill bits, 1 transfer case
Introduction
Brand: XCMG
Model: XZ450PLUS
Year of manufacture: 2018
Used hour: 2056h
Parts list: 100 pcs 89mm×4.5m drill pipe, 400.500.600.700.800.900 hole expander each one, 1 set pilot drill bits, 1 transfer case
Dscription
· It adopts a number of advanced control technologies such as closed energy-saving circuit, hydraulic pilot control, load-sensitive control, etc. to save energy and reduce consumption, and the operation is flexible and comfortable.
· Push-pull gear and rack, the transmission is stable and reliable, and the main shaft of the power head is floating to extend the service life of the drill pipe thread;
· The optional power-increasing power head can realize the function of doubling the back-to-back drag force of the power head to meet special construction needs;
· The fuselage is small in size and meets the requirements of container transportation;
· Wire-controlled walking system ensures safe walking.
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ450Plus |
| Max Thrust‑Pull Force | 960 kN (96 ton) XCMG |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑28 m/min |
| Max Rotary Torque | 27 000 N·m |
| Spindle Speed | 0‑135 rpm |
| Engine Model | Cummins 6CTA8.3‑C260 / QSC8.3‑C260 |
| Engine Rated Power | 194 kW / 2200 rpm |
| Mud Pump Flow | 450‑600 L/min（optional） |
| Mud Pump Pressure | 8‑10 MPa |
| Drill Pipe Size | Φ89 mm × 4500 mm |
| Recommended Reaming Diameter | Φ300‑1000 mm |
| Entry Angle Range | 10°‑20° |
| On‑board Crane | 2 ton |
| Operating Weight | 13 500 kg (13.5 ton) |
| Overall Dimension (L×W×H) | 8800 × 2280 × 2640 mm |
