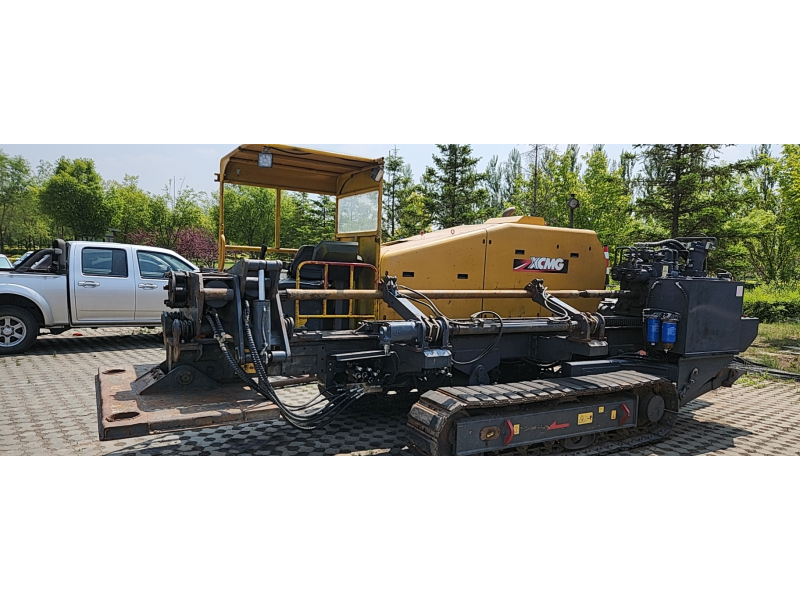

XCMG XZ320E
Brand: XCMG
Model: XZ320E
Year of manufacture: 2019
Used hour: 3300h
Parts list: 100 pcs 73mm×3m drill pipe, 300.400.500.600 hole expander each one, 1 set pilot drill bits, 1 transfer case
Introduction
Brand: XCMG
Model: XZ320E
Year of manufacture: 2019
Used hour: 3300h
Parts list: 100 pcs 73mm×3m drill pipe, 300.400.500.600 hole expander each one, 1 set pilot drill bits, 1 transfer case
Dscription
· The single-handle hydraulic control pilot system provides the whole machine with comfortable operating performance and flexible adjustment performance. Hydraulic components ensure the operational reliability of the whole machine’s hydraulic system.
· The double floating technology of power head and vise can greatly protect the drill pipe thread and increase the service life of the drill pipe.
· High and low speed push-pull rotation system, the plunger variable motor realizes high and low speed push and pull of the power head, increasing the adaptability of the drilling rig to working conditions and improving the drilling rig construction efficiency
· A large space heating and air-conditioning cab is optional, and the main engine is equipped with cold start, mud antifreeze, cleaning and other devices to ensure the adaptability of the main engine to construction in cold areas.
· Flexible and diverse configurations
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ320E |
| Max Thrust‑Pull Force | 345 kN（34.5 ton） |
| Drive Type | Pinion & Rack |
| Max Push‑Pull Speed | 0‑36 m/min |
| Max Rotary Torque | 12 600 N·m |
| Rotation Drive | Four‑motor |
| Spindle Speed | 0‑140 rpm |
| Engine (China‑II) | Cummins 6BTAA5.9‑C205，153 kW / 2200 rpm |
| Engine (China‑III) | Cummins QSB5.9‑C210，154 kW / 2200 rpm |
| Engine (EU Stage IIIA) | Cummins QSB6.7‑C220，164 kW / 2200 rpm |
| Mud Pump Flow | 320 L/min |
| Mud Pump Pressure | 8 MPa |
| Drill Pipe Size | Φ73 mm × 3000 mm |
| Recommended Reaming Diameter | Φ200‑800 mm |
| Max Entry Angle | 20° |
| Machine Weight | 10 500 kg（10.5 ton） |
| Dimension (L × W × H) | 6200 × 2280 × 2450 mm |
