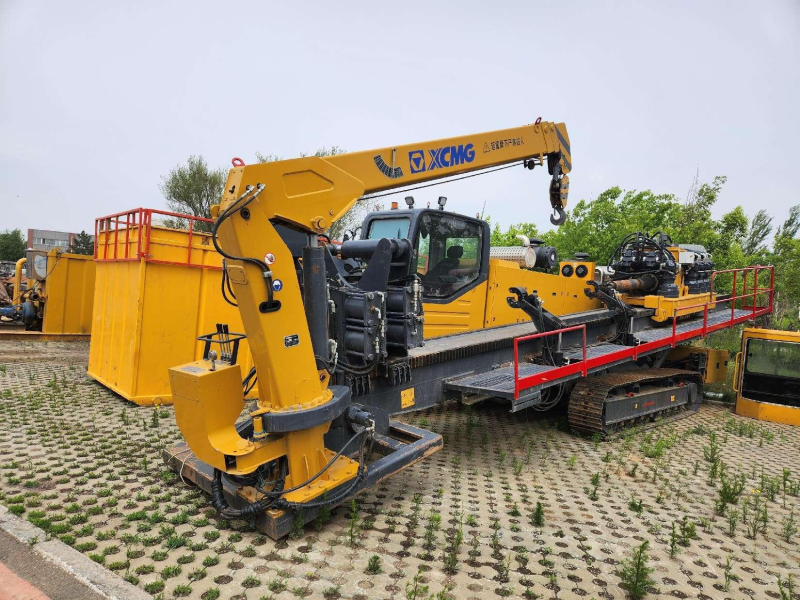

XCMG XZ2200
Brand: XCMG
Model: XZ2200
Year of manufacture: 2021
Used hour: 600h
Parts List: 150 pces Ф127.NC50 buckle × 6 meters drill pipe, 1 each of 450.600.750.900.1050.1200 reamer, 1 set of pilot drill bits, 1 transfer case, 1 elephant mud pump 1500L, 20m³ mud mixing, 100m³ mud vibrating screen
Introduction
Brand: XCMG
Model: XZ2200
Year of manufacture: 2021
Used hour: 600h
Parts List: 150 pces Ф127.NC50 buckle × 6 meters drill pipe, 1 each of 450.600.750.900.1050.1200 reamer, 1 set of pilot drill bits, 1 transfer case, 1 elephant mud pump 1500L, 20m³ mud mixing, 100m³ mud vibrating screen
Parameters
| Item | Specification |
|---|---|
| Model | XCMG XZ2200 |
| Max Thrust‑Pull Force | 2200 kN (220 ton) |
| Drive Type | Hydraulic Cylinder Drive |
| Max Push‑Pull Speed | 0‑35 m/min |
| Max Rotary Torque | 75 000 N·m |
| Spindle Speed | 0‑90 rpm |
| Engine Model | Dual Cummins QSL8.9‑C325 |
| Engine Rated Power | 2×242 kW = 484 kW / 2100 rpm |
| Mud Pump | External independent mud system（External Mud Pump） |
| Recommended Reaming Diameter | Φ600‑1500 mm |
| Drill Pipe Size | Φ127 mm × 6000 mm |
| Entry Angle Range | 8°‑16° |
| On‑board Crane Capacity | 3.2 ton（6.4 t·m） |
| Operating Weight | 31 000 kg (31 ton) |
| Overall Dimension (L×W×H) | 12700 × 3030 × 3500 mm |
| Travel Speed | 0‑1.5 km/h |
