Understanding HDD Reamer Types: Choosing the Right Tool for Your Project

What is an HDD Reamer?

Horizontal Directional Drilling (HDD) is a highly effective technique for installing underground utilities without disturbing the surface. A key tool in this process is the HDD reamer, a device used to enlarge a pilot hole to the desired size for the installation of pipes, cables, or other utilities. The choice of reamer type can significantly impact the efficiency and success of the project.

Common Types of HDD Reamers

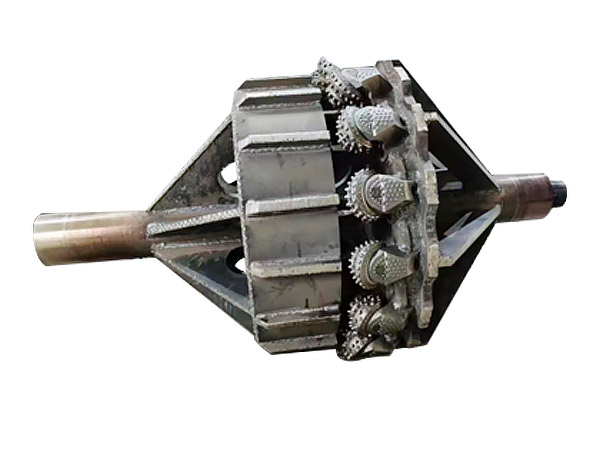

1. Rock Reamer: Built for Tough Geology

• Soil Types: Hard rock layers, dense soil
• Design Features: Rock reamers are engineered with heavy-duty, robust cutters designed to break through tough geological formations like rock and hard soil. They typically feature specialized carbide tips and large, durable blades.
• Applications: Ideal for drilling through rock and dense layers, commonly used in large-scale underground projects like utility installation in rocky terrains or under highways.

2. Fluted Reamer: Best for Soft and Loose Soils

• Soil Types: Soft soils, clay, sandy soils
• Design Features: Fluted reamers have spiral-shaped blades that efficiently remove soil while expanding the pilot hole. The spiral design allows for smooth soil extraction and creates a well-rounded hole.
• Applications: Perfect for use in soft or loose soil conditions. Common in projects where high-speed soil removal and precise hole expansion are essential.

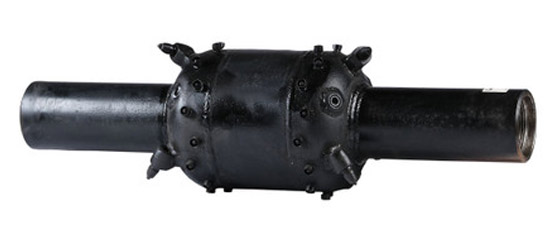

3. Barrel Reamer: Expanding the Hole for Larger Installations

• Soil Types: All soil types, especially when hole expansion is needed
• Design Features: Barrel reamers are cylindrical in shape and designed to expand existing pilot holes significantly. They come in various sizes and are commonly used to make room for larger pipes or cables.
• Applications: Used in projects that require substantial hole expansion, such as installing large pipelines or high-capacity cables. Barrel reamers are essential in the oil and gas industry, as well as large-scale infrastructure projects.

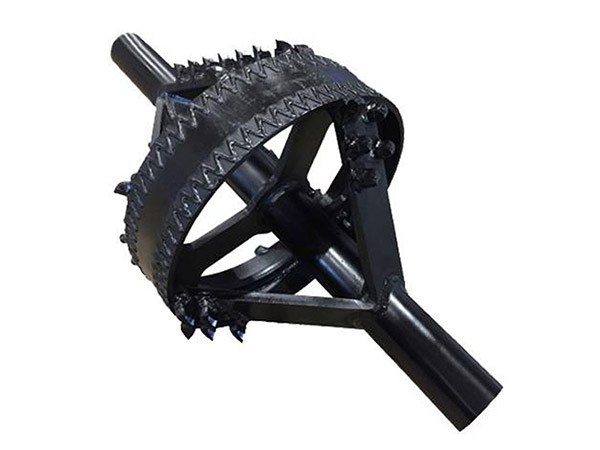

4. Fly Cutter Reamer: Precision and Versatility

• Soil Types: Multiple soil types, particularly when precise hole sizes are necessary
• Design Features: Fly cutter reamers have adjustable blades that allow for fine control over hole size. Their precision makes them suitable for projects where exact measurements and smooth surfaces are required.
• Applications: Frequently used in projects that demand accuracy, such as telecommunications or utility installations where precision is crucial.

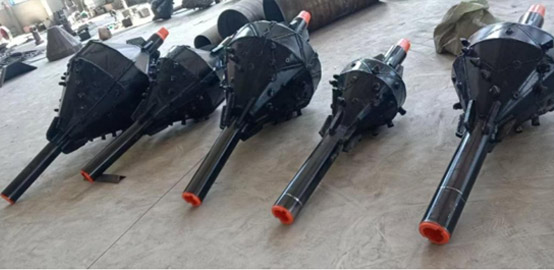

5. Compact Reamer: Ideal for Small Projects and Tight Spaces

• Soil Types: Soft to medium soils, unstable soil
• Design Features: Compact reamers are smaller and lighter, designed for use in confined spaces or projects with time constraints. They provide rapid hole expansion and enhance borehole stability in loose soil.
• Applications: Excellent for small-scale projects, urban areas, or situations where limited equipment space is available, making them ideal for residential or commercial applications.

How to Choose the Right HDD Reamer Type?

Choosing the correct reamer type is critical to the success of your HDD project. Below are key factors to consider when making your decision:

1. Soil Type

• If you’re working in rocky or hard soil, opt for a Rock Reamer for its ability to cut through tough materials.
• For loose, sandy, or soft soil, a Fluted Reamer will help clear the hole efficiently without clogging.

2. Hole Size Requirements

• If you need to increase the hole size significantly, a Barrel Reamer is the best choice. It’s designed to expand the pilot hole to accommodate larger pipes or cables.
• For smaller hole expansion with precision, a Fly Cutter Reamer would be ideal, especially in situations requiring exact measurements.

3. Project Type and Scale

• For large-scale projects or when drilling through challenging geological conditions, a Rock Reamer or Barrel Reamer will provide the durability and performance needed.
• For quicker, smaller projects or urban drilling, consider a Compact Reamer that can handle tight spaces and quick turnarounds.

Innovations in HDD Reamers

As HDD technology evolves, so does the design of HDD reamers. Some notable innovations include:

• Advanced Cutter Materials: Modern reamers often feature cutting blades made from high-performance materials, such as tungsten carbide, which significantly increases durability and extends tool life.
• Adjustable Blades: Many reamers now come with adjustable blade systems, allowing for greater flexibility in hole size management.
• Self-Cleaning Designs: Newer reamer designs incorporate self-cleaning mechanisms, ensuring that debris does not clog the tool and hindering drilling progress.

These advancements help to improve the efficiency of HDD projects and reduce maintenance costs.

Buying Guide for HDD Reamers

When purchasing an HDD reamer, there are several considerations to keep in mind:

• Quality vs Cost: While it may be tempting to go for cheaper options, investing in high-quality reamers can save money in the long run due to their durability and performance.
• Brand Reputation: Choose reamers from reputable manufacturers with a proven track record of producing reliable tools.
• Project-Specific Needs: Make sure to select the right reamer type based on the specific soil conditions, hole size requirements, and scale of your project.

Top HDD Reamer Brands

• Vermeer: Known for high-quality HDD equipment, including rock and fluted reamers.
• Ditch Witch: Offers a wide range of HDD tools, including compact and barrel reamers.
• Trenchless Technology: Specializes in innovative reamers, including adjustable blade systems.

Selecting the right HDD reamer type is crucial for ensuring that your drilling project goes smoothly and efficiently. By understanding the different reamer types, such as Rock Reamers, Fluted Reamers, and Barrel Reamers, and considering factors like soil type and hole size requirements, you can make an informed decision that will help you achieve optimal results.
