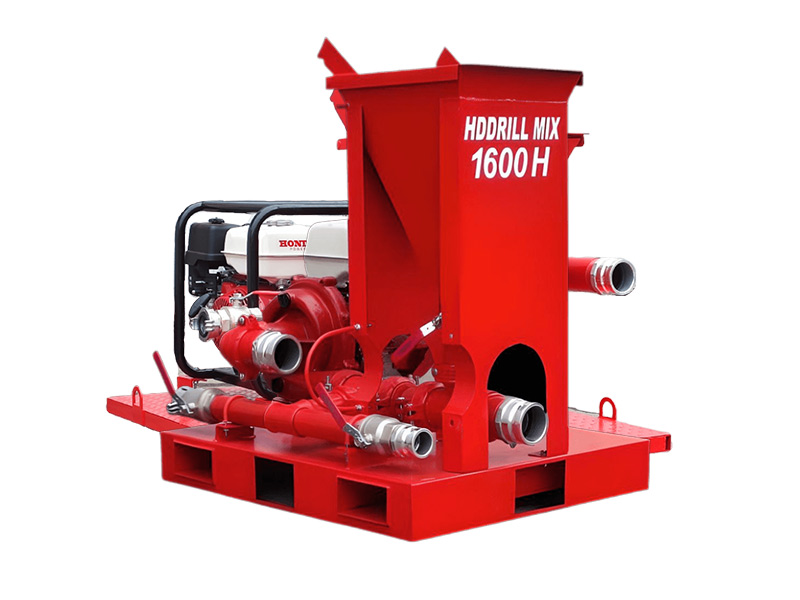

Bentonite Jet-Mixing System
The Bentonite Jet-Mixing System is a high-performance, integrated solution designed for the rapid, uniform, and reliable preparation of bentonite slurry (drilling mud). By utilizing a powerful jet-mixing principle, it seamlessly combines powdered bentonite with water or other fluids to achieve the precise density and viscosity required for demanding engineering applications. This system is indispensable for operations requiring large-volume, continuous, or on-demand slurry production, making it a cornerstone technology for Horizontal Directional Drilling (HDD), foundation drilling, tunneling, and slurry wall construction.
Introduction
The Bentonite Jet-Mixing System is a high-performance, integrated solution designed for the rapid, uniform, and reliable preparation of bentonite slurry (drilling mud). By utilizing a powerful jet-mixing principle, it seamlessly combines powdered bentonite with water or other fluids to achieve the precise density and viscosity required for demanding engineering applications. This system is indispensable for operations requiring large-volume, continuous, or on-demand slurry production, making it a cornerstone technology for Horizontal Directional Drilling (HDD), foundation drilling, tunneling, and slurry wall construction.
Key Features:
- Rapid Mixing & High Efficiency: The system is engineered to deliver fast, homogeneous mixing of bentonite with water or other liquids, ensuring high-quality slurry every time.
- Versatile & Scalable: Available in various models and capacities ranging from 45 m³/h to 320 m³/h, this system can cater to both small and large-scale operations.
- Optimized for HDD Projects: Particularly effective for Horizontal Directional Drilling (HDD), where continuous and consistent slurry production is crucial for project success.
- Mud Hopper & Jet Mud Mixer: The system includes advanced Mud Hopper and Jet Mud Mixer models, offering flexible operation options to meet specific requirements in drilling operations.
- Durable and Reliable: Built to withstand tough environmental conditions, this system offers long-lasting reliability, making it an essential tool for engineers and construction managers.
- Wide Range of Model Options: From GNSLS45A with 0.25~0.4 Mpa pressure to high-capacity GNSLH-700B, we offer several models suited for different project scales and slurry production needs.
Detailed Product Specifications:
1. Mud Hopper
Available models:
- GNSLS45A: Pressure 0.25~0.4 Mpa, 174 kg, Dimensions 1100×680×949 mm
- GNSLS35A: Pressure 0.25~0.4 Mpa, 174 kg, Dimensions 1100×680×949 mm
- GNSLM25A: Pressure 0.25~0.4 Mpa, 113 kg, Dimensions 850×570×851 mm
- GNSLM20A: Pressure 0.25~0.4 Mpa, 113 kg, Dimensions 850×570×851 mm
2.Jet Mud Mixer
| Model | Capacity | Pressure | Motor Power | Inlet | Outlet | EX Standard | Weight | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| GNSLH-750B | 320 m³/h | 0.25~0.4 Mpa | 75 kW | DN200 | DN150 | EX d IIB t4 | 1785 kg | 2200×1840×1150 |
| GNSLH-550B | 272 m³/h | 0.25~0.4 Mpa | 55 kW | DN200 | DN150 | EX d IIB t4 | 1675 kg | 2200×1840×1100 |
| GNSLH-450B | 200 m³/h | 0.25~0.4 Mpa | 45 kW | DN150 | DN150 | EX d IIB t4 | 1475 kg | 2200×1840×1135 |
| GNSLH-370B | 150 m³/h | 0.25~0.4 Mpa | 37 kW | DN150 | DN150 | EX d IIB t4 | – | – |
| GNSLH-300B | 120 m³/h | 0.25~0.4 Mpa | 30 kW | DN125 | DN150 | IECEx d IIB t4X | 1460 kg | 2200×1840×1135 |
| GNSLH-220B | 90 m³/h | 0.25~0.4 Mpa | 22 kW | DN125 | DN100 | IECEx d IIB t4X | 1380 kg | 2200×1840×1100 |
| GNSLH-185B | 65 m³/h | 0.25~0.4 Mpa | 18.5 kW | DN100 | DN100 | – | 1167 kg | 1850×1540×1000 |
| GNSLH-150B | 55 m³/h | 0.25~0.4 Mpa | 15 kW | DN100 | DN100 | – | 1147 kg | 1850×1540×1030 |
| GNSLH-110B | 45 m³/h | – | 11 kW | DN100 | DN100 | – | 970 kg | 1850×1540×1030 |
For large-scale, rapid slurry preparation, the Bentonite Jet-Mixing System is the ultimate solution. Contact us today to learn more about our product offerings and how we can support your upcoming projects with reliable, efficient equipment.
