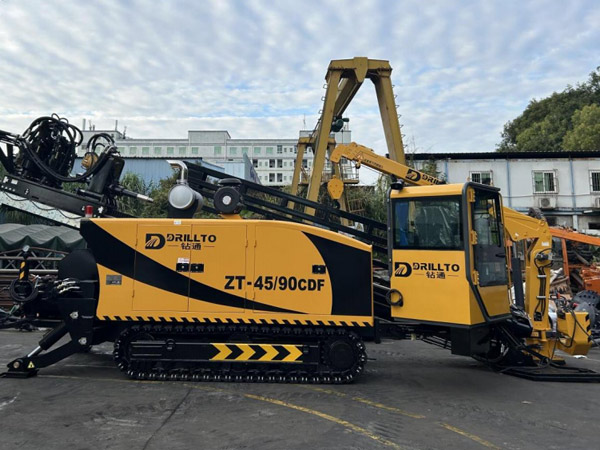

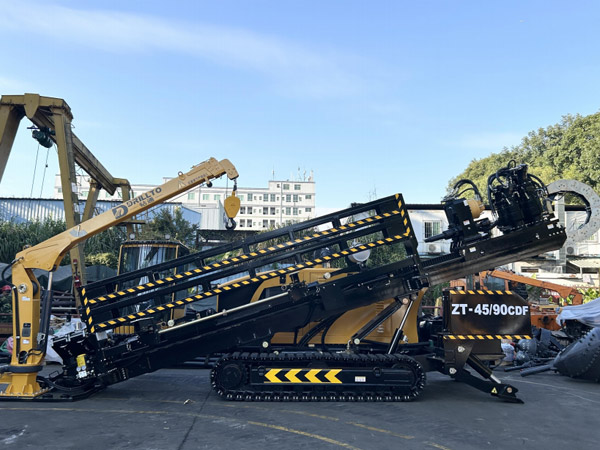

The ZT-45/90CDF drill rig is designed to meet the demanding needs of modern infrastructure projects, offering unparalleled performance with cutting-edge technology. Whether you're working in tough rock formations or complex geological conditions, the ZT-45/90CDF provides the ideal solution for horizontal directional drilling (HDD). Engineered for high torque and reliability, this drill rig ensures maximum efficiency and operational ease for large-scale projects.
Unmatched Power & Performance
The ZT-45/90CDF HDD machine delivers exceptional drilling capability, powered by a dual-system design that ensures stability and adaptability across all terrains.
Advanced Dual-Power System

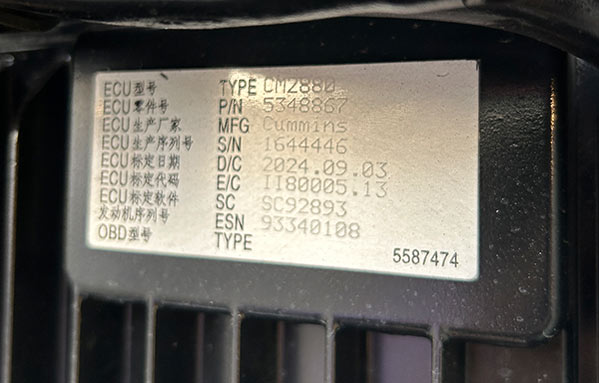

Cummins Diesel Engine: QSC8.3-C260 (194kW/2200rpm) paired with an electric engine oil heater, guaranteeing cold-start reliability and consistent lubrication even in extreme temperatures.
Ultra-High Torque: 25,000Nm spindle torque — a leading specification in the HDD industry — enabling superior rock penetration for tough drilling tasks.
Three-Speed Spindle: Adjustable between 0-57rpm (high-torque mode), 0-88rpm (balanced mode), and 0-170rpm (high-speed mode) to tackle diverse geological challenges with precision.

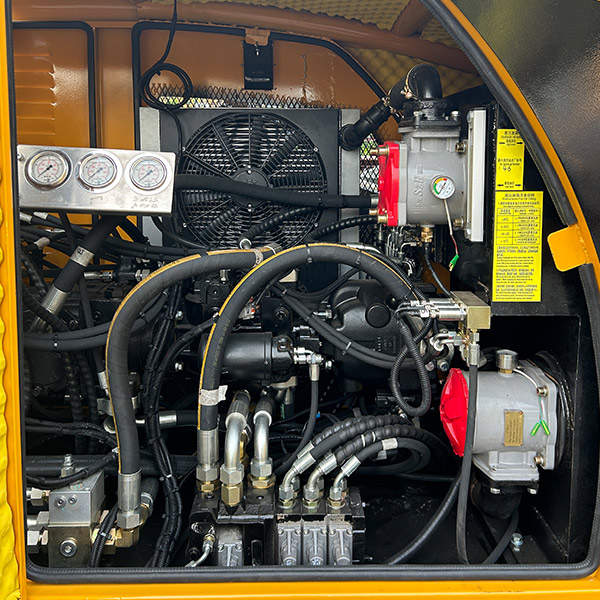

Strong Thrust & Pullback: 900kN thrust and 450kN pullback, driven by Danfoss oil pumps, Rexroth motors/reducers, and HuaDe motors/reducers for multi-stage force output.
Dual Pullback Speeds: 22m/min for rapid retrieval and 11m/min for precision control in complex formations, optimizing workflow efficiency.
Smart Mud System

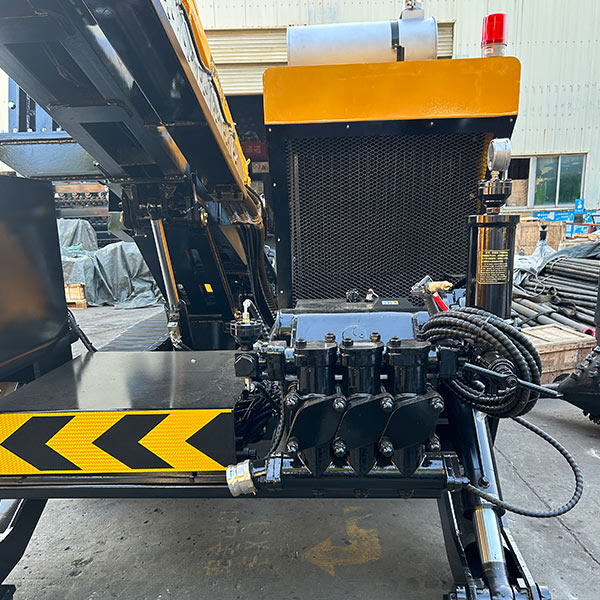

High-Pressure Mud Pump: YH mud swivel + ceramic-cylinder mud pump (600L/min@10MPa) with wear resistance, ideal for maintaining drilling stability in harsh conditions.
Precise Slurry Control: In-cabin mud flow adjustment + bentonite closing valve, allowing operators to regulate slurry supply in real time for optimal drilling performance.
Automation & Operational Efficiency
The ZT-45/90CDF HDD machine integrates intelligent automation to reduce manual intervention, lower labor costs, and enhance operational safety.

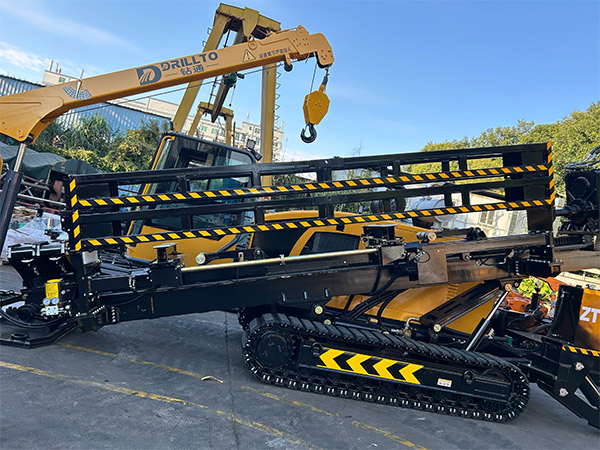

Fully Automated Rod Handling

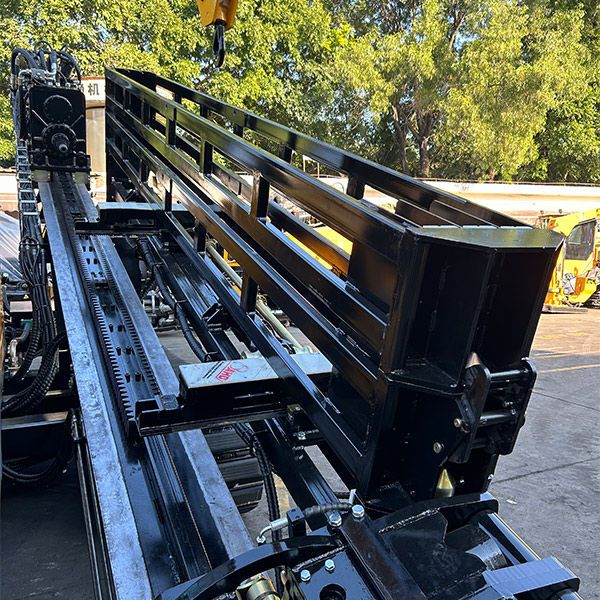

Dual-Layer Rod Boxes: 18 rods total (9 rods/box) compatible with OD89mm×4570mm rods (4670mm inner length), supporting long-distance drilling without frequent rod replacement.
Low-Maintenance Design: Nylon boards with slurry leakage grooves minimize residue buildup, simplifying cleaning and extending component lifespan.
Ergonomic Operator Interface

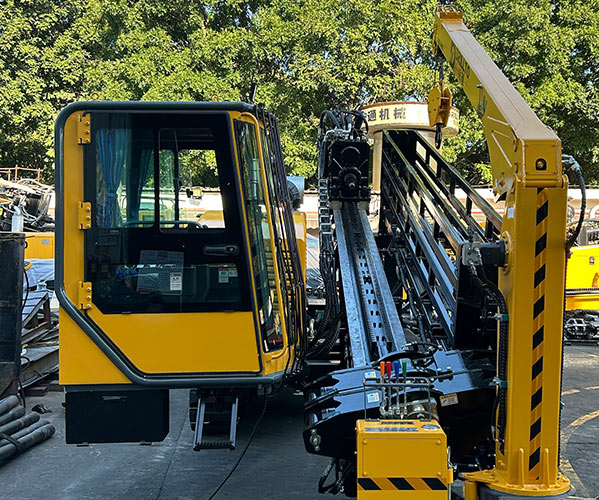

360° Visibility: Rotatable cabin (0-90° adjustment) + extension arm + loudspeaker + integrated stairs, ensuring clear visibility of the drilling site and easy accessibility.
Customizable Control: Gessman joysticks + adjustable DSE monitor + height-customizable seat/armrests, providing a personalized and fatigue-free operating experience.
Robust Structural Design & Reliability
Built for durability and stability, the ZT-45/90CDF HDD machine thrives in challenging environments while maintaining long-term performance.
Heavy-Duty Construction
Adaptable Frame: Four-bar linkage frame with 13-20° angle adjustment, enabling stable operation on uneven or sloped terrains.

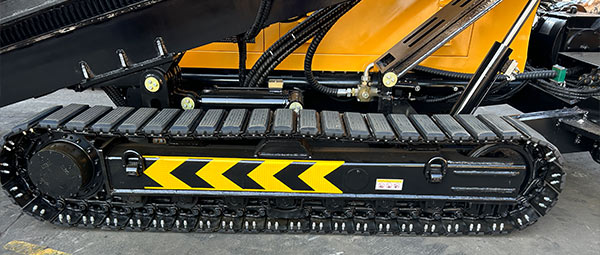

Anti-Slip Tracks: Steel tracks with 86 rubber blocks, offering vibration damping, anti-slip protection, and enhanced stability during drilling.
Multi-Functional Auxiliaries
Reduced Manual Work: Tilted vice jaws, 2T crane (optional 3.5T upgrade), washing gun, and auto-grease system minimize manual intervention.
Enhanced Safety: Rear support legs + 4 free anchor stakes + front anchor plates (6 anchors total) firmly secure the HDD machine during drilling and transportation.
Safety & All-Climate Adaptability
The ZT-45/90CDF HDD machine prioritizes operator safety and environmental resilience, making it suitable for global projects in diverse conditions.
Dual-Layer Safety Protection
Mud Pump Interlock: Activates only when vice jaws are closed, eliminating misuse risks and ensuring operational safety.
Emergency Response: Max bentonite supply button on the right joystick for one-touch emergency control.
Vice Jaw Design: Extended 111mm locking segment for OD89mm (FS1 #1000 thread) rods, with automatic lubrication and cleaning systems to reduce thread wear.
All-Climate Operation
Temperature Resilience: Hydraulic oil electric heating + cabin AC/heater, supporting reliable operation from -20°C to 50°C.
Durability Features: Internal anti-corrosion coating + noise reduction system, extending service life and minimizing environmental impact (ideal for urban areas).
Easy Transport & Low Maintenance
Designed for global accessibility and cost efficiency, the ZT-45/90CDF HDD machine simplifies logistics and reduces operational downtime.
Modular Global-Ready Design
Compact Dimensions: 8930×2300×2520mm, fitting 40HQ containers for cost-effective global transportation.
Optimal Weight: 16,300kg (≤17,000kg) — balancing lightweight portability and heavy-duty strength, easy to transport to dense urban areas.
Low-Maintenance Advantages

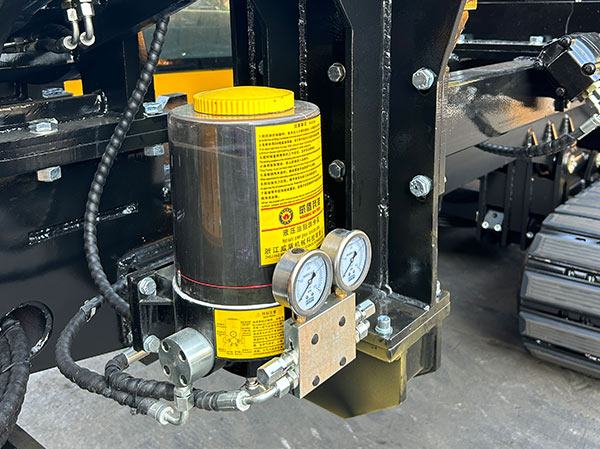

Time-Saving Features: Automatic lubrication, windshield washer/wiper, and slurry groove design cut routine maintenance time by 50%.
Reliable Components: Hydraulic system parts (pumps, motors) from Danfoss/Poclain, ensuring durability and reducing replacement frequency.
Why Choose ZT-45/90CDF HDD Machine?
Industry-Leading Performance: 25,000Nm torque, 900kN thrust, and automated systems outperform competitors in hard rock and complex formations.
Global Compatibility: Modular design fits 40HQ containers, reducing logistics costs for international projects.
All-Climate Resilience: Operates reliably from -20°C to 50°C, adapting to diverse environmental conditions.
Low Total Cost of Ownership: Durable components and 50% reduced maintenance time lower long-term operational costs.
Invest in the ZT-45/90CDF horizontal directional drill — the reliable choice for high-stakes drilling projects. Contact us today for a quote or technical consultation!
