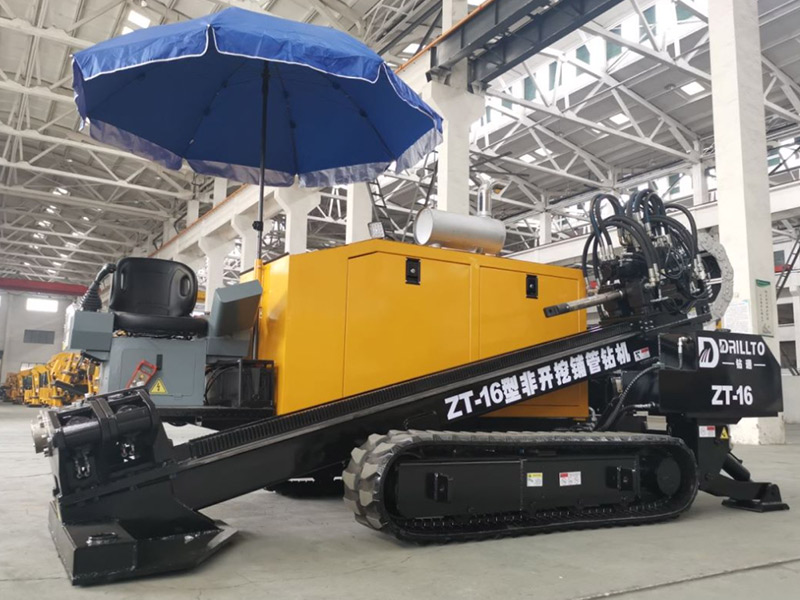

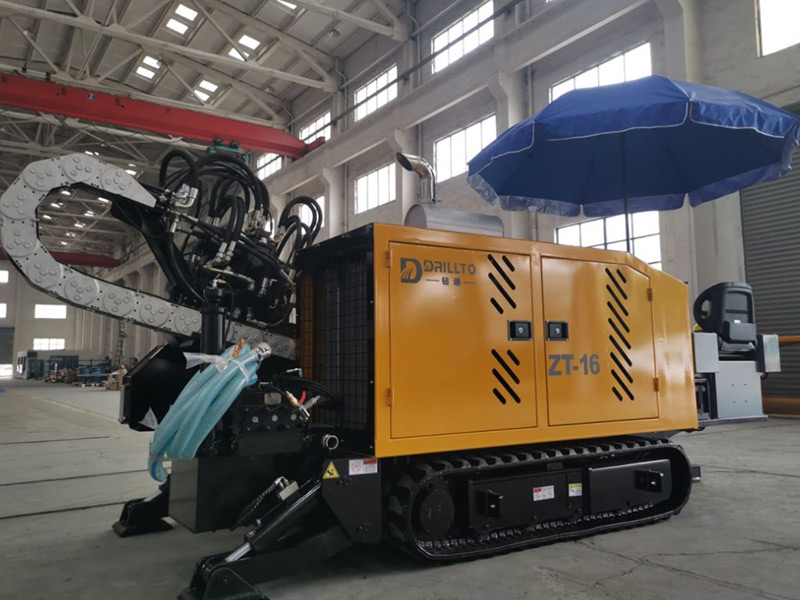

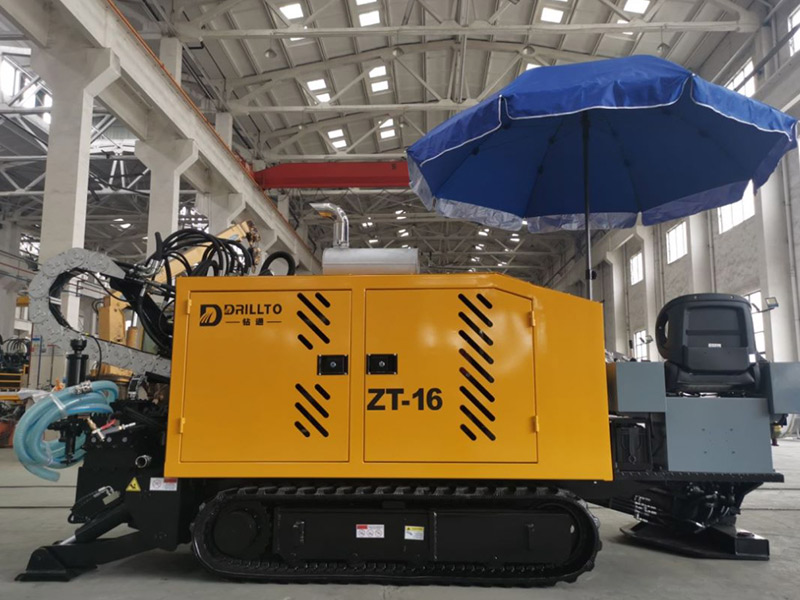

ZT-16 Small Horizontal Drilling Machine

Reliable HDD Equipment for Pipeline Installation

The ZT-16 Small Horizontal Drilling Machine is a cutting-edge equipment designed for horizontal directional drilling (HDD), a technique that allows the installation of pipelines underground without the need for traditional excavation methods. This advanced drilling technology is widely utilized in various industries, including construction, oil and gas, telecommunications, and utilities.

Powerful Performance in a Compact Design

Don’t let its size fool you – the ZT-16 Small Horizontal Drilling Machine is a typical small rig with large capacity. Measuring only 4200*2000*2300mm and weighing 7.5T, its compact structure ensures easy transportation, even in space-constrained job sites. Both rotation and thrusting are powered by Eaton gerotor motors, delivering stable performance with full power. With a maximum torque of 4500N.m, rotation speed of 0-170rpm, and max pulling/thrusting force of 160kN, it effortlessly copes with various geological conditions, including rock, mud, and sand, as well as underground obstacles.

User-Friendly Operation & Precise Drilling

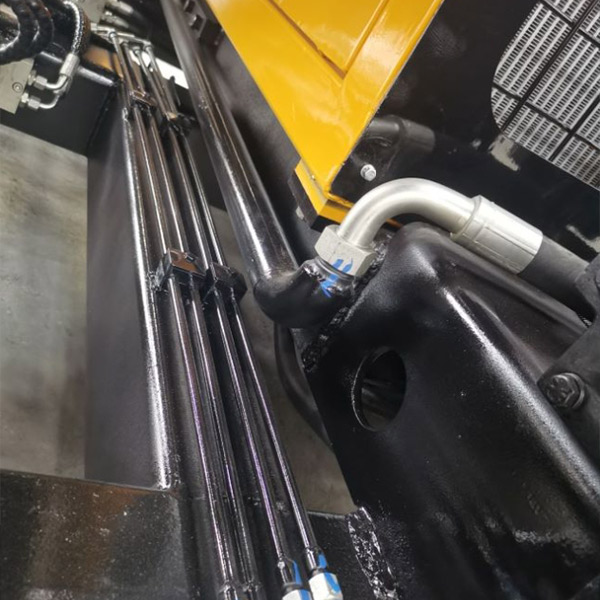

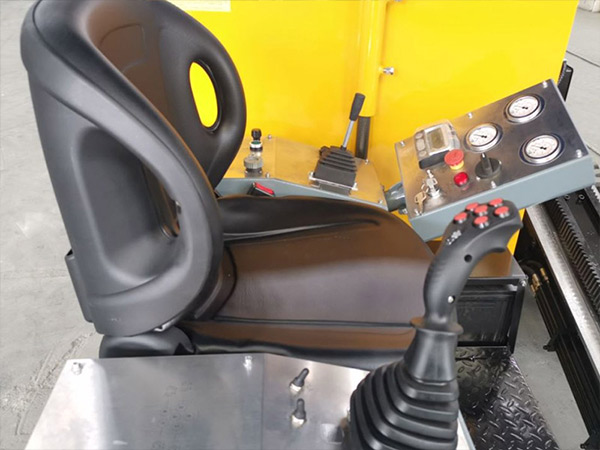

The ZT-16 is designed with operator convenience in mind. It features a multi-function button handle, a comfortable seat with a sunshade, and a user-friendly console. Professional operators can easily control the machine’s movement, drilling speed, and direction via the console. Equipped with advanced navigation and surveying systems, the machine guarantees the accuracy and precision of every drill, ensuring your pipeline installation meets the strictest standards. Additionally, the reasonable tubing layout reduces tubing wear and tear, extending the equipment’s service life.

Key Advantages for Your Projects

• Minimize Surface Damage: Avoids the engineering and environmental issues caused by traditional excavation, protecting the surrounding landscape and infrastructure.
• Enhanced Efficiency: Speeds up project schedules, shortens construction time, and reduces labor and material costs. The φ60*2000mm drill rods ensure stable, reliable, and fast short-distance drilling without bending.
• Superior Configuration: Powered by a 97kW/2200rpm Commins engine and equipped with a mud pump with max displacement of 180L/min and pressure of 10Mpa, it provides consistent power for continuous operation.

Invest in the ZT-16 Small Horizontal Drilling Machine today and experience the perfect blend of power, compactness, and efficiency for your underground pipeline projects. Contact us to learn more about pricing and customization options!
