Drillto ZT33C 2019
Brand: Drillto
Model: ZT33C
Year of manufacture: 2019
Used hour: 1800 hours
Introduction
Brand: Drillto
Model: ZT33C
Year of manufacture: 2019
Used hour: 1800 hours
Advantages
- •

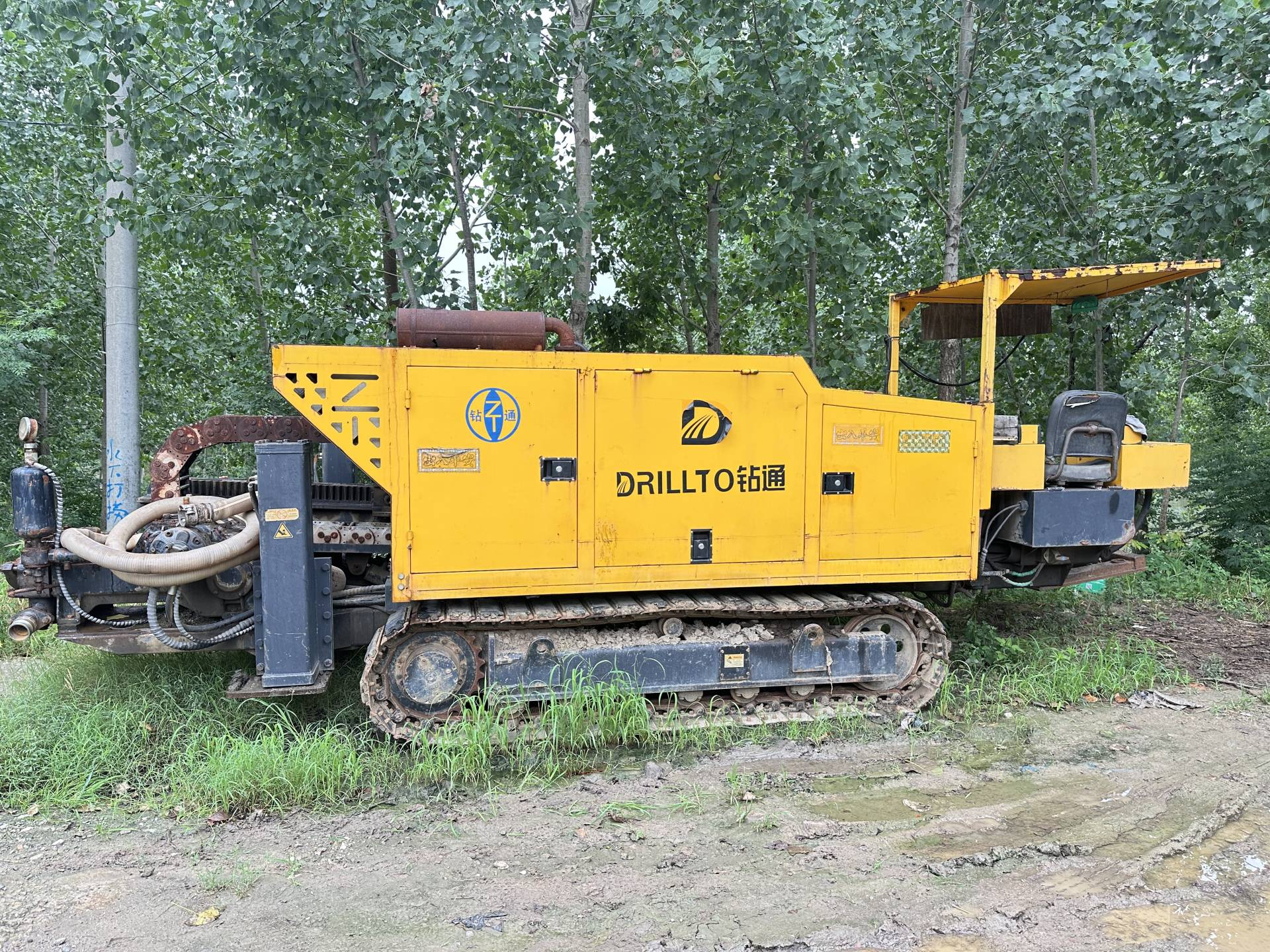

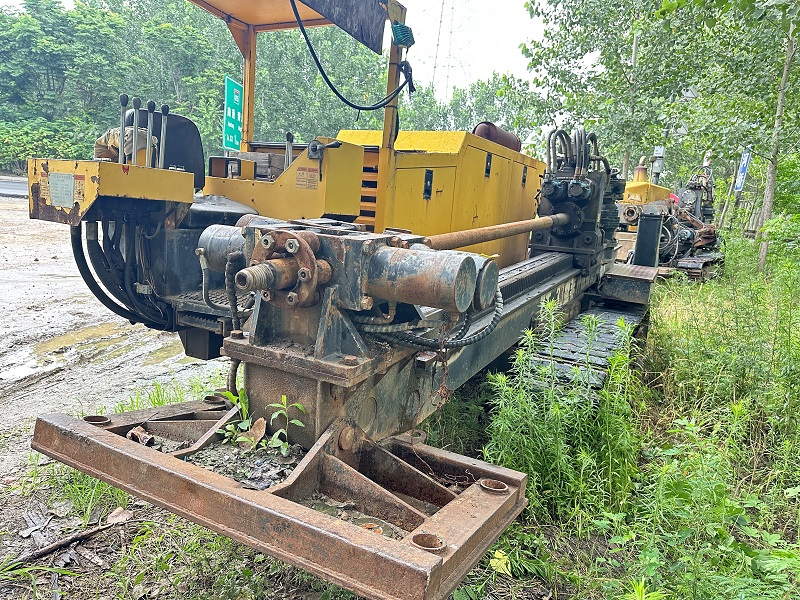

This used Drillto ZT33C horizontal directional drilling rig was manufactured in 2019 with 1800 working hours. It is matched with Dongfeng Cummins power system, equipped with a rated pullback force of 330kN and rated rotary torque of 12000Nm, providing strong power for all kinds of trenchless crossing projects. Complete supporting accessories including drill rods, reamers and other consumables are fully equipped with the machine, ready for direct construction operation after delivery. Moderate service hours, reliable performance and cost-effective for pipeline construction works.

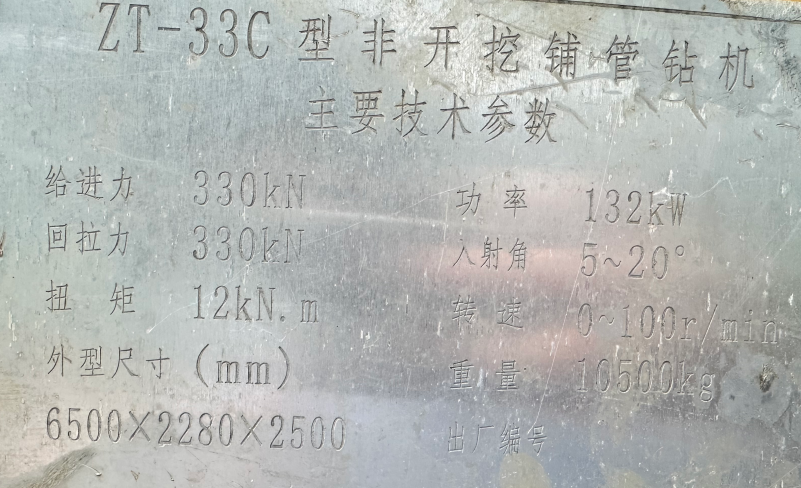

Parameters
| Item | Specification |
|---|---|
| Model | Drillto ZT‑33C |
| Rated Thrust‑Pull Force | 330 kN (33 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑28 m/min |
| Max Rotary Torque | 13 000 N·m |
| Spindle Speed | 0‑70 / 140 rpm（Two-speed control） |
| Engine Model | Cummins QSB5.9‑C180 |
| Engine Rated Power | 132 kW / 2200 rpm |
| Mud Pump Flow | 320 L/min |
| Mud Pump Pressure | 8 MPa |
| Drill Pipe Size | Φ73 mm × 3000 mm |
| Recommended Reaming Diameter | Φ200‑800 mm |
| Entry Angle Range | 12°‑20° |
| Operating Weight | 10 000 kg（10 ton） |
| Overall Dimension (L×W×H) | 6000 × 2200 × 2250 mm |
| Travel Speed | 0‑3 km/h |
