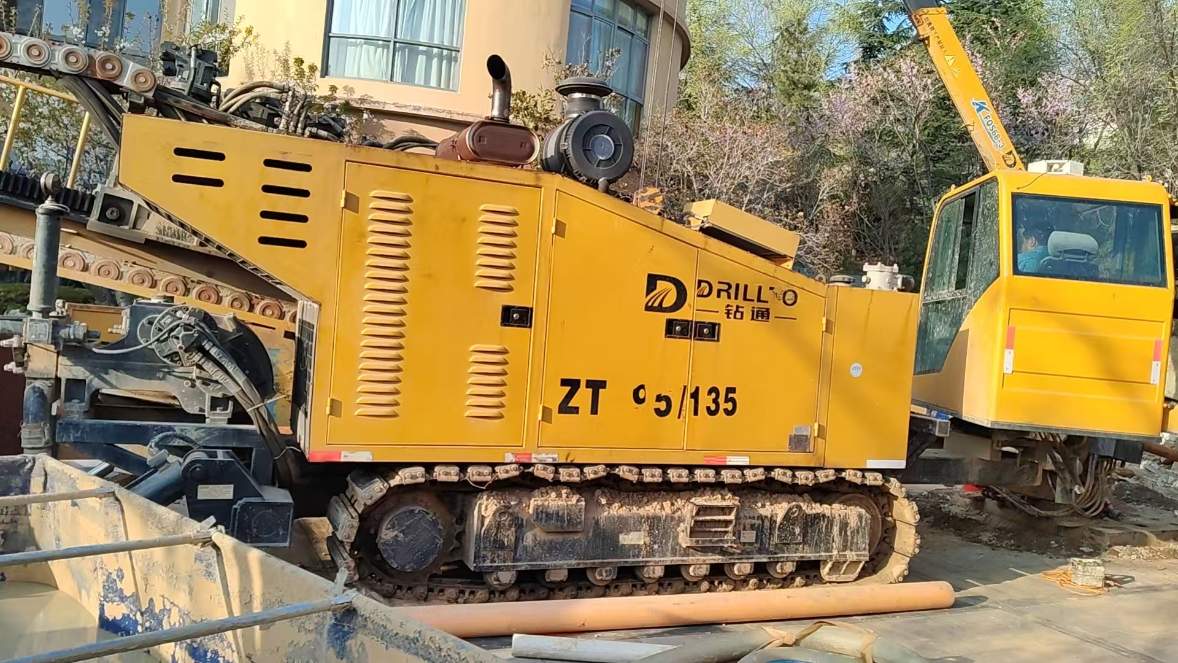

2020 ZT90-135
Brand: Drillto
Model: ZT90-135
Year of manufacture: 2020
Used hour: 1240 hours
Introduction
Brand: Drillto
Model: ZT90-135
Year of manufacture: 2020
Used hour: 1240 hours
60 drill pipes with a diameter of 114 mm; reamers (400, 600, 800); pilot drill bits.
Parameters
| Item | Specification |
|---|---|
| Model | Drillto ZT90‑135（ZT‑95/135） |
| Rated Thrust‑Pull Force | 950 kN (95 ton) |
| Max Overload Force | 1350 kN (135 ton) |
| Drive Type | Rack & Pinion |
| Max Push‑Pull Speed | 0‑60 m/min |
| Max Rotary Torque | 36 000 N·m |
| Spindle Speed | 0‑135 rpm（Two-speed control） |
| Engine Model | Cummins QSL8.9 |
| Engine Rated Power | 264 kW / 2200 rpm |
| Mud Pump Flow | 800 L/min |
| Mud Pump Pressure | 10 MPa |
| Drill Pipe Size | Φ102 mm / Φ114 mm × 4500 / 6000 mm（optional） |
| Recommended Reaming Diameter | Φ300‑1200 mm |
| Entry Angle Range | 10°‑18° |
| On‑board Crane | 3.2 ton |
| Operating Weight | 26 500 kg（26.5 ton） |
| Overall Dimension (L×W×H) | 12100 × 2600 × 2950 mm |
| Travel Speed | 2‑3 km/h |
