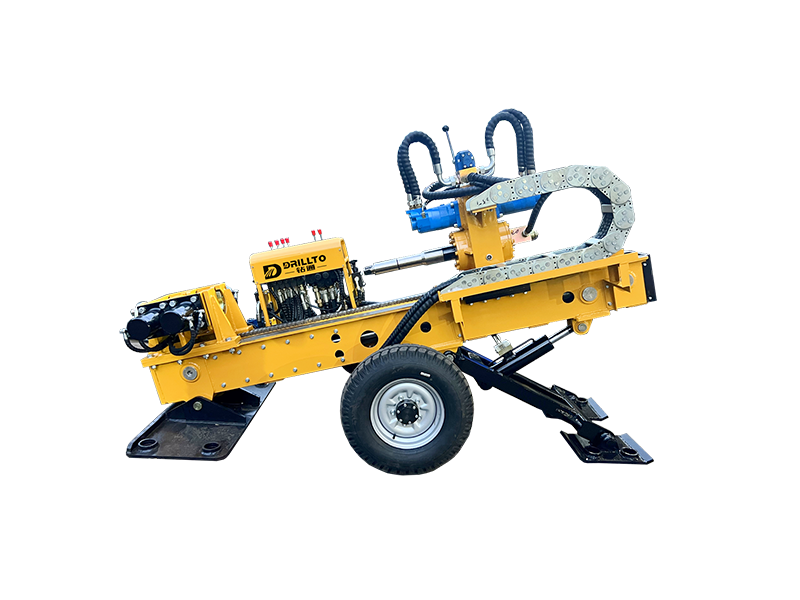

ZT-15

Max torque: 6000N.m
Max pulling/thrusting force: 150/75kN

Commins engine: 75kW

Description

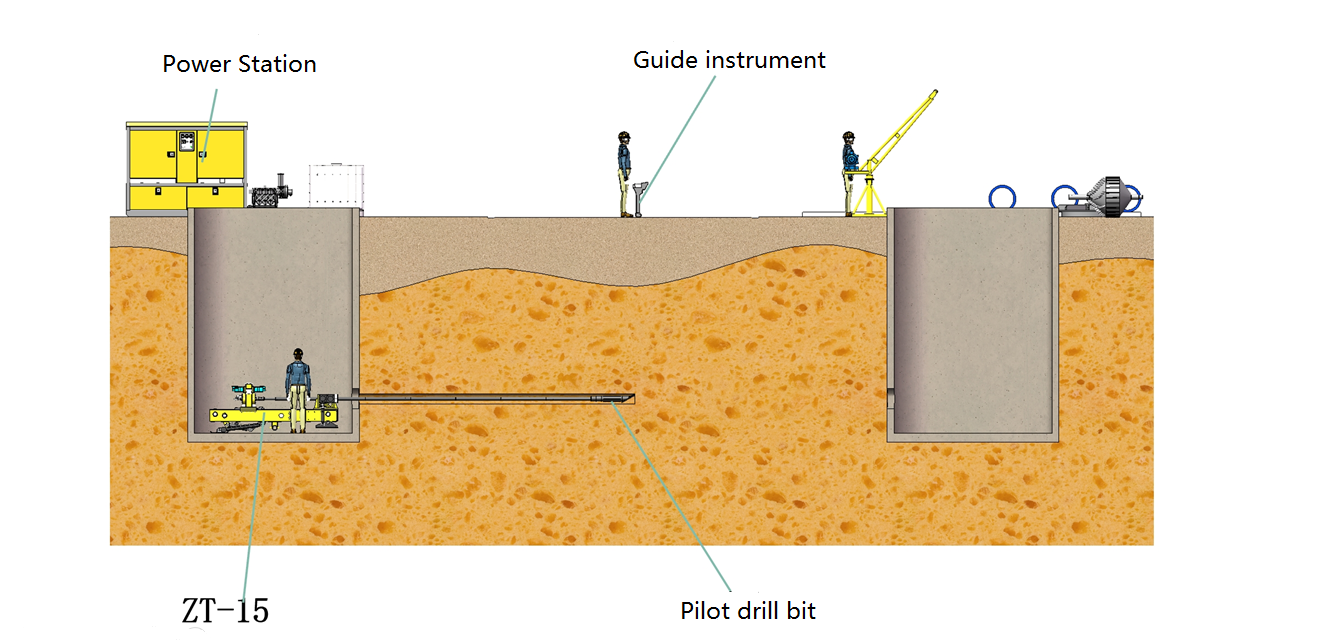

It can be used for horizontal drilling in wells or tunnels for trenchless pipeline laying, and can also be used for directional drilling on the ground as a common horizontal directional drilling rig
The drilling rig is small in size and has a small construction working surface.
It can be used for horizontal directional drilling or oblique angle directional drilling

Parameters

Model	ZT-15
Max torque(N.m)	6000
Rotation speed(pm)	0-120
Max pulling/thrusting force(kN)	150/75
Commins engine(kW)	75
Max mud pump displacement(L/min)	180
Entry angle(degree)	0
Machine Weight(kg)	1700

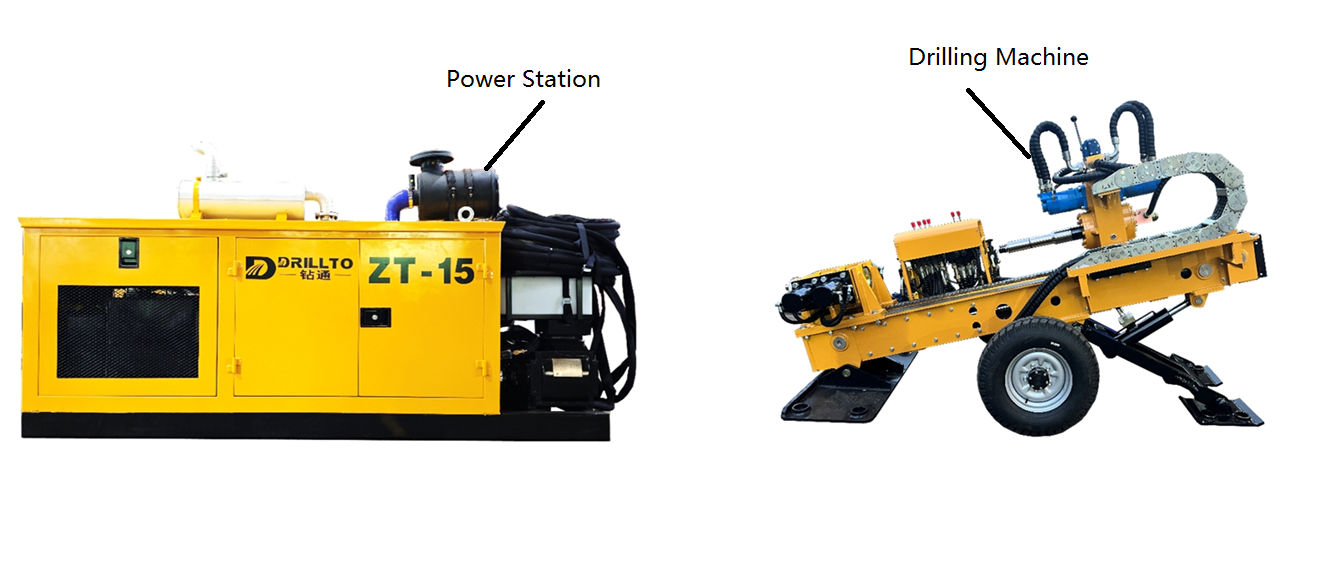

Power Station Weight(kg)	2300
Machine Dimension(mm)	292011001300
Power Station Dimension(mm)	334011002050
Rod size(mm)	φ60*1000
Reamer size(mm)	φ200-600

Applications
