What is HDD machine?

What is HDD?

Horizontal Directional Drilling (HDD) is a trenchless method used for installing underground pipes, conduits, and cables in a shallow arc along a prescribed bore path by using a surface-launched drilling rig. This technique is widely used for the installation of utility lines (water, gas, electrical, telecommunications) beneath obstacles such as roads, rivers, and buildings.

Key Components of an HDD System
- Drill Rig: The primary machine used to perform the drilling operation. It provides the necessary force and rotation to the drill string.
- Drill Pipe: Hollow steel pipes that transmit drilling fluid, rotation, and push/pull force to the drill bit.

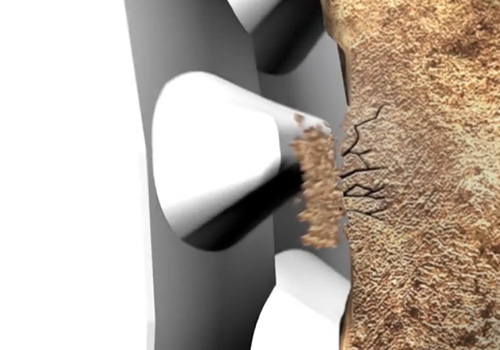

- Drill Bit: The cutting tool at the end of the drill string that breaks up the soil or rock.
- Drilling Fluid (Mud): A mixture of water and bentonite or polymers used to lubricate the drill bit, remove cuttings, and stabilize the borehole.
- Reamer: A tool used to enlarge the initial pilot hole to the desired diameter.
- Sonde (Transmitter): A device placed in the drill head that emits a signal to help track the location and orientation of the drill bit.

- Mud Recycling System: Equipment that cleans and recycles the drilling fluid for reuse.

Phases of HDD
- Planning and Design: Assessing the feasibility, determining the bore path, and preparing the drilling plan.

- Pilot Hole Drilling: The initial small-diameter hole is drilled along the designed path.

- Reaming: Enlarging the pilot hole to the required size to accommodate the utility line.
- Pullback: The product pipe or conduit is pulled back through the borehole from the exit to the entry point.

Advantages of HDD

- Minimal Surface Disruption: Reduces the need for extensive excavation and surface disruption.
- Environmental Benefits: Less impact on the environment compared to traditional trenching methods.
- Versatility: Capable of crossing obstacles like rivers, roads, and buildings.
- Cost-Effective: Can be more cost-effective in certain scenarios, particularly in urban areas with many surface obstacles.

Applications of HDD

- Utility Installation: Installing gas, water, sewer, and electrical lines.
- Telecommunications: Laying fiber optic and other communication cables.
- Environmental Remediation: Installing monitoring wells and remediation systems.
- Pipeline Installation: Crossing rivers, roads, and other obstacles for oil and gas pipelines.

Challenges and Considerations

- Geological Conditions: The type of soil or rock can significantly affect the drilling process.
- Drilling Fluid Management: Proper handling and disposal of drilling fluids are crucial for environmental compliance.
- Bore Path Accuracy: Ensuring the bore follows the planned path and does not deviate.
- Equipment Maintenance: Regular maintenance of the HDD equipment to prevent breakdowns and ensure efficient operation.

HDD is a valuable technique in modern construction and utility installation, offering a less invasive, cost-effective, and environmentally friendly alternative to traditional trenching methods. Understanding the equipment, process, and applications is essential for successful HDD projects.
