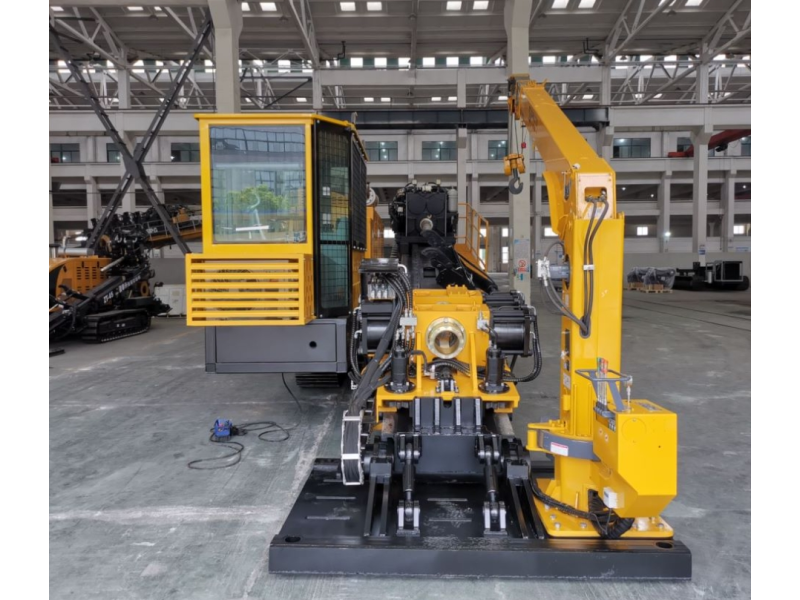

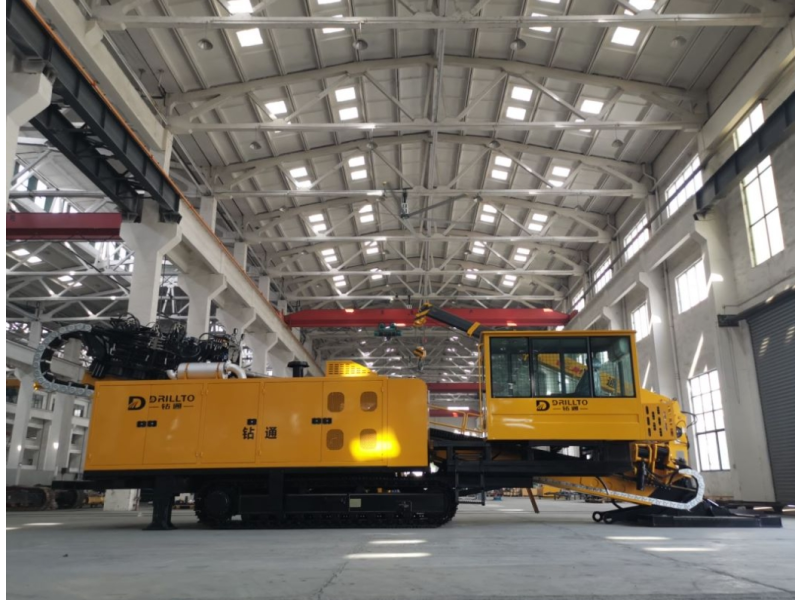

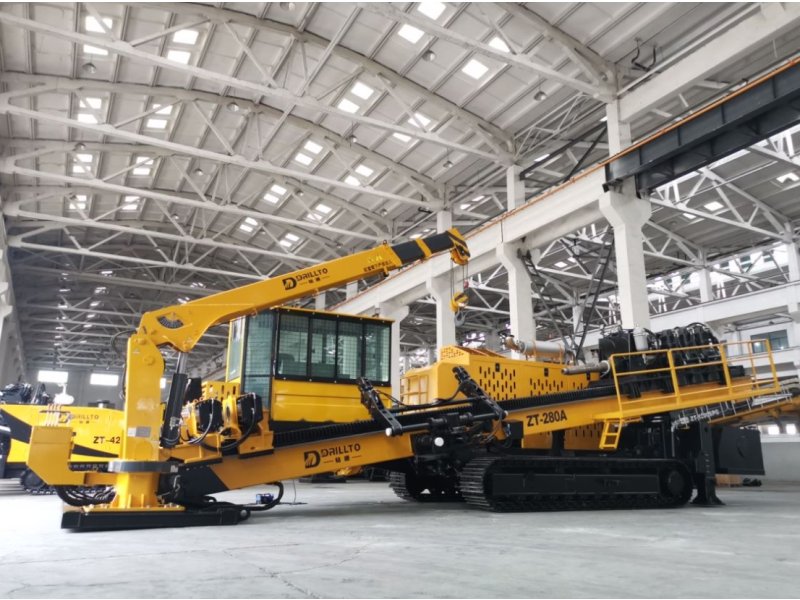

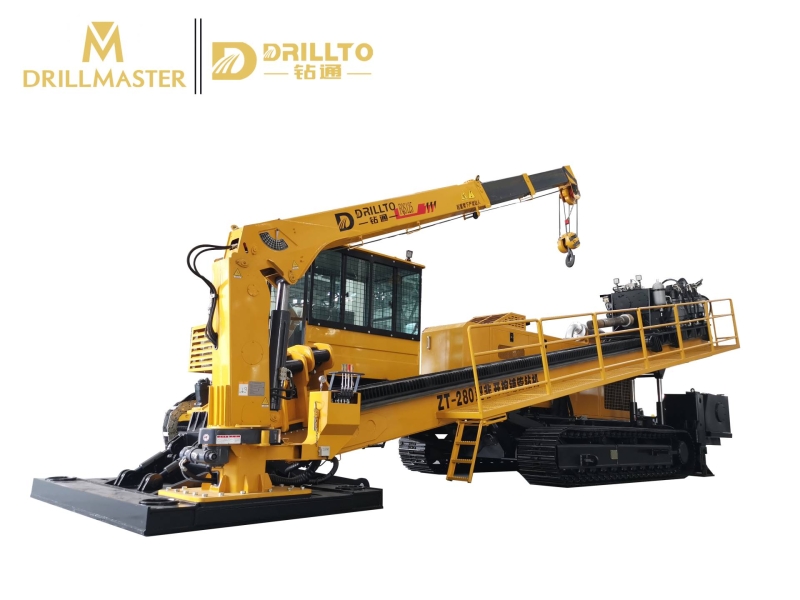

Name: ZT-280A Underground Directional Drilling Equipment
SKU: 32
Rating: 5 (1031 reviews)

Description

Double closed-circuit and load sensitive combination provide high transmision and energy saving. Set up the active heat dissipation system to ensure the oil temperature within a reasonable range and improve the transmission efficiency of the system.

Parameters

Model	ZT-280A
Max torque(N.m)	90000
Rotation speed(rpm)	0-110
Max pulling/thrusting force(kN)	2800
Pulling speed(m/min)	0-40
Commins engine(kW/rpm)	410/1900
Max mud pump displacement(L/min)	2500
Max mud pump pressure(Mpa)	15
Entry angle(degree)	10-18
Walking speed(km/h)	1-2.7
Weight(kg)	45000
Dimension(mm)	1300033003450
Rod size(mm)	φ127*6000
Reamer size(mm)	φ400-1500

Advantages

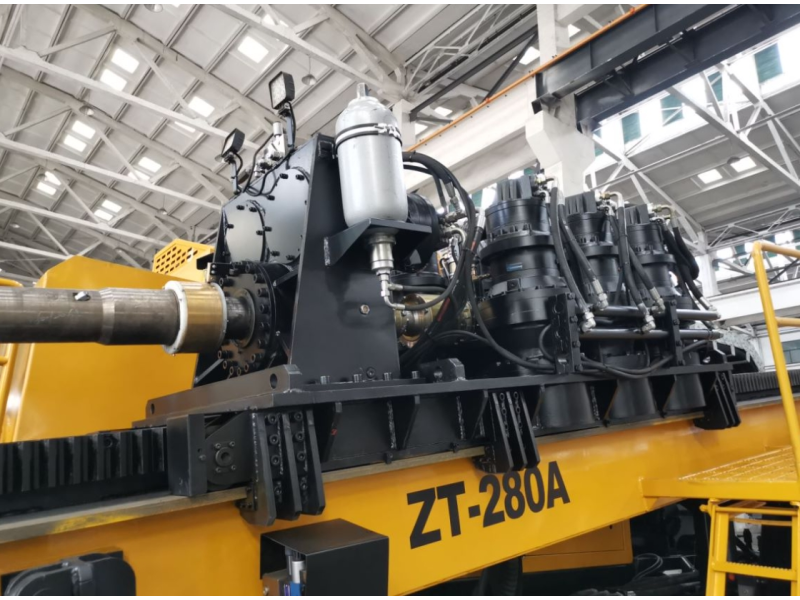

The rotating and thrusting motors both use Poclain large torque motors, stable performance, high effciency, safe and reliable application.
The gripper can be moved throughout the process, convenient construction of the casing, easy to use the gripper to unload the drilling tool.
The gripper increases the unloading torque, reduces the risk of stuck drilling, optimizes the valve road layout, makes the gripper control faster, the oil circuit more smooth, and improves the construction efficiency.
The thrusting design increases the free wheel control system, one-button switch, intelligent control of high and low speed, which improve the system efficiency.
Using LCD display screen, artificial intelligence system, easy to operate, intelligent storage of data, multi-work page intelligent switch.
