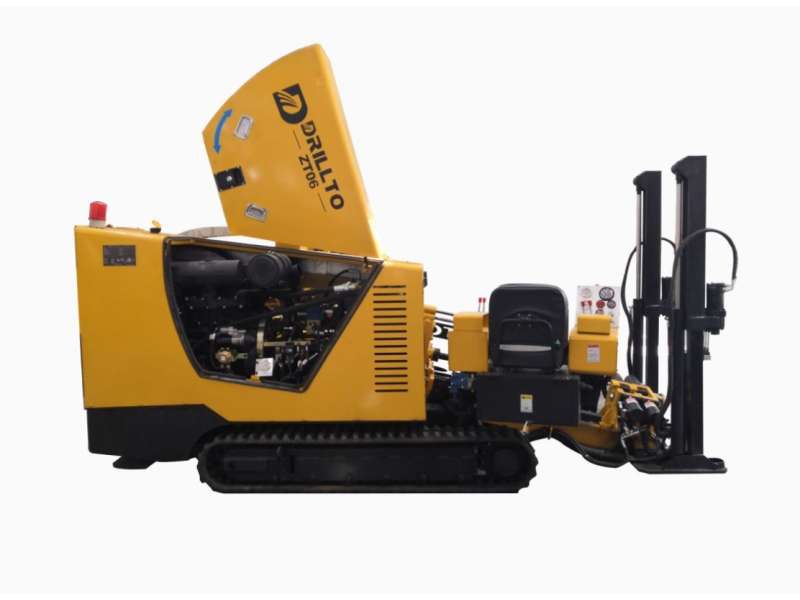

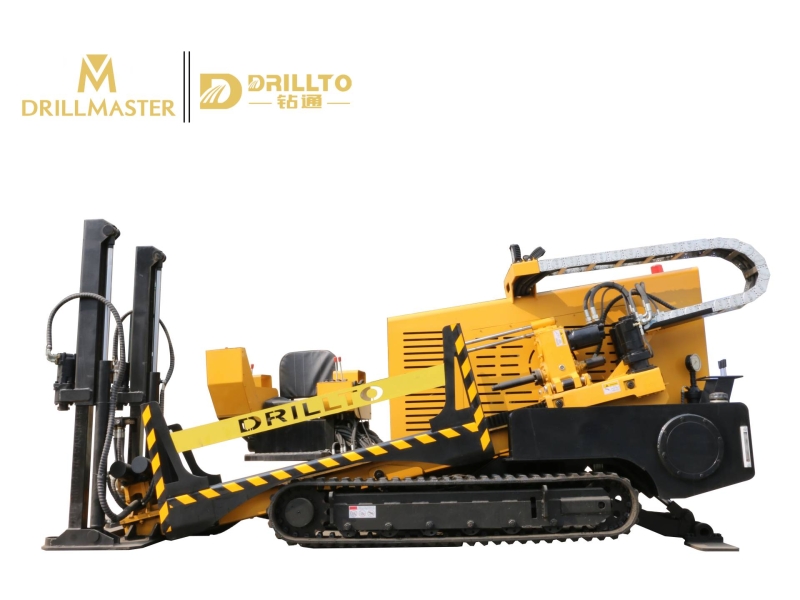

ZT-6

Max torque: 2000N.m
Max pulling/thrusting force: 60kN

Yanmar engine: 47.4/2200kW/rpm

Description

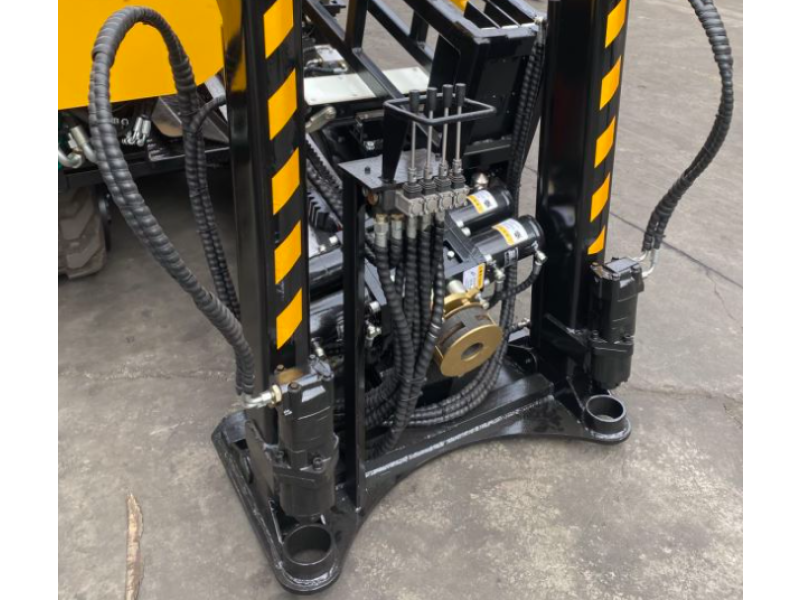

The rig is ingenious and compact, suitable for projects with limited construction area and short construction length. Double clamps unscrew and unload the drill pipe, high-speed up load of rods. Equipped with a drill rod support, which is convenient and safe for one-man operation.
Parameters
Model ZT-6
Max torque(N.m) 2000
Rotation speed(rpm) 0-148
Max pulling/thrusting force(kN) 60
Pulling speed(m/min) 0-60
Yanmar engine(kW/rpm) 47.4/2200
Max mud pump displacement(L/min) 80
Max mud pump pressure(Mpa) 8
Entry angle(degree) 8-18
Walking speed(km/h) 2.15
Weight(kg) 3750
Dimension(mm) 4140*1400*1875
Rod size(mm) φ50/φ42*1800
Reamer size(mm) φ200-300
