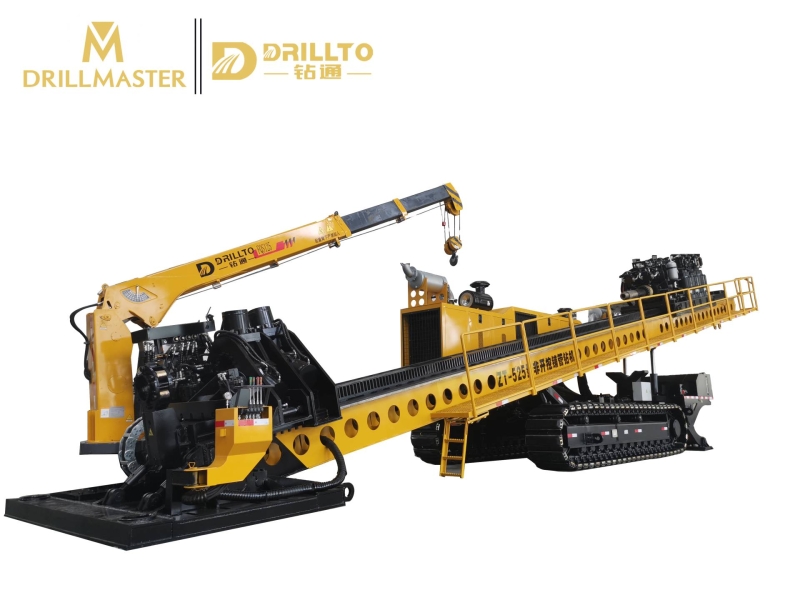

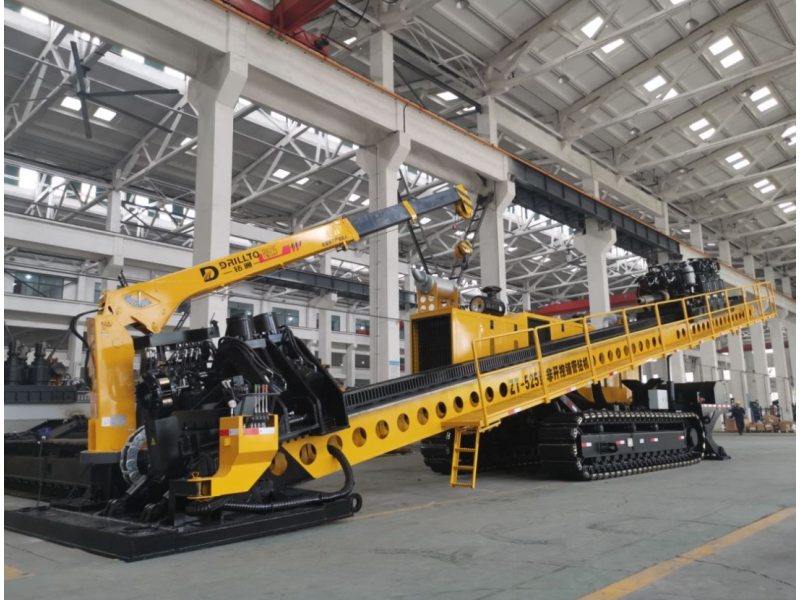

Name: ZT-525
SKU: 33
Rating: 5 (1032 reviews)

Description

The machine performs excellent in all parameters: high speed, high torque, fast thrusting speed, good handling, energy saving and high efficiency, intelligent and convenient. The electronic control system adopts imported Danfoss controller and display, with fast response, simple and comfortable human-machine interaction, and more scientific and efficient construction.

Parameters

Model	ZT-525
Max torque(N.m)	160000
Rotation speed(rpm)	0-110
Max pulling/thrusting force(kN)	5250
Pulling speed(m/min)	0-20
Commins engine(kW/rpm)	336*2/2100
Max mud pump displacement(L/min)	3000
Max mud pump pressure(Mpa)	15
Entry angle(degree)	8-15
Walking speed(km/h)	0-1.5
Weight(kg)	65000
Dimension(mm)	1950032003500
Rod size(mm)	φ168*9600
Reamer size(mm)	φ500-2000

Advantages

Using two electric injection engines, powerful power, can be used in single and double sets, save energy consumption, suitable for different working conditions.

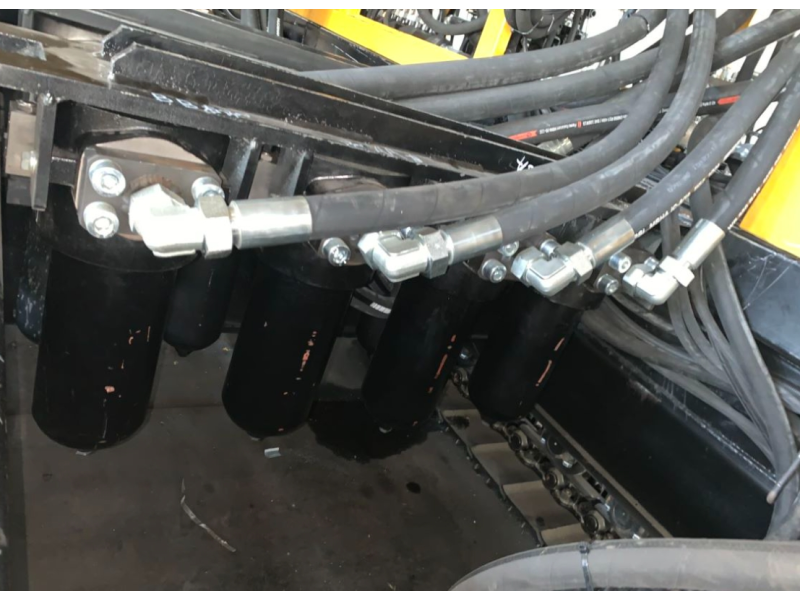

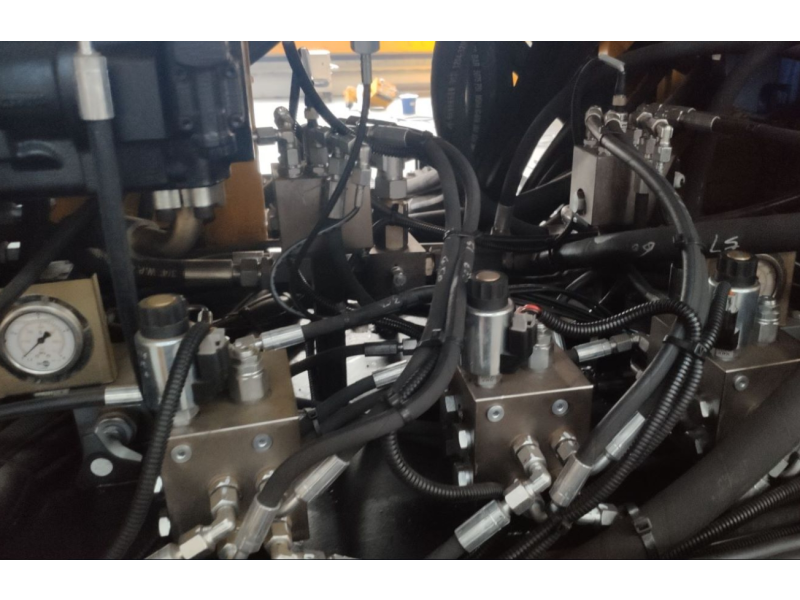

The pipeline is equipped with high pressure filter, block the pollutants between the pump and the motor.
Rotatory and thrusting apply closed-circuit system, high system efficiency.
Transfer case, improve the input speed of the oil pump, improve the output flow and output power.
Cabin and rig split, convenient connection, comfortable control, and equipped with Murphy 11-inch large screen display, man-machine interface friendly, high level of intelligence.
Preset system for rotary and thrusting pressure, preset parameters according to drilling requirements to improve construction safety.
