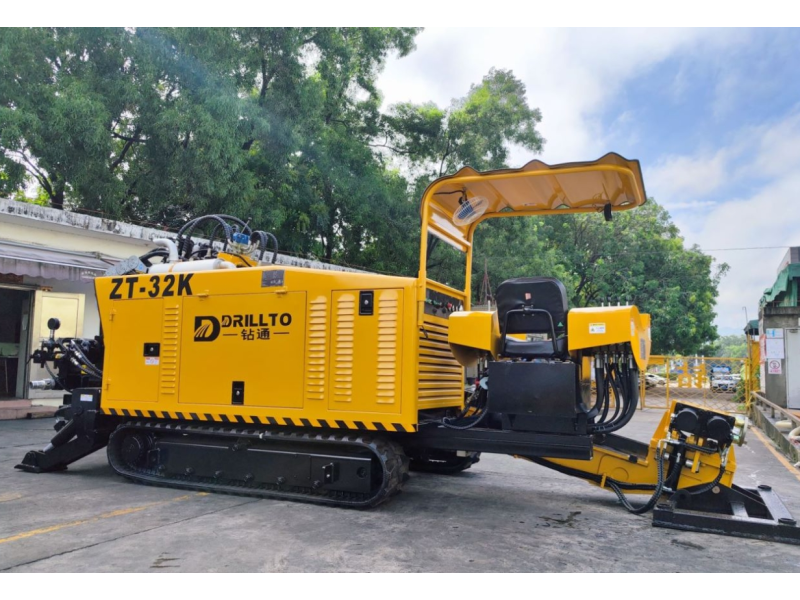

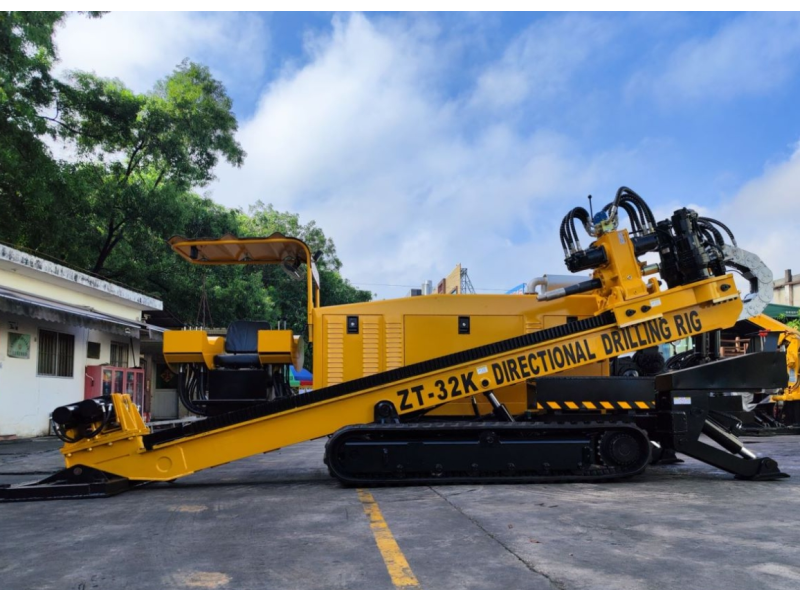

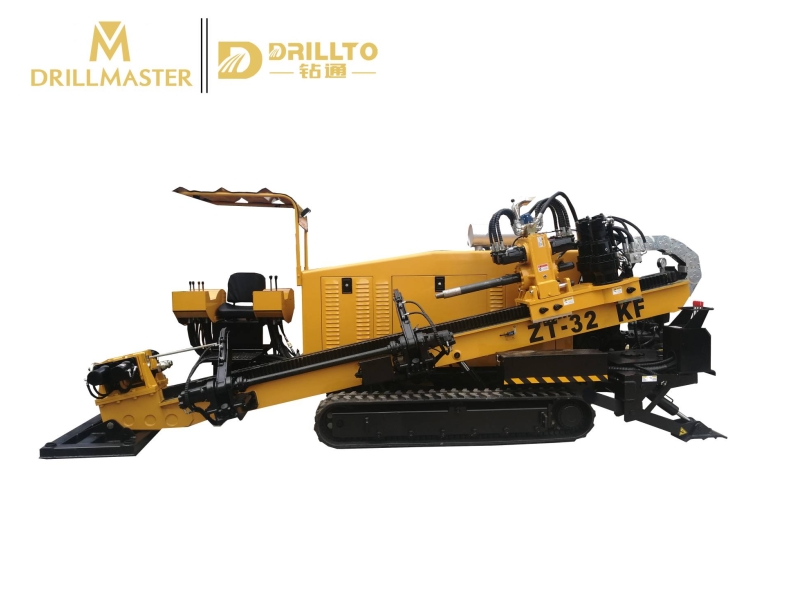

ZT-32KF

Max torque: 12000N.m
Max pulling/thrusting force: 320kN

Commins engine: 153/2200kW/rpm

CategoriesHDD Machine

Add To Inquiry SEND INQUIRY

Description

The rotary head is driven by double motors, high torque and high speed. The power head is equipped with a shackle floating device to protect the drill pipe thread. The thrusting and pulling use Rack and Pinion structure, stable performance. The structure of drilling rig is compact, small work site space occupied.

Parameters

Model	ZT-32KF
Max torque(N.m)	12000
Rotation speed(rpm)	0-145
Max pulling/thrusting force(kN)	320
Pulling speed(m/min)	0-50
Commins engine(kW/rpm)	153/2200
Max mud pump displacement(L/min)	250/320
Max mud pump pressure(Mpa)	8
Entry angle(degree)	8-20
Walking speed(km/h)	2.5-3.25
Weight(kg)	8500
Dimension(mm)	620022802500
Rod size(mm)	φ73*3000
Reamer size(mm)	φ200-800

Advantages

By using serial parallel technology with invention patent, SANT double speed valve provides stable, efficient and reliable performance.
Semi-automatic Arm Swing, increase efficiency and saving labor cost.
Main pump is PERMCO triple pump, stable performance. Using flange-type joints, with good sealing performance.
