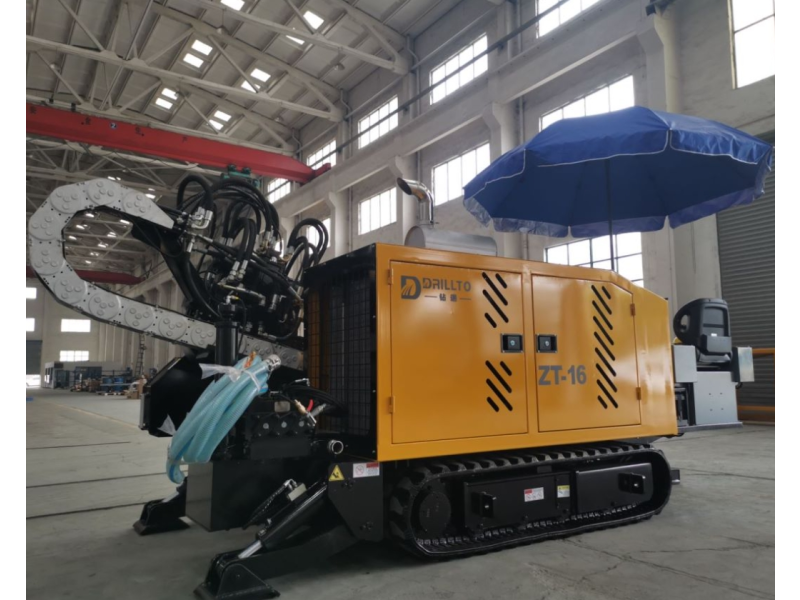

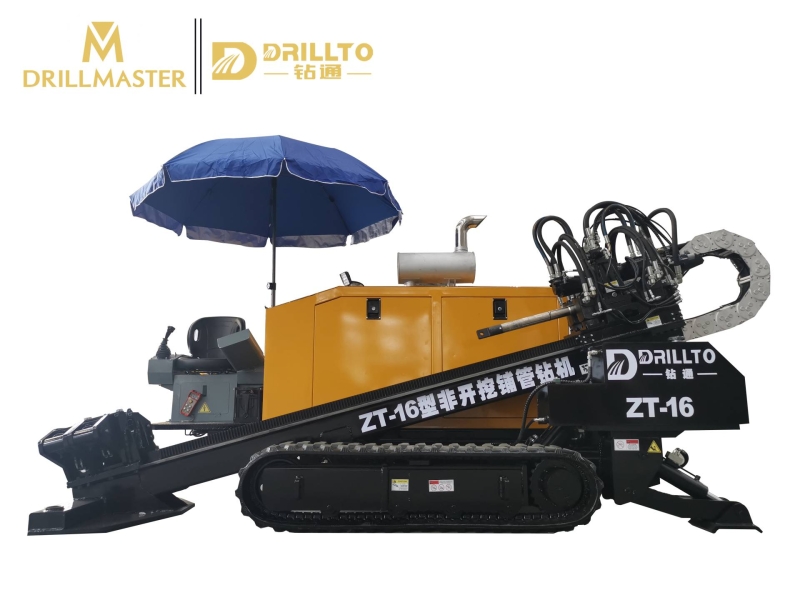

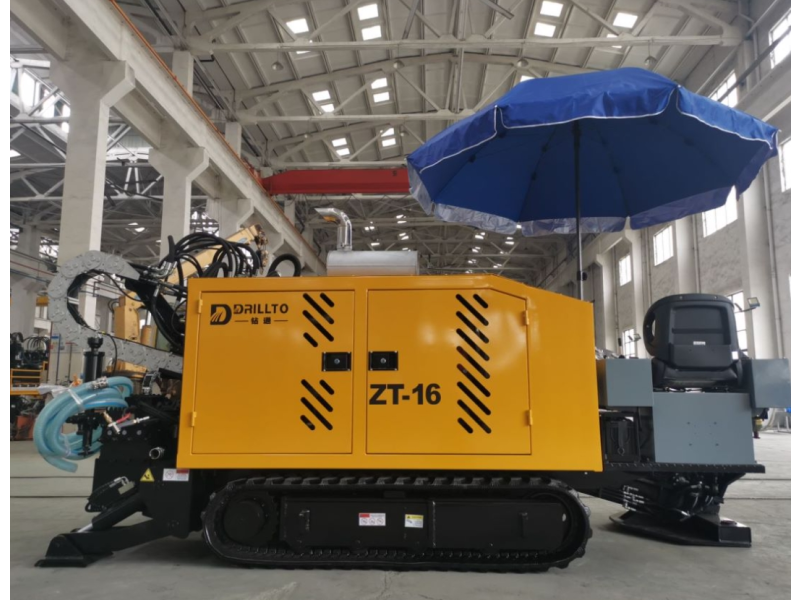

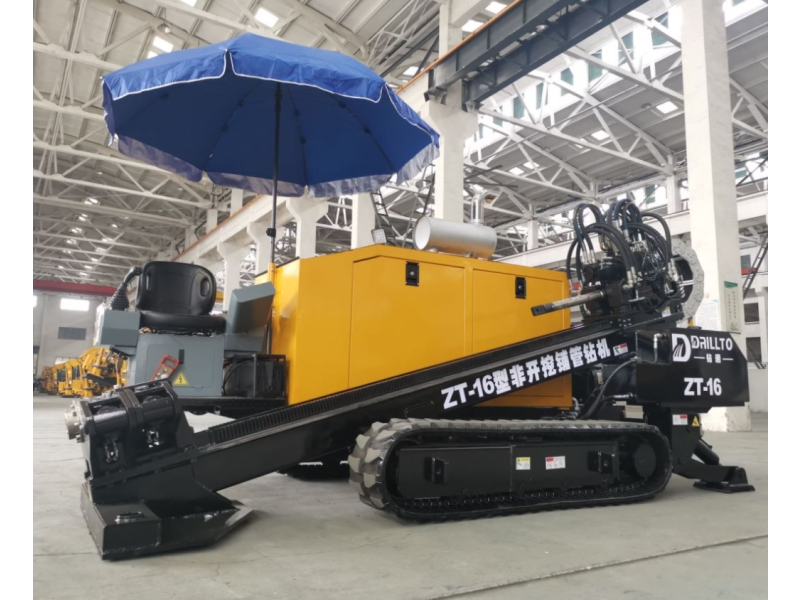

ZT-16

Max torque: 4500N.m
Max pulling/thrusting force: 160kN

Commins engine: 97/2200kW/rpm

Description
The length of ZT-16 drill is only 4.2 meters, compact and short, convenient for transportation. φ60* 2000mm drill rods, stable and reliable, fast drilling for short distance without bending.
Parameters
Model ZT-16
Max torque(N.m) 4500
Rotation speed(rpm) 0-170
Max pulling/thrusting force(kN) 160
Pulling speed(m/min) 0-60
Commins engine(kW/rpm) 97/2200
Max mud pump displacement(L/min) 180
Max mud pump pressure(Mpa) 10
Entry angle(degree) 8-20
Walking speed(km/h) 2.5
Weight(T) 7.5
Dimension(mm) 4200*2000*2300
Rod size(mm) φ60*2000
Reamer size(mm) φ200-500
Advantages
