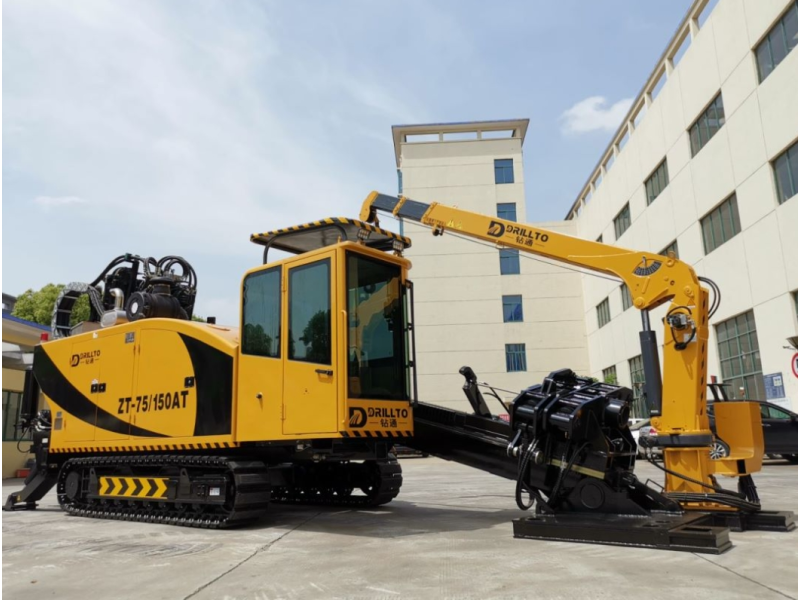

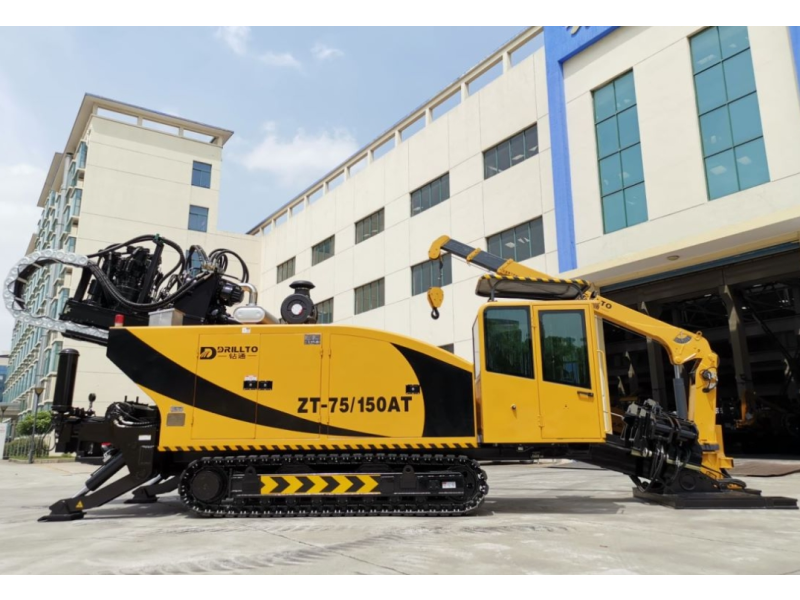

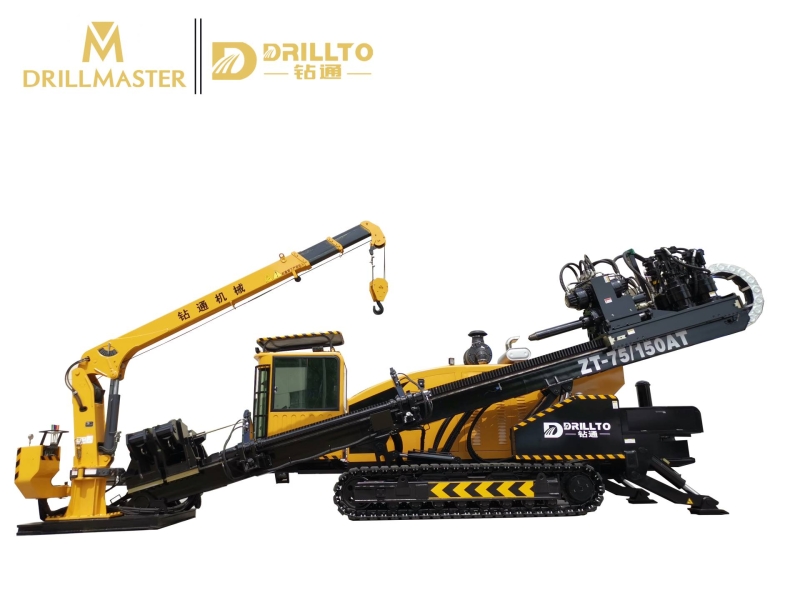

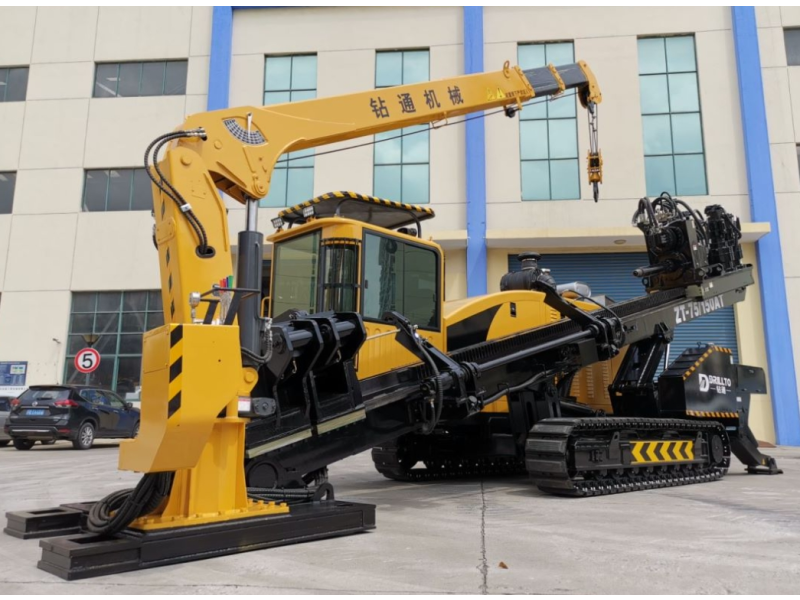

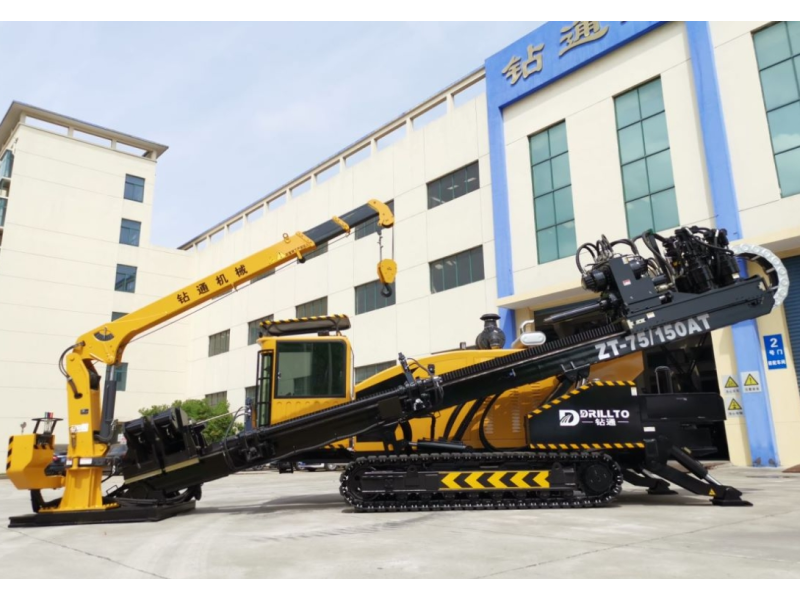

Name: ZT-75/150AT
SKU: 28
Rating: 5 (1027 reviews)

Description

The whole machine performs excellent in all parameters: high speed, high torque, fast thrusting speed, good handling, energy and mud saving and high efficiency, intelligent and convenient. Transfer case increase 15% efficiency.

Parameters

Model	ZT-75/150AT
Max torque for external drilling(N.m)	35000
Max torque for inner drilling(N.m)	4700
Rotation speed for external drilling(rpm)	0-170
Rotation speed for inner drilling(pm)	0-180
Max pulling/thrusting force(kN)	1500
Pulling speed(m/min)	50
Commins engine(kW/rpm)	264/2100
Max mud pump displacement(L/min)	800
Max mud pump pressure(Mpa)	10
Entry angle(degree)	12-22
Walking speed(km/h)	2.5
Weight(kg)	24500
Dimension(mm)	1050025002700
Rod size(mm)	φ102/60*4000
Reamer size(mm)	φ300-1000

Advantages

Dual Poclain motor dual rotary head drive, high efficiency in rock drilling, fast speed, all-round shorten the construction period. Refine the tubing layout to reduce wear and lag.
The application of the four-bar linkage mechanism and big chassis, the construction angle range is wider, the incidence angle is higher, deeper drilling, suitable for flexible construction scheme.

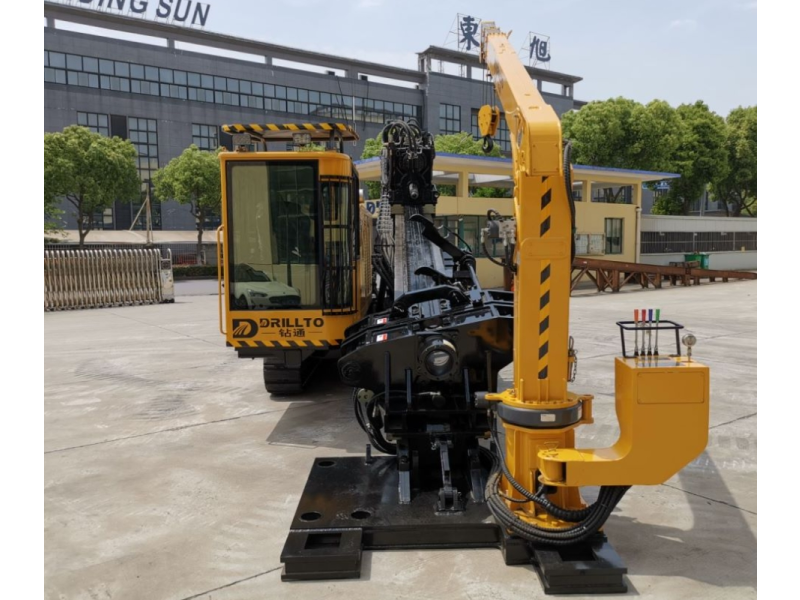

Vicejaw are designed facing cabin, construction big DSE display screen set in the front of cabin,can be adjusted up and down, proper setting of control panel, good line of sight, humanized operation.

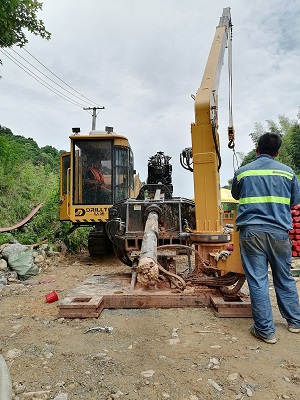

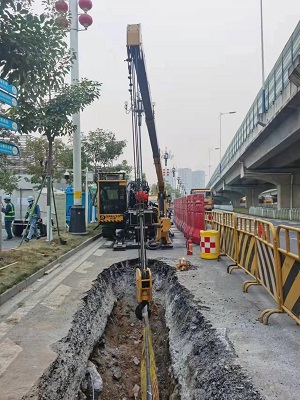

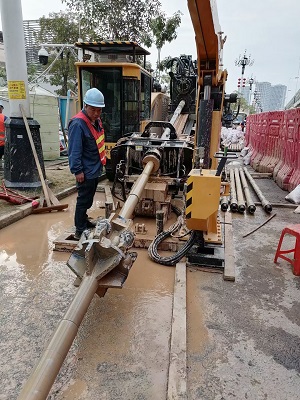

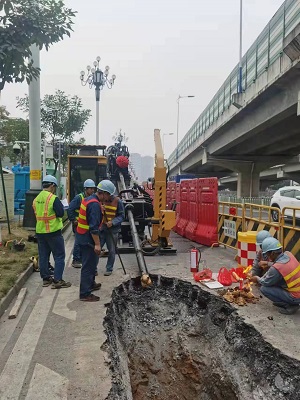

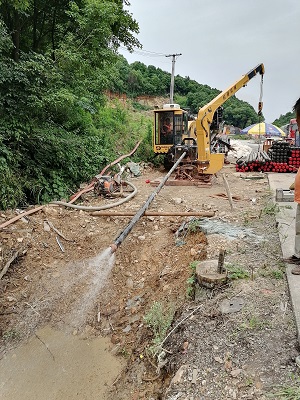

Cases
